LAST SOLD AT ₹ 1,649.00
SKU # 1000085597

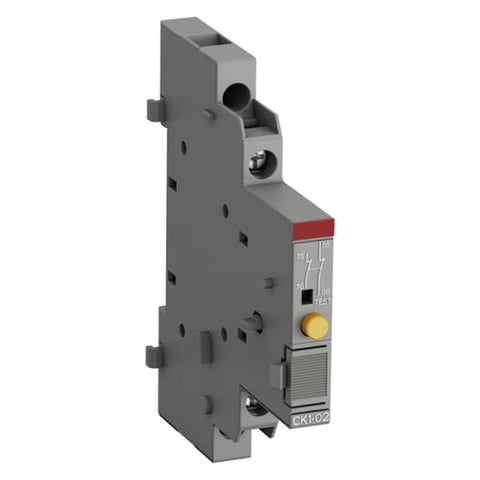

ABB CK1-02 Short-Circuit Signaling Contact 2NC 1SAM301901R1003
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Specification
|
Brand |
ABB |
|
Product Type |
Signal Contact |
|
Product Code |
1SAM301901R1003 |
|
Model |
CK1-02 |
|
Technical |
|
|
Terminal Type |
Screw Terminals |
|
Rated Operational Voltage |
690
V AC |
|
Rated Operational Current AC-15 (Ie) |
(24
V) 6 A |
|
Rated Operational Current DC-13 (Ie) |
|
|
Rated Impulse Withstand Voltage (Uimp) |
Auxiliary Circuit 6 kV |
|
Rated Insulation Voltage (Ui) |
690 V |
|
Degree Of Protection |
IP20 |
|
Electrical Durability |
100000 cycle |
|
Mechanical Durability |
100000 cycle |
|
Connecting Capacity Auxiliary Circuit |
Flexible
with Ferrule 1/2x 0.75 ... 1.5 mm² |
|
Tightening Torque |
Auxiliary Circuit 0.8 ... 1.2 N·m |
|
Wire Stripping Length |
Auxiliary Circuit 8 mm |
|
Recommended Screw Driver |
M3 |
|
Number Of Auxiliary Contacts NO |
0 |
|
Number Of Auxiliary Contacts NC |
2 |
|
Standards |
CSA
22.2 No. 14 |
|
Suitable For |
|
|
Suitable For Product Class |
Manual Motor Starter |
|
Technical UL/CSA |
|
|
Maximum Operating Voltage UL/CSA |
Main Circuit 600 V AC |
|
Connecting Capacity Auxiliary Circuit UL/CSA |
Flexible
1/2x 16-14 AWG |
|
Tightening Torque UL/CSA |
Auxiliary Circuit 7 in·lb |
|
Contact Rating UL/CSA |
B600 |
|
Environmental |
|
|
Ambient Air Temperature |
Operation
-25 ... +60 °C |
|
Resistance To Shock Acc. To IEC 60068-2-27 |
11 ms Pulse 25g |
|
Resistance To Vibrations Acc. To IEC 60068-2-6 |
5g / 3 ... 150 Hz |
|
Note |
for short-circuit alarm, max. 2 pieces |
|
Dimensions |
|
|
Product Net Width |
9 mm |
|
Product Net Height |
90 mm |
|
Product Net Depth / Length |
78 mm |
|
Product Net Weight |
0.035 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Contactors |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
