LAST SOLD AT ₹ 14,093.00
SKU # 1000085617

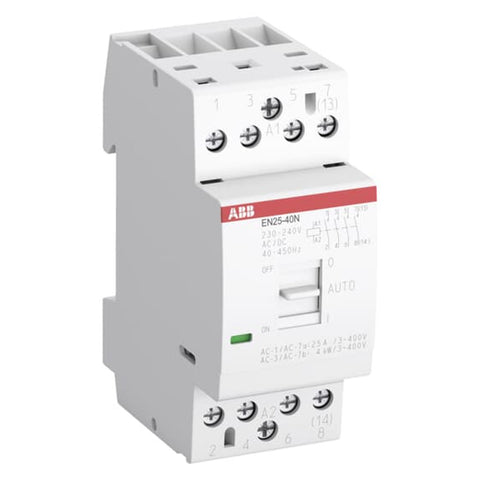

ABB EN25-40N-06 Installation Contactor 1SAE232111R0640
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The EN25..N installation Contactors are used To control single and three-phase loads up To 25 A and can be operated by AC or DC and/or manually
-
These Contactors are made for use in household applications as well as in industrial environments
-
The following benefits are provided:
-
Hum-free operation, low power consumption, integrated overvoltage protection and manual override
-
Various contact combinations and Accessories are available
-
Manual operation is available in 3 states: "On", "Off", "AuTo"
Product Specification
|
Brand |
ABB |
|
Product Type |
Installation Contactor |
|
Product Code |
1SAE232111R0640 |
|
Model |
EN25-40N-06 |
|
Technical |
|
|
Rated Operational Voltage |
Main Circuit 220 V DC, Main Circuit 400 V AC |
|
Rated Control Circuit Voltage (Uc) |
230 ... 240 V |
|
Rated Frequency (f) |
Control Circuit 400 Hz, Control Circuit 50 Hz, Control Circuit 60 Hz, Control Circuit DC, Main Circuit 50 Hz, Main Circuit 60 Hz, Main Circuit DC |
|
Rated Operational Current AC-1 (Ie) |
(NO) 25 A |
|
Rated Operational Current AC-3 (Ie) |
(230 V) Single Phase, NO 9 A (400 V) Three Phase, NO 9 A |
|
Rated Operational Power AC-1 (Pe) |
|
|
Rated Operational Power AC-3 (Pe) |
|
|
Rated Operational Current AC-7a (Ie) |
(NO) 25 A |
|
Rated Operational Power AC-7a (Pe) |
(230
V) Single Phase, NO 5.8 kW |
|
Rated Operational Current AC-7b (Ie) |
(230
V) Single Phase, NO 9 A |
|
Rated Operational Power AC-7b (Pe) |
(230
V) Single Phase, NO 1.3 kW |
|
Recommended Screw Driver |
Control Circuit Pozidriv 1, Main Circuit Pozidriv 1 |
|
Rated Impulse Withstand Voltage (Uimp) |
4 kV |
|
Rated Insulation Voltage (Ui) |
500 V |
|
Connecting Capacity Main Circuit |
Flexible
with Ferrule 1x 1.5 ... 10 mm² |
|
Connecting Capacity Control Circuit |
Flexible
with Ferrule 1x 1 ... 2.5 mm² |
|
Tightening Torque |
Control Circuit 0.9 N·m, Main Circuit 1 N·m |
|
Wire Stripping Length |
Control Circuit 7 mm, Main Circuit 10 mm |
|
Degree Of Protection |
IP20 |
|
Electrical Durability |
AC-1
(NO) 130000 cycle |
|
Mechanical Durability |
1000000 cycle |
|
Number Of Poles |
4 |
|
Number Of Auxiliary Contacts NC |
0 |
|
Number Of Auxiliary Contacts NO |
0 |
|
Number Of Main Contacts NC |
0 |
|
Number Of Main Contacts NO |
4 |
|
Width In Number Of Modular Spacings |
2 |
|
Pollution Degree |
3 |
|
Standards |
IEC/EN
60947-1 |
|
Environmental |
|
|
Ambient Air Temperature |
|
|
Maximum Operating Altitude Permissible |
2000 m |
|
Resistance To Shock Acc. To IEC 60068-2-27 |
11 ms Pulse 15g |
|
Dimensions |
|
|
Product Net Width |
36 mm |
|
Product Net Height |
85 mm |
|
Product Net Depth / Length |
65 mm |
|
Product Net Weight |
0.24 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Contactors |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
