SKU # 1000083913

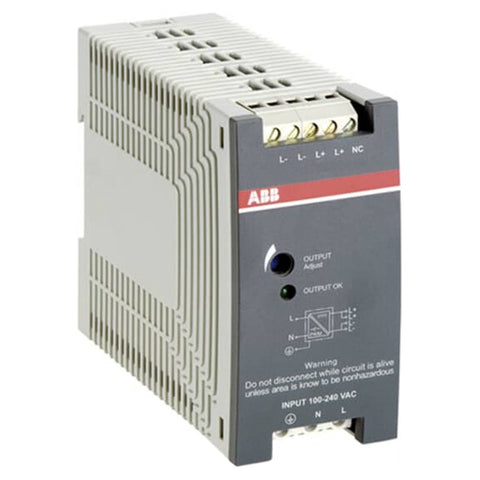

ABB CP-E 24/2.5 Power Supply 1SVR427032R0000
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
CP-E 24/2.5 Power supply In:100-240VAC Out: 24VDC/2.5A
-
The CP-E 24/2.5 is a power supply from the CP-E range
-
The primary switch mode power supply Offers a wide range input Of 85-264 V AC and 90-375 V DC, rated input voltage is 100-240 V AC
-
The rated output power is 60 W, rated output current is 2.5 A at an output voltage Of 24 V DC
-
The output voltage is adjustable within a range Of 24 to 28 V DC
-
The power supply provides a U/I output characteristic and allows parallel operation to enable redundancy
-
A further feature is the signalling output (transistor) for output voltage OK
-
A redundancy unit is available as accessory
Product Specification
|
Brand |
ABB |
|
Product Type |
Power Supply |
|
Product Code |
1SVR427032R0000 |
|
Model |
CP-E 24/2.5 |
|
Technical |
|
|
Function |
Switch mode power supply |
|
Number Of Phases |
1 |
|
Rated Input Voltage (U In ) |
100 ... 240 V AC |
|
Nput Voltage (U In) |
85
... 264 V AC |
|
Rated Frequency Limits |
47 ... 63 Hz |
|
Characteristic Of Output |
U/I characteristic curve |
|
Rated Output Power |
60 W |
|
Output Power |
60 W |
|
Rated Output Voltage |
24 V DC |
|
Output Voltage (U Out) |
24 V DC |
|
Rated Output Current |
2.5 A |
|
Output Current |
2.5 A |
|
Rated Insulation Voltage (U I ) |
Input Circuit / Output Circuit 3 V Input Circuit / PE 2 V |
|
Degree Of Protection |
Housing IP20 Terminals IP20 |
|
Pollution Degree |
2 |
|
Connecting Capacity Input Circuit |
Flexible
with Ferrule 0.2 ... 2.5 mm² |
|
Connecting Capacity Output Circuit |
Flexible
with Ferrule 0.2 .... 2.5 mm² |
|
Tightening Torque |
Input
Circuit 0.6 N·m |
|
Wire Stripping Length |
nput
Circuit 6 mm |
|
Minimum Mounting Distance |
Electrical
Conductive Board, Horizontal 25 mm |
|
Mounting Position |
Position 1 |
|
Mounting on DIN Rail |
TH35-7.5
(35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
|
Standards |
ANSI/ISA-12.12 |
|
Ambient Air Temperature |
Operation
-40 ... +70 °C |
|
Technical UL/CSA |
|
|
Connecting Capacity Nput Circuit UL/CSA |
Rigid 24-14 AWG |
|
Connecting Capacity Output Circuit UL/CSA |
Rigid 24-14 AWG |
|
Tightening Torque UL/CSA |
Input
Circuit 5 in·lb |
|
Electromagnetic Compatibility |
|
|
Electrostatic Discharge (ESD Immunity) Acc. To Ec 61000-4-2 |
Level
4 Air Discharge 15 kV |
|
Radiated Electromagnetic Field Mmunity Acc. To Iec 61000-4-3 |
Level 3 10 V/m |
|
Electrical Fast Transient (Burst Immunity) Acc. To Ec 61000-4-4 |
Level 4 Power Supply Port Signal 4 kV |
|
Surge Immunity Acc. To Ec 61000-4-5 |
Level 3 Line-to-Line 2 kV Level 4 Line-to-Ground 4 kV |
|
Conducted Disturbances Mmunity Acc. To Iec 61000-4-6 |
Level 3 10 V |
|
Electromagnetic Compatibility (EMC) |
Immunity - Class B Emission - Class B |
|
Dimensions |
|
|
Product Net Width |
40.5 mm |
|
Product Net Height |
90 mm |
|
Product Net Depth / Length |
114 mm |
|
Product Net Weight |
0.331 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Power Supplies |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
