SKU # 1000131772

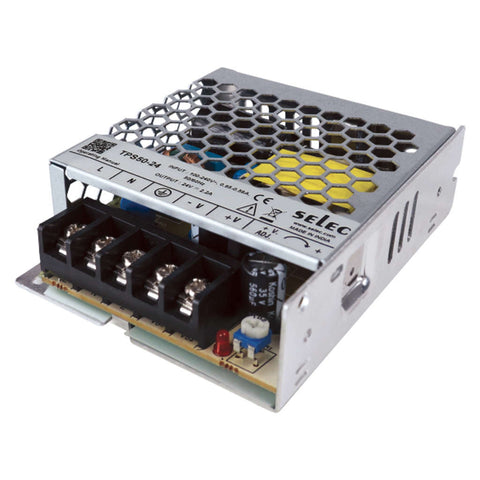

Selec Panel Mount Power Supply 50 W TPS50-24
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Supports 90 - 264 VAC / 127 - 373 VDC
-
Efficiencies up to 86 %
-
40°C to + 70°C Operating Temperature
-
Compact size and 1U low profile
-
Protection against short circuit, overload & overvoltage
-
Cooling by free air convection
Product Specification
| Brand | Selec |
| Product Type | Power Supply |
| Product Model | TPS50-24 |
| Description | 50 W, 24 V / 2.2 A Table Top Power Supply in metal body |
| Input Voltage | 90 - 264 VAC (127- 373 VDC) |
| Frequency Range | 47 - 63 Hz |
| Inrush Current | < 45 Amps; Measured at 230 VAC, 25°C Ambient, Cold start |
| Output Voltage | 24V |
| Output Power | 50 W |
| Voltage Tolerance | ± 1 % |
| Line Regulation | ± 1 % |
| Load Regulation | ± 1 % |
| Turn On Time | < 3 sec ; at full load |
| Hold Up Time | ≥ 60 ms at 230 VAC & ≥ 10 ms at 115 VAC, Full load |
| Rise Time | < 100 ms |
| Overload Protection | > 110 % of rated output current; Hiccup mode; Autorecovery type |
| Output Short Circuit Protection | Hiccup mode when output is shorted; Autorecovery type |
| Operating Temperature | -25°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C, |
| Storage Temperature | -40°C to +85°C |
| Cooling | Natural Convection Cooled |
| Humidity | 5 to 95 % RH, Non condensing |
| Altitude | 2000 m |
| Mounting | Table Top |
| Dimension (L x W x H) | 99 x 82 x 30 mm |
| Weight | < 230 g |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.6 x 9.6 x 6.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | Power Supplies |
| Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com |
| Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: enquiry@selec.com |
| Country Of Origin | India |
