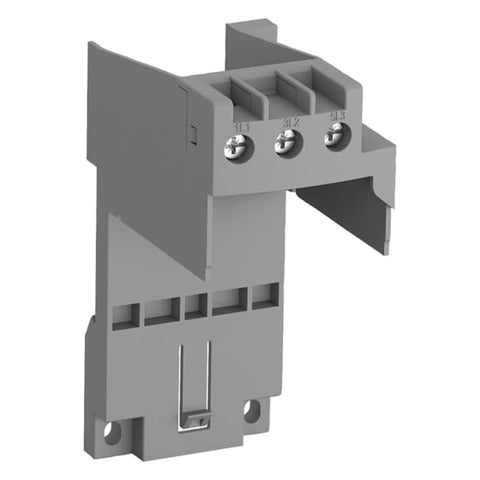

ABB DB19EF Single Mounting Kit For EF19 1SAX101910R1001

ABB DB19EF Single Mounting Kit For EF19 1SAX101910R1001

Visit the ABB Store

₹ 4,219.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Specification

Brand

ABB

Product Type

Mounting Kit

Product Code

1SAX101910R1001

Model

DB19EF

Technical

Suitable For

EF19

Rated Operational Voltage

Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC

Rated Operational Current (Ie)

18.9 A

Rated Operational Current AC-3 (Ie)

18.9 A

Rated Frequency (f)

Main Circuit 50 Hz
Main Circuit 60 Hz

Rated Impulse Withstand Voltage (Uimp)

Main Circuit 6 kV

Rated Insulation Voltage (Ui)

690 V

Number of Poles

3

Number of Protected Poles

3

Pollution Degree

3

Connecting Capacity Main Circuit

Flexible with Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible 1x 0.75 ... 2.5 mm²
Rigid 1x 1 ... 4 mm²

Tightening Torque

Main Circuit 0.8 ... 1.5 N·m

Wire Stripping Length

Main Circuit 12 mm

Recommended Screw Driver

Pozidriv 2

Standards

IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1

Technical UL/CSA

Maximum Operating Voltage UL/CSA

Main Circuit 600 V AC

Connecting Capacity Main Circuit UL/CSA

Flexible 1/2x 18-10 AWG
Stranded 1/2x 18-10 AWG

Tightening Torque UL/CSA

Main Circuit 7 ... 13 in·lb

Dimensions

Product Net Width

45 mm

Product Net Height

103.5 mm

Product Net Depth / Length

67.3 mm

Product Net Weight

0.046 kg

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Mounting Kit

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
