LAST SOLD AT ₹ 6,678.00

SKU # 1000085429

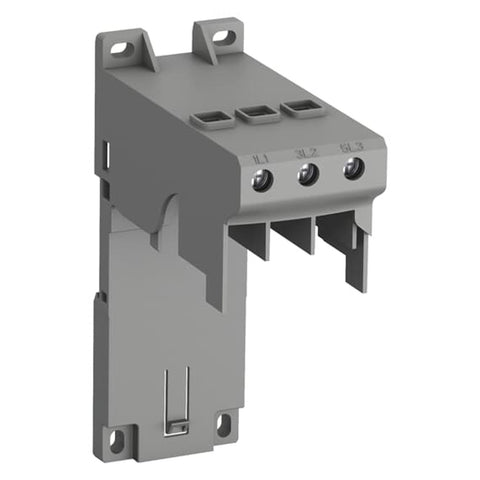

ABB DB45EF Single Mounting Kit For EF45 1SAX201910R0001

ABB DB45EF Single Mounting Kit For EF45 1SAX201910R0001

Visit the ABB Store

₹ 6,678.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Specification

Brand

ABB

Product Type

Mounting Kit

Product Code

1SAX201910R0001

Model

DB45EF

Technical

Suitable For

EF45

Rated Operational Voltage

Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC

Rated Operational Current (Ie)

18.9 A

Rated Operational Current AC-3 (Ie)

18.9 A

Rated Frequency (f)

Main Circuit 50 Hz
Main Circuit 60 Hz

Rated Impulse Withstand Voltage (Uimp)

Main Circuit 6 kV

Rated Insulation Voltage (Ui)

690 V

Number of Poles

3

Connecting Capacity Main Circuit

Flexible with Ferrule 1x 2.5 ... 10 mm²
Flexible with Insulated Ferrule 1x 2.5 ... 10 mm²
Flexible 1x 2.5 ... 10 mm²
Rigid 1x 2.5 ... 16 mm²

Tightening Torque

Main Circuit 0.8 ... 1.5 N·m

Wire Stripping Length

Main Circuit 15 mm

Recommended Screw Driver

Pozidriv 2

Standards

IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1

Technical UL/CSA

Connecting Capacity Main Circuit UL/CSA

Flexible 1x 14-6 AWG
Stranded 1x 14-6 AWG

Tightening Torque UL/CSA

Main Circuit 7 ... 13 in·lb

Dimensions

Product Net Width

45 mm

Product Net Height

130 mm

Product Net Depth / Length

98 mm

Product Net Weight

0.1 kg

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Mounting Kit

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
