LAST SOLD AT ₹ 3,420.00
SKU # 1000022831

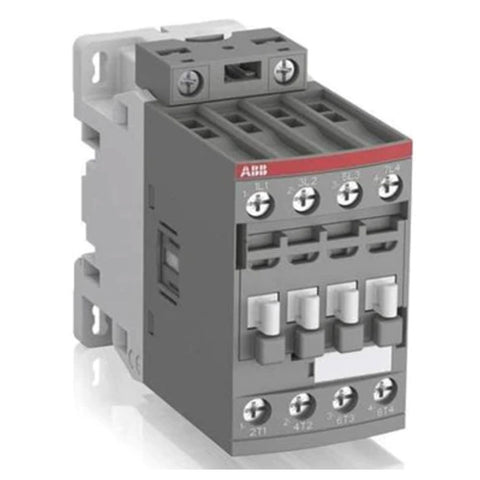

ABB DC Type Contactor Four Pole AF26-40-00
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
AF26 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads
-
AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max
-
Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations
-
One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors
-
The AF... series 4-pole contactors are of the block type design
-
Main poles and auxiliary contact blocks: 4 N.O. main poles, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1)
-
Number of Main Contacts NO : 4
-
Number of Main Contacts NC : 0
-
Number of Auxiliary Contacts NO : 0
-
Number of Auxiliary Contacts NC : 0
-
Standards : IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14
-
Rated Operational Voltage : Main Circuit 690 V
-
Rated Frequency (f) : Main Circuit 50 / 60 Hz
-
Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 55 A
-
Maximum Electrical Switching Frequency : AC-1 600 cycles per hour
-
Rated Impulse Withstand Voltage (Uimp) : 6 kV
-
Maximum Mechanical Switching Frequency : 3600 cycles per hour
-
Product Net Width : 45 mm
-
Product Net Depth / Length : 101 mm
-
Product Net Height : 86 mm
-
Product Net Weight : 0.36 kg
Product Specification
|
Type |
Product Id |
Rated Voltage |
|
AF26-40-00 |
1SBL237201R1100 |
24-60V 50/60Hz, 20-60V DC |
|
AF26-40-00 |
1SBL237201R1200 |
48-130V 50/60Hz, 48-130V DC |
|
AF26-40-00 |
1SBL237201R1300 |
100-250V 50/60Hz, 100-250V DC |
|
AF26-40-00 |
1SBL237201R1400 |
250-500V 50/60Hz, 250-500V DC |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
4 Pole Contactors |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
