Available

SKU # 1000022875

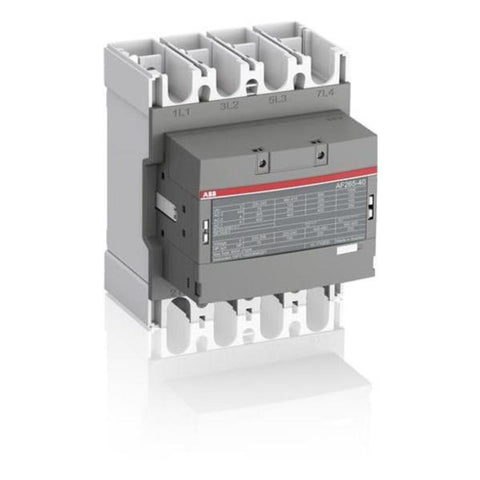

ABB DC Type Contactor Four Pole AF265-40-00

ABB DC Type Contactor Four Pole AF265-40-00


₹ 32,946.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Operated with wide control voltage range 24-60 V, 50 and 60 Hz, 20-60 V DC

  • Number of Main Contacts NO : 4

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 0

  • Number of Auxiliary Contacts NC : 0

  • Rated Operational Voltage : Main Circuit 1000 V

  • Rated Frequency (f) : Main Circuit 50 Hz

  • Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 400 A

  • Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1 : 8 x Ie AC-3

  • Rated Making Capacity AC-3 acc. to IEC 60947-4-1 : 10 x Ie AC-3

  • Short-Circuit Protective Devices : gG Type Fuses 630A

  • Rated Impulse Withstand Voltage (Uimp) : Main Circuit 8 kV

  • Mechanical Durability : 5 million

  • Maximum Mechanical Switching Frequency : 300 cycles per hour

  • Terminal Type : Main Circuit: Bars

  • Product Net Width : 184 mm

  • Product Net Depth / Length : 180 mm

  • Product Net Height : 225 mm

  • Product Net Weight : 5.53 kg

Product Specification

Type

Product Id

Rated Voltage

AF265-40-00-11

1SFL547102R1100

24-60V

AF265-40-00-12

1SFL547102R1200

48-130V

AF265-40-00-13

1SFL547102R1300

100-250V

AF265-40-00-14

1SFL547102R1400

250-500V
