LAST SOLD AT ₹ 62,040.00
SKU # 1000022883

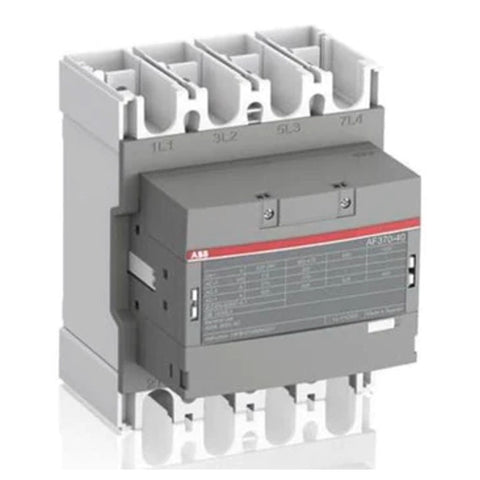

ABB DC Type Contactor Four Pole AF370-40-00
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Operated with wide control voltage range 24-60 V, 50 and 60 Hz, 20-60 V DC
-
Number of Main Contacts NO : 4
-
Number of Main Contacts NC : 0
-
Number of Auxiliary Contacts NO : 0
-
Number of Auxiliary Contacts NC : 0
-
Rated Operational Voltage : Main Circuit 1000 V
-
Rated Frequency (f) : Main Circuit 60 Hz
-
Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 525 A
-
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1 : 8 x Ie AC-3
-
Rated Making Capacity AC-3 acc. to IEC 60947-4-1 : 10 x Ie AC-3
-
Short-Circuit Protective Devices : gG Type Fuses 630A
-
Rated Impulse Withstand Voltage (Uimp) : Main Circuit 8 kV
-
Mechanical Durability : 5 million
-
Maximum Mechanical Switching Frequency : 300 cycles per hour
-
Terminal Type : Main Circuit: Bars
-
Product Net Width : 184 mm
-
Product Net Depth / Length : 180 mm
-
Product Net Height : 225 mm
-
Product Net Weight : 5.53 kg
Product Specification
|
Type |
Product Id |
Rated Voltage |
|
AF370-40-00-11 |
1SFL607102R1100 |
24-60V |
|
AF370-40-00-12 |
1SFL607102R1200 |
48-130V |
|
AF370-40-00-13 |
1SFL607102R1300 |
100-250V |
|
AF370-40-00-14 |
1SFL607102R1400 |
250-500V |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
4 Pole Contactors |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
