Available

SKU # 1000022855

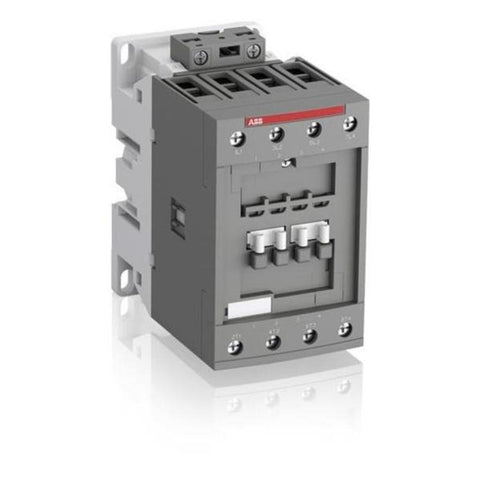

ABB DC Type Contactor Four Pole AF52-40-00

ABB DC Type Contactor Four Pole AF52-40-00


₹ 9,163.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • AF40 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads

  • AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max

  • Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations

  • One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors

  • The AF... series 4-pole contactors are of the block type design

  • Main poles and auxiliary contact blocks: 4 N.O. main poles, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1)

  • Number of Main Contacts NO : 4

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 0

  • Number of Auxiliary Contacts NC : 0

  • Standards : IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14

  • Rated Operational Voltage : Main Circuit 690 V

  • Rated Frequency (f) : Main Circuit 50 / 60 Hz

  • Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 105 A

  • Maximum Electrical Switching Frequency : AC-1 600 cycles per hour

  • Rated Impulse Withstand Voltage (Uimp) : 6 kV

  • Maximum Mechanical Switching Frequency : 3600 cycles per hour

  • Product Net Width : 70 mm

  • Product Net Depth / Length : 113.5 mm

  • Product Net Height : 125.5 mm

  • Product Net Weight : 1.21 kg

Product Specification

Type

Product Id

Rated Voltage

AF52-40-00

1SBL367201R1100

24-60V 50/60Hz, 20-60V DC

AF52-40-00

1SBL367201R1200

48-130V 50/60Hz-DC

AF52-40-00

1SBL367201R1300

100-250V 50/60Hz-DC

AF52-40-00

1SBL367201R1400

250-500V 50/60Hz-DC
