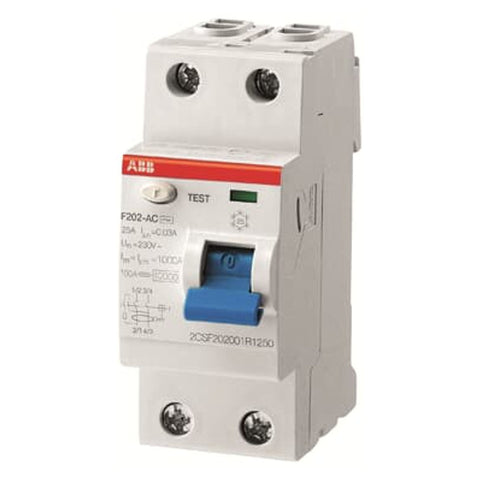

ABB F200 Series RCCB DP APR Type 30mA
ABB F200 Series RCCB DP APR Type 30mA 7214062600386
PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
The RCCBs F200 series assures protection to people and installations against fault current to earth
-
A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications
Product Specification
|
Brand |
ABB |
|
Product Type |
RCCB |
|
Series |
F200 |
|
Model |
F202 A |
|
Code | Rated Current |
2CSF202401R1800 | 80A 2CSF202401R1900 | 100A |
|
Technical |
|
|
Rated Residual Current |
30 mA |
|
Standards |
IEC/EN 61008, UL 1053 |
|
Type of Residual Current |
A type |
|
Rated Voltage (Ur) |
230 V |
|
Rated Operational Voltage |
230 V |
|
Rated Insulation Voltage (Ui) |
500 V |
|
Rated Impulse Withstand Voltage (Uimp) |
4 kV |
|
Input Voltage Type |
AC |
|
Rated Conditional Short-Circuit Current (Inc) |
10 kA |
|
Rated Service Short-Circuit Breaking Capacity (Ics) |
1 kA |
|
Maximum Surge Current |
3 kA |
|
Leakage Current Type |
A |
|
Rated Frequency (f) |
50 / 60 Hz |
|
Power Loss |
80A-at Rated Operating Conditions per Pole 4.5 W 100A-at Rated Operating Conditions per Pole 6.5 W |
|
Power Supply Connection |
Arbitrary |
|
Electrical Endurance |
10000 cycle |
|
Number Of Poles |
2 |
|
Operating Characteristic |
Instantaneous (APR High Immunity) |
|
Mounting Type |
DIN rail |
|
Connecting Capacity |
Busbar
10 mm² |
|
Rated Cross-Section |
4
- Multi-Wired 0...35 mm² |
|
Environmental |
|
|
Ambient Temperature |
-25...55 °C |
|
Ambient Air Temperature |
Operation -25...55 °C |
|
Degree Of Protection |
IP2X |
|
Pollution Degree |
2 |
|
Technical UL/CSA |
|
|
Short-Circuit Current Rating (SCCR) |
0.03 A |
|
Maximum Operating Voltage UL/CSA |
277 V AC |
|
Dimensions |
|
|
Width In Number Of Modular Spacings |
2 |
|
Product Net Width |
0.035 m |
|
Product Net Height |
0.085 m |
|
Product Net Depth / Length |
0.069 m |
|
Product Net Weight |
0.200 kg |
|
Built-In Depth (t 2 ) |
69 mm |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
2 Pole RCCBs |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
