1000083564

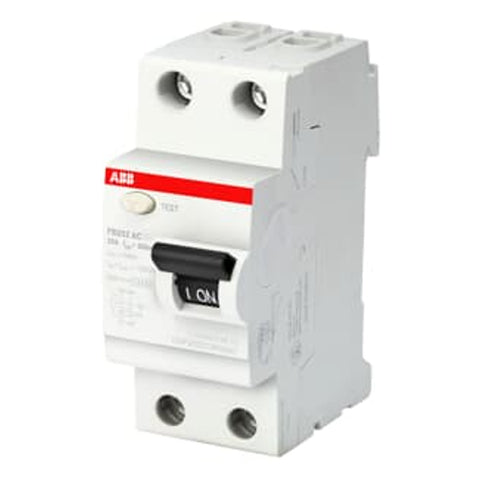

ABB FB200 Series Residual Current Circuit Breaker 2P 63A
ABB FB200 Series Residual Current Circuit Breaker 2P 63A 7152091758786PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Specification
Brand |
ABB |
Product Type |
RCCB |
Series |
FB200 |
Model |
FB202 AC |
Rated Residual Current | Product Code |
30mA | 1SYF202015R1630 100mA | 1SYF202015R2630 300mA | 1SYF202015R3630 |
Technical |
|
Standards |
IEC 61008; IS12640-1:2008 |
Type Of Residual Current |
AC type |
Rated Operational Voltage |
240 V AC |
Rated Insulation Voltage (U I ) |
500 V |
Rated Impulse Withstand Voltage (U Imp ) |
4 kV |
Dielectric Test Voltage |
2.5 kV |
Rated Current (I N) |
63 A |
Rated Conditional Short- Circuit Current (Inc ) |
10 kA |
Rated Frequency (f) |
50 Hz |
Electrical Endurance |
10000DC cycle |
Mechanical Endurance (Nendu) |
20000 cycle |
Number Of Poles |
2 |
Tightening Torque |
2.8 N·m |
Actuator Type |
Toggle |
Actuator Marking |
I / O |
Recommended Screw Driver |
Pozidriv 2 |
Remarks |
Protection degreeterminals: IP20; with housing IP40 |
Environmental |
|
Ambient Air Temperature |
Operation -5 ... +40 °C Storage -40 ... +70 °C |
Environmental Conditions |
28 cycle 55°C @ 90-96% 25°C @ 95-100% |
Dimensions |
|
Product Net Width |
35mm |
Product Net Height |
85mm |
Product Net Depth / Length |
69mm |
Product Net Weight |
0.2 kg |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
2 Pole RCCBs |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
