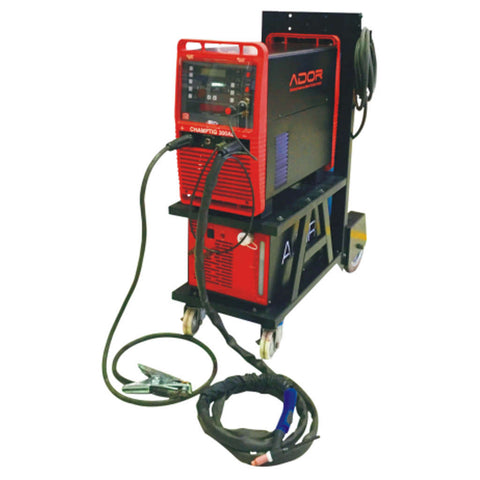

Ador Welding Machine CHAMPTIG 300 AD

Ador Welding Machine CHAMPTIG 300 AD


₹ 298,540.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

General Features

  • Indigenous Inverter Based Ac/Dc Mixed Pulsed Tig Welding System

  • Arge Input Supply Voltage Range With Under/Over Voltage And Single Phase Protection

  • Higher Efficiency & Power Factor

  • Ower Power Consumption

  • Light Weight And Compact Tig Welding System

  • Latest Pwm Inverter Technology

  • In Built Spot TIG Welding Facility, Ac/Dc As We As Mixed Tig Welding Facility. In Built Pulse Tig Welding

  • Controls With Independent Settings Of A Parameters From Front Panel. Optionaly Welding Current

  • Variation Possible By Using Remote Control (HAND Held) Or Foot Control Regulator

  • Cleaning width Control In Ac Tig Welding Enabes User To Adjust Oxide Cleaning as We As Penetration Of Weld Pudde According To His Choice

  • Constant Current Characteristics Irrespective Of Arc Length Variation

  • High Efficiency (? 82%)

  • Smooth and Stable Arc With Spatter-less Welding

Warranty

One year from the date of commissioning. ADOR Welding Limited warrants that a new equipment Sold from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship and will perform in full accordance With applicable specifications.

Product Specifications

Parameters

Unit

Value

Input

Supply Voltage, Phase, Frequency

Volts, Ac, Hz

415 v +15% -10%, 3Phase, 50/60

Max Input KVA at 415 V supply


MMA Mode

TIG Mode

100% Duty Cycle

KVA

7

7.5

60% Duty Cycle

10

11

Power Factor


Upto 0.92

Efficiency


Upto 82

Output

Open Circuit Voltage at 415V Input supply

Volts Dc

75 V Dc +/- 3 V

Welding Current Range

Amps



Welding Current at 40 degree C and 10 Minutes Cycle

Ac TIG Mode 20 – 300, Dc TIG Mode 10 - 300

MMA Mode 50 - 250

60% Duty Cycle

TIG Mode 300

MMA Mode 250

100% Duty Cycle

TIG Mode 230

MMA Mode 195

General

Remote controller

10 meter

Provide as Optional or current settings

Foot Switch control

10 meter


Provide as Optional or current settings

Protections


Over Voltage, Under Voltage, Single Phasing, Over Temprature.

Front Panel functions


MMA/TIG Selection switch

2T/4T/SPOT/Cycle Selection switch

Dc+/Dc-/Ac Welding method Selection switch

Gas check switch

Pulse/Normal Mode Selection switch

HF ON / HF OFF Selection switch

Normal Foot Switch Selection switch

Menu Switch for a selections ike Gas pre flow, Gas postflow time, Up slope time, Down slope time, Pulse Current, Crater Current, Cleaning for Ac, Ac Frequency, Offset, Pulse width Spot time, Pulse Frequency as per the selected mode of operation.

Torch switch Connector.

Foot Switch Connector.

Remote Connector.

Gas Out

Cam – lock Output Connectors.

Mains On Green Colour Indication.

Trip Red ED Indicates machine is under protection modr

Water / Gas Cooled Selection Switch

Encoder for selected parameter value increament / Decreament

Cooling

Type

Forced Air

Ambient Trmprature Rating

C

40

Class Of Insulation


H

Degree of Protection


IP23

Dimensions LxWxH (Without handle)

mm

650x425x515

Weight

Kg

50

TIG Welding Parameter Settings

Parameter

Unit

Value

Gas Preflow time

Sec

0 - 5

Start Current

Amp

5 - 300

Current Up Slope Time

Sec

0 - 10

Base Current

A

5 - 300

Pulse Current

A

5 - 300

Pulse width

%

10 – 90 of width of Pulse Current

Pulse Freequency

Hz

0.5 - 500

Current Down Slope Time

Sec

0 - 10

Crater Current

A

5 - 300

Gas Postflow Time

Sec

0.1 - 20

Spot Time

Sec

1 - 10

Cleaning control

%

(-40) - (+40)

Ac Freequency control


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

TIG Welding Machine

Manufacturer Details

Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236

Packer Details

Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236

Country of Origin

India
