LAST SOLD AT ₹ 148,560.82

SKU # 1000003267

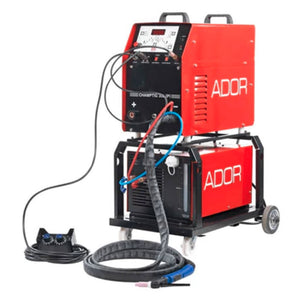

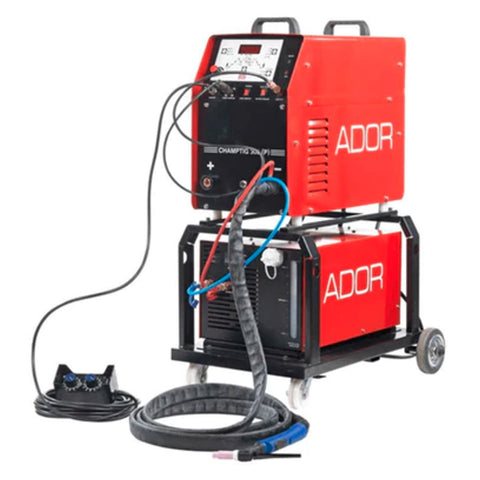

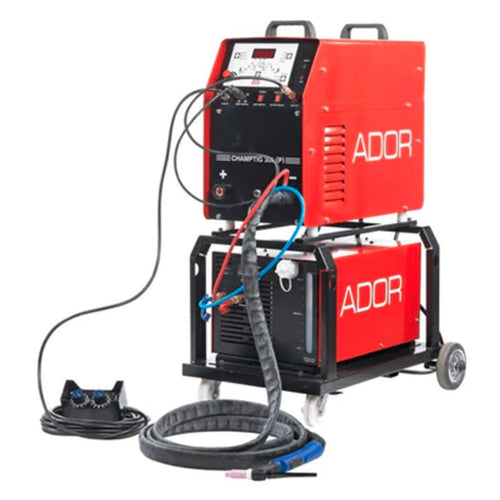

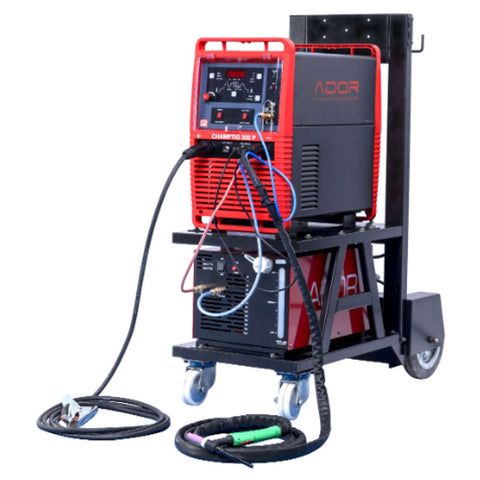

Ador Welding Machine CHAMPTIG 300P (with Water cooling unit)

Ador Welding Machine CHAMPTIG 300P (with Water cooling unit)


₹ 148,560.82

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

General Features

  • The new word Class inverter based Pulse TIG DC Welder

  • Three phase inverter based, High efficiency and High Power Factor Pulse TIG/ MMA DC Welder

  • Usefull for wide variety of material types and thickness

  • Full featured TIG controls possible

  • Power source With Built in HF ignition

  • Intelligent protection over/under Voltage, over current / temperature

  • Option of water cooled Torch With Water Cooling Unit available

Salient Features

  • Latest PWM inverter technology

  • IGBT based

  • High efficiency (>83%)

  • Smooth and Stable arc With spatter-less Welding

  • HF start ignition

  • Pulse TIG for precision Welding DC TIG

Warranty

One year from the date of purchase. ADOR Welding Limited warrants that a new equipment Sold from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship and will perform in full accordance With applicable specifications.

Product Specifications

Technical Specifications

Unit

Champtig 300p

Input

Voltage

Volts.

415 , +15%, -10%

Phase

No.

3

Frequency

Hz

50/60



MMA MODE

TIG MODE

Efficiency at 100 % Duty Cycle

%

82

77

Power Factor at 100% Duty Cycle

OSØ C

0.93

0.93

Input KVA

at 100% duty Cycle

KVA

7.5

7

at No Load

KVA

0.19

0.19

OUTPUT




Open Circuit Voltage

Volts

70



MMA MODE

TIG MODE

Welding Current Range

Amps


Welding Current


50-250

5-300

at 100% duty Cycle

Amps

195

230

at 60% duty Cycle ( 10Min Cycle)

Amps

250

300

Pulse TIG Parameters

Duty Ratio

%

10 - 90

Pulse Frequency

Hz

0.5 - 10

Base Current

Amps

5 - 90% of IPulse current

Pulse Current ( IPulse)

Amps

5 - 300

General

Start current

Amps

5 - 300

Current up slope time

sec

0 - 10

Current down slope control

sec

0 - 10

Pre-Flow

sec

0-5

Post-Flow

sec

1 - 20

Crater current

Amps

5-300

Current / Voltage Display

-

7 –Segment ED Display for Current & Other parameters

Ingress Protection

Class

IP23

Cooling

Type

Forced Air

Insulation

Class

H

Welding Output Terminals

-

Camlock connections

Dimensions Length

mm

610

Width

mm

295

Height

mm

480

Weight

Kg

38

Water Cooling Unit

Input supply Voltage (AC)

Volts

230

Phase

-

1

Frequency

Hz

50/60

Water Reservoir Capacity

iters
