LAST SOLD AT ₹ 84,570.00
SKU # 1000096951

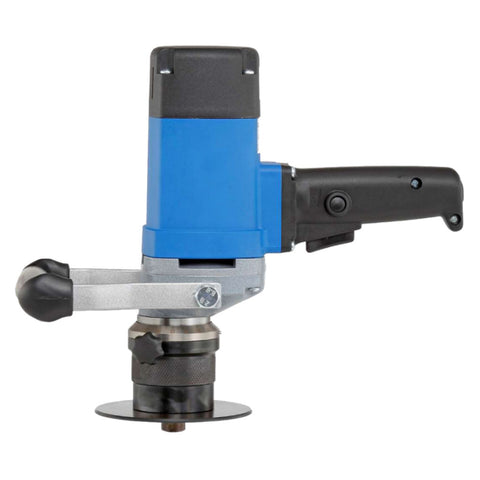

BDS EKF Series EKF 450.3 Chamfering Machine 1500W
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The EKF 450.3 Plate Chamfering Machine is designed to bevel 45° weld seams on steel, stainless, nonferrous metals, brass, and plastics
-
Ideal for the following applications: Moldmaking, Boiler and process plant construction (prepare weld seams on heat exchangers), Mechanical engineering (deburr machine parts, chamfer edges to protect against paint peeling and create visible edges), Sheet metal (deburr cut edges)
-
EKF 450.3 is equipped with a new generation milling head consisting of 3 triangular shaped carbide inserts which can be used from three sided
Product Specification
Brand |
BDS |
Product Type |
Chamfering Machine |
Model |
EKF 450.3 |
Series |
EKF |
Chamfer Angle |
45° |
Chamfer Width |
0-6 mm |
Cutter Type |
ZFR 450.3 |
Milling Tool |
Screw-in milling cutter with three carbide inserts |
Voltage |
220-240 V or 110-125 V/50 – 60 Hz |
Moto Output |
1500 W |
Speed |
6000 RPM |
Insert Article Nr. |
SHM 200 |
Feed |
Manual |
Protection Type |
IP 20 |
Includes |
Machine
EKF 450 |
Dimensions (LxBxH) |
310 x 295 x 138 mm |
Weight |
4.6 kg |
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Chamfering Machines |
Manufacturer Details |
BDS Maschinen GmbH Martinstrasse 108 41063 - Mönchengladbach Germany |
Packer Details |
BDS Machines Pvt. Ltd. Plot 40, Surekha, Prithviraj Nagar, Gadia Vihar, Aurangabad, Maharashtra 431005 |
Country of Origin |
Germany |
