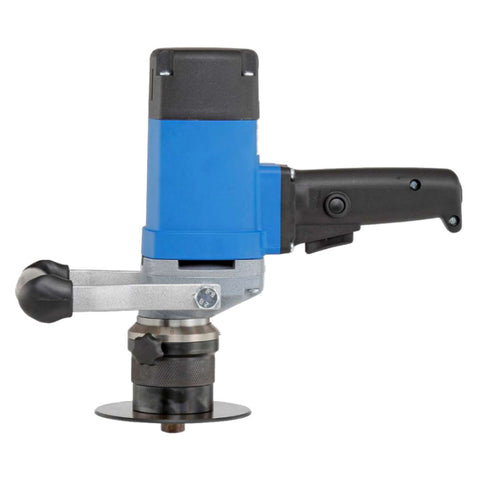

BDS EKF Series EKF 452.3 Chamfering Machine 2.5 mm 1500W

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
The EKF 452.3 Radius Chamfering Machine is a lightweight machine
-
Due to its handy, compact design, the machine can be used on straight edges, internal and external radii and for drill holes from diameter 22 mm
-
The fine adjustment allows slight chamfers for deburring up to the preparation of welding seams
-
Three milling cutters with a chamfering angle of 45°, optionally 30° or a radius of 2.5 mm are available
-
The EKF 452.3 is designed for chamfering 2.5 mm Radii
Product Specification
Brand |
BDS |
Product Type |
Chamfering Machine |
Model |
EKF 452.3 |
Series |
EKF |
Chamfer Angle |
Radius 2.5 mm |
Chamfer Width |
Radius 2.5 mm |
Cutter Type |
ZFR 452.3 |
Milling Tool |
Screw-in milling cutter with three carbide inserts |
Voltage |
220-240 V or 110-125 V/50 – 60 Hz |
Moto Output |
1500 W |
Speed |
6000 RPM |
Insert Article Nr. |
SHM 202 |
Feed |
Manual |
Protection Type |
IP 20 |
Includes |
Machine
EKF 452 |
Dimensions (LxBxH) |
310 x 295 x 138 mm |
Weight |
4.6 kg |
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Chamfering Machines |
Manufacturer Details |
BDS Maschinen GmbH Martinstrasse 108 41063 - Mönchengladbach Germany |
Packer Details |
BDS Machines Pvt. Ltd. Plot 40, Surekha, Prithviraj Nagar, Gadia Vihar, Aurangabad, Maharashtra 431005 |
Country of Origin |
Germany |
