SKU # 1000139345

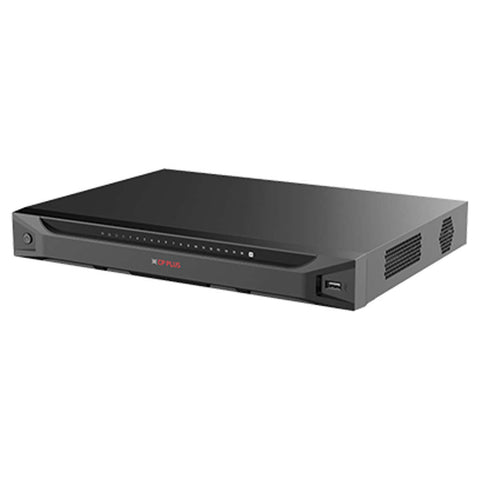

CP Plus 16 Channel Network Video Recorder CP-UNR-4K4162-V4
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Up to 16 channel IP camera input
-
Max. decoding capability: 8 × 1080p@30 fps, 2 × 8 MP@30 fps
-
Smart Instastream/H.265/H.264 /MJPEG
-
Up to 12Mp resolution preview and playback
-
Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth
-
Support 2 SATA HDDs up to 20TB, 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
-
HDMI / VGA simultaneous video output
-
Support Multi-brand network cameras
-
ONVIF Version 2.4 conformance
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS, KVMS Pro
-
Functions
-
Instastream
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP Plus help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP Plus gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
KVMS Pro
-
The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is released with the surveillance hardware and exclusively supports CP Plus devices
-
Smart Motion Detection (SMD Plus) By Camera
-
CP Plus has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
NVR |
|
Product Model |
CP-UNR-4K4162-V4 |
|
Processor |
Industrial-grade processor |
|
Operating System |
Embedded Linux |
|
IP Camera Input |
16 channel |
|
User Interface |
Web, Local GUI |
|
AI By Camera |
Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
|
AI By Recorder |
SMD Plus |
|
Perimeter Performance Of AI By Camera |
6 channels |
|
Video Output |
1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
Face Attributes |
Gender, age group, glasses, expressions, face mask, beard |
|
SMD Plus By NVR |
4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
|
SMD Plus By Camera |
6 channels |
|
Face Recognition Performance Of AI Camera |
6 channels |
|
Resolution |
12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF |
|
Network Bandwidth |
AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
|
Multi Screen Preview |
Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16 |
|
Decoding Capability |
AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4- channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1- channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps |
|
Record Mode |
General, motion detection; intelligent; alarm |
|
Video Compression |
H.265; Smart H.264+; H.264 |
|
Encode Strategy |
Smart Instastream; |
|
Audio Compression |
G.711a; G.711u; PCM; G726 |
|
Audio Input |
1-channel RCA |
|
Audio Output |
1-channel RCA |
|
Alarm Input |
4 channels |
|
Alarm Output |
2 channels (1-channel 12 V 1 A output) |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Disk Group |
Support |
|
Disk Interface |
2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature |
|
General Alarm |
Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
|
Anomaly Alarm |
Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cyber-security exception |
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen |
|
Intelligent Alarm |
Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
|
Alarm Linkage |
Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; emai |
|
Recording Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|
Face Detection Performance |
6 ch |
|
Browser |
Chrome; IE; Safari; Edge; Firefox |
|
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
|
Multi-Channel Playback |
Up to 16 channels |
|
Playback |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom |
|
Playback Function |
Instant playback, general playback, event playback, tag playback, smart playback |
|
Backup Mode |
USB device and network |
|
Interface Ports |
1 HDMI, 1 VGA, 2 USB2.0, 1 RJ45 |
|
Ethernet |
1 RJ-45 port (10/100M/1000M) |
|
Protocols |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
|
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
|
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
|
Operating Humidity |
10%–93% (RH), non-condensing |
|
Power Supply |
12 VDC, 4 A |
|
Power Consumption |
Total output of NVR is <10 W(without HDD) |
|
Dimension |
375 × 282.9 × 53 mm |
|
Weight |
1.49 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
37.5 x 28.2 x 5.3 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1.5 kg |
|
Generic Name |
16 Channel NVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
