SKU # 1000139343

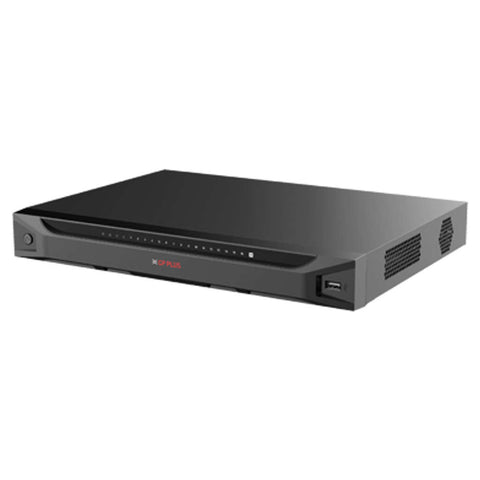

CP Plus 16 Channel Network Video Recorder Without HDD CP-UNR-4K2162-V3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Up to 16 Channel IP Camera input
-
Instastream, H.265, H.264+, H.264, MJPEG
-
AI by Recorder: Support 4 channel SMD
-
AI by Camera: Support perimeter protection and SMD
-
Max. 144/144/72 Mbps incoming/recording/outgoing bandwidth
-
Support 2 SATA HDDs up to 20TB, 2 USB ports(2.0)
-
HDMI / VGA simultaneous video output
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro Lite
-
Functions
-
Smart Motion Detection (SMD Plus)
-
CP Plus has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP Plus gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
Instastream
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP Plus help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame
-
KVMS Pro Lite
-
The KVMS Pro Lite is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is released with the surveillance hardware and exclusively supports CP PLUS devices
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
NVR |
|
Product Model |
CP-UNR-4K2162-V3 |
|
Processor |
Industrial-grade processor |
|
Operating System |
Embedded Linux |
|
IP Camera Input |
16 channel |
|
User Interface |
Web, Local GUI |
|
AI By Recorder |
SMD |
|
AI By Camera |
Perimeter protection, SMD |
|
Perimeter Performance Of AI By Camera |
All channels (4 targets/s) |
|
Video Output |
1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
Video Compression |
H.265, H.264+, H.264, MJPEG |
|
Encode Strategy |
Instastream |
|
Decoding Capability |
AI disabled: 1 channel 12 MP@30 fps, 1 channel 8 MP@30 fps, 2 channel 6 MP@30 fps, 2 channel 5 MP@30 fps, 3 channel 4 MP@30 fps, 6 channel 1080p@30 fps AI enabled: 1 channel 8 MP@30 fps, 1 channel 6 MP@30 fps, 1 channel 5 MP@30 fps, 2 channel 4 MP@30 fps, 4 channel 1080p@30 fps |
|
Video Resolution |
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, 960p, D1, CIF, QCIF |
|
Video Display Split |
1/4/8/9/16 |
|
SMD Plus By NVR |
4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
|
SMD Plus By Camera |
All channels (8 targets/s) |
|
Network Bandwidth |
AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing |
|
Protocols |
HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, InstaOn, Auto Registration, ONVIF 23.12(Profile T, Profile S, Profile G), CGI, SDK |
|
Abnormality Alarm |
Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline |
|
Intelligent Alarm |
Perimeter protection; SMD+ |
|
General Alarm |
Motion detection, Camera external alarm, PIR alarm |
|
Alarm Linkage |
Recording, Snapshot, Buzzer, Log, Preset, Email, Tour |
|
Audio Input |
1 channel RCA |
|
Audio Output |
1 channel RCA |
|
Audio Compression |
G.711a, G.711u, PCM, G726, AAC |
|
Hard Disk |
2 SATA ports. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature |
|
Multi-Channel Playback |
Up to 16 channels |
|
Record Mode |
General, Motion detection, Intelligent, Alarm |
|
Playback Mode |
Instant playback, General playback, Event playback, Tag playback, Smart playback |
|
Interface Ports |
2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
|
Backup Method |
USB device and network |
|
Smart Phone |
iOS, Android |
|
Ethernet |
1 (10/100/1000 Mbps Ethernet port, RJ-45) |
|
Browser |
Chrome, IE, Safari, Edge, Firefox |
|
Power Supply |
12 VDC, 4 A |
|
Power Consumption |
≤ 10 W (without HDD) |
|
Operating Temperature |
-10 °C to +55 °C (14 °F to +131 °F) |
|
Operating Humidity |
10%–93% (RH), non-condensing |
|
Storage Temperature |
-20 °C to +60 °C (–4 °F to +140 °F) |
|
Dimension |
375 × 282.9 × 53 mm |
|
Weight |
1490 g (without HDD) |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
37.5 x 28.2 x 5.3 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1.5 kg |
|
Generic Name |
16 Channel NVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
