SKU # 1000129220

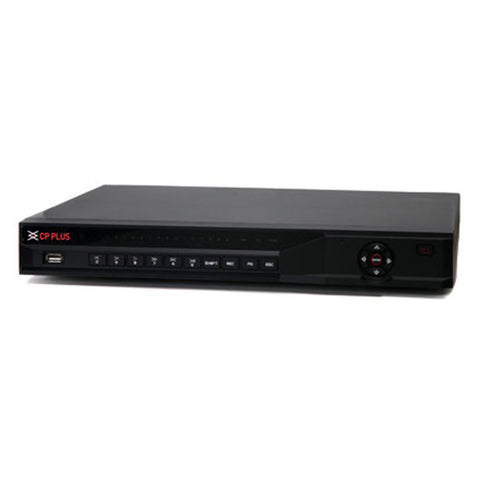

CP Plus 32 Channel Digital Video Recorder 1080N/720P CP-UVR-3201E2-I

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 16 channels IP camera inputs, each channel up to 6MP; Maximum 128 Mbps incoming bandwidth
-
Supports 8-channel AI Instastream
-
AI Instastream/ Instastream/ H.265 dual-stream video compression
-
Up to 16 channels video stream (analog channel) SMD Plus
-
Support 2 SATA HDDs up to 16TB Each, 2 USB Ports
-
1 HDMI / 1 VGA / 1 TV Video output
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
| Brand | CP Plus |
| Product Type | Recorder |
| Product Code | CP-UVR-3201E2-I |
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| IP Camera Input | Up to 16 channels of IPC access 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
| Two-Way Talk | Yes (share the same audio input with the first channel) |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Recording | Main Stream: the 1st channel 1080N/720P (1 fps–25/30 fps), others 1080N/720P (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 fps) Sub stream: CIF (1 fps–7 fps) |
| Video Compression | AI Instastream/Instastream/H.265/H.264+/H.264 |
| Video Display Split | 1/4/8/9/16/25/36 |
| Video Channel | 16 channels, BNC |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Output | 1 channel, RCA |
| Audio Input | 1-channel RCA (external) 32-channel BNC (coaxial audio) |
| Motion Detection | MD Zones: 396 (22 × 18) |
| Video Loss | Supports |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 2 SATA ports, up to 16TB Each, the Maximum HDD capacity varies with environment temperature |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Recording Mode | General, motion detection; intelligent; alarm |
| Backup Mode | USB Device/Network |
| Playback | Instant playback, general playback, event playback, tag playback, smart playback |
| Ethernet | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Interface Ports | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS485 Port |
| Protocols | HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; InstaOn, ONVIF 21.06, CGI |
| Power Supply | DC 12V/4A |
| Power Consumption | Lower than 12 W (without HDD) |
| Working Temperature | -10°C to +55°C (+14°F to +131°F), 0–90% RH |
| Dimension | 375.0 × 289.4 × 53.0 mm |
| Weight | 1.92 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.7 x 9.5 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.319 kg |
| Generic Type | 32 Channel DVR |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
