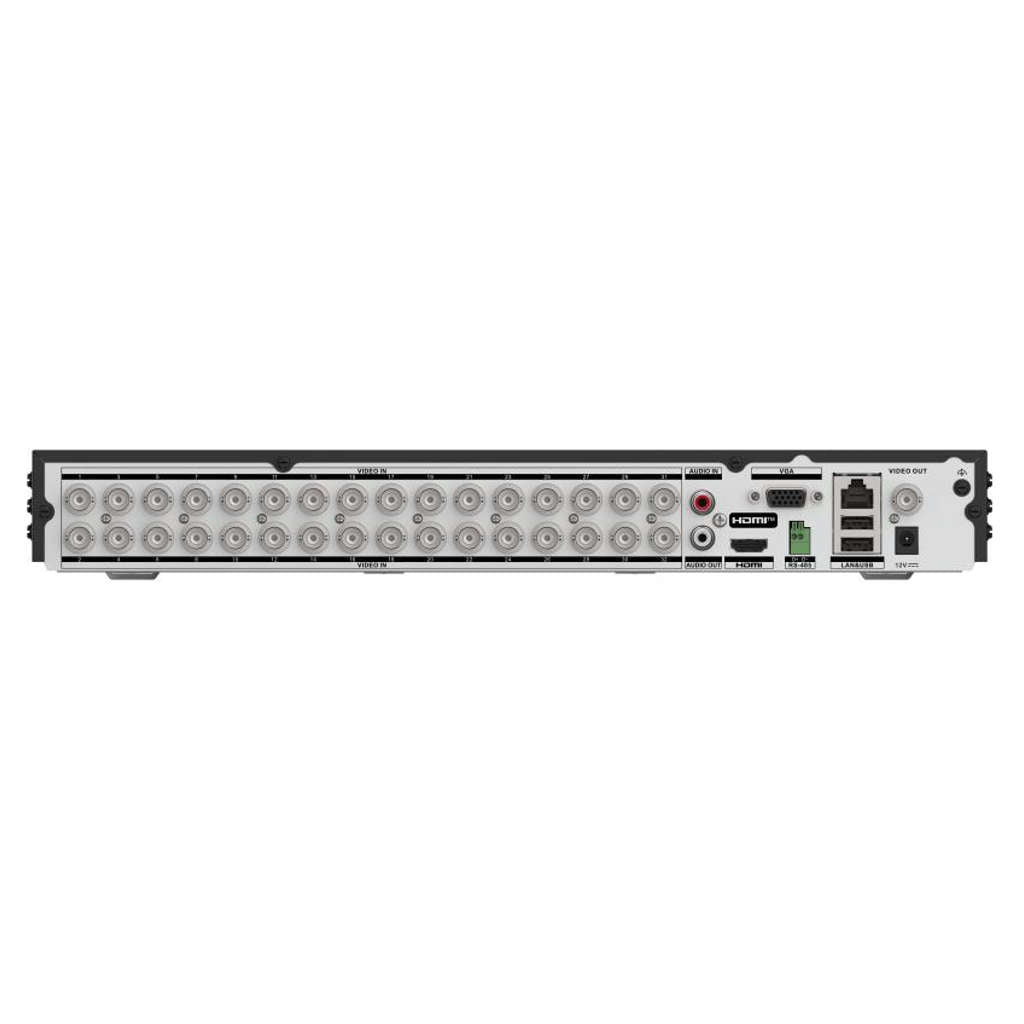

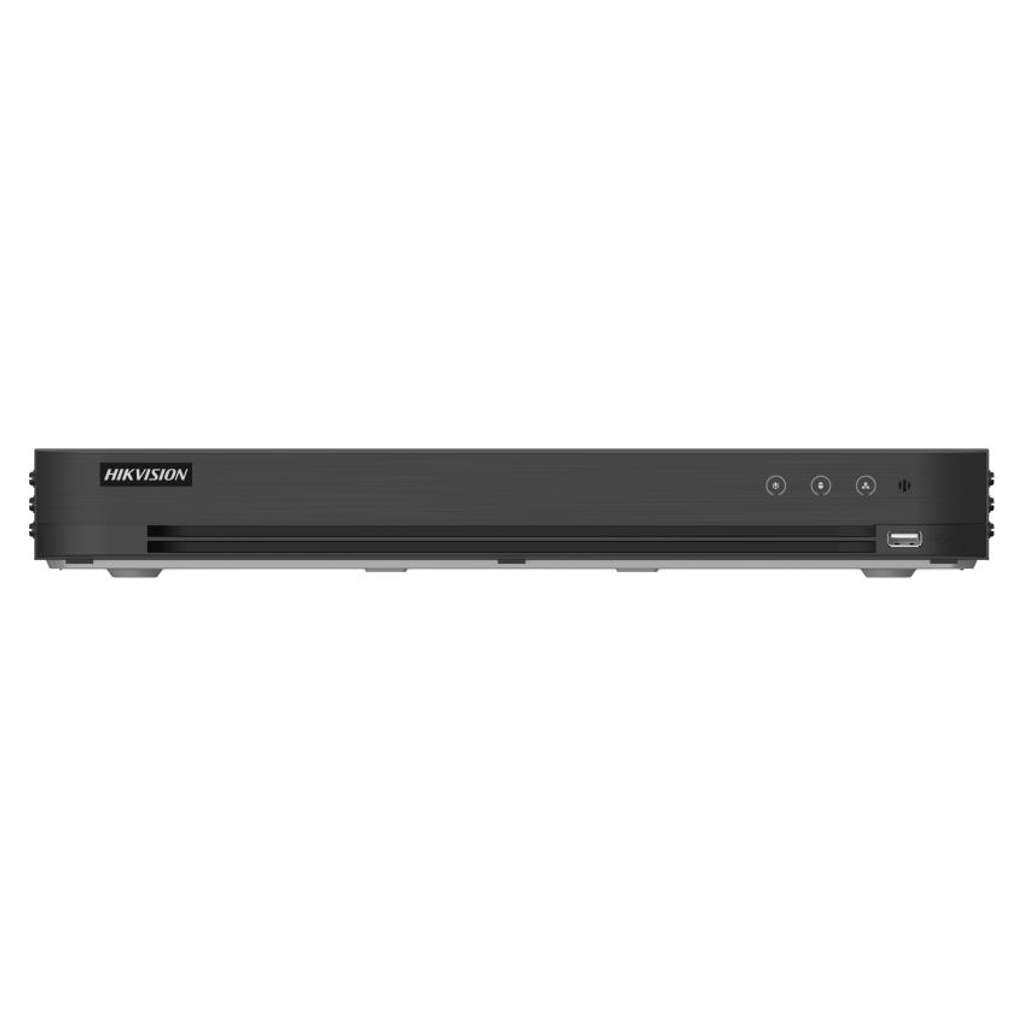

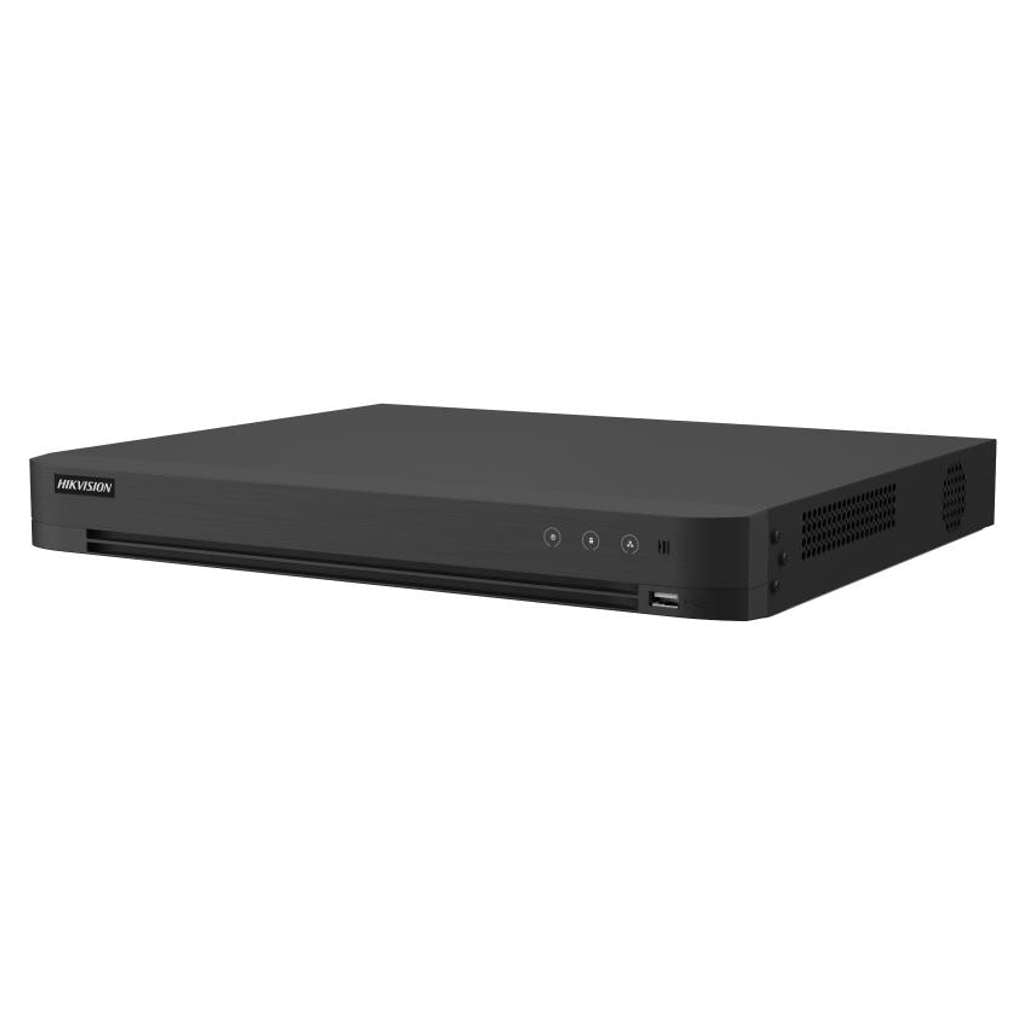

Hikvision 32 Channel DVR 1080P Metal Body 2SATA iDS-7232HQHI-M2/XT

Brand

Hikvision

Product Type

DVR

Product Model

iDS-7232HQHI-M2/XT

Facial Recognition

Face Picture Library

Up to 16 face picture libraries ;

HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash

Face Picture Comparison (Captured From Camera)

4-ch face picture comparison alarm (HD analog camera)

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

it can classify human and vehicle, and extremely reduce false alarms caused by objects

like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection

Human/Vehicle Analysis

Up to 16-ch (advanced model)

Facial Detection

Facial Detection And Capture

Face picture detection, face picture search；

4-ch face picture capture

Video And Audio

IP Video Input

8-ch (up to 40-ch), each up to 6 MP resolution,

Analog Video Input

32-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

HDMI/VGA simultaneous output

CVBS Input

PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous Playback

16-ch

HDTVI Input

3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

AHD Input

5 MP(2560 × 1944)@20fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

HDCVI Input

3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Audio Input

1-ch(up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 32-ch via coaxial cable

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate

32 Kbps to 10 Mbps

Dual-Stream

Support main stream or sub stream

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Decoding

Decoding Capability

Up to 24-ch 1080P@30fps

Network

Total Bandwidth

256 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP

Remote Connection

128

Network Interface

1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 12 TB capacity for each disk

Serial Interface

RS-485 (half-duplex)

USB Interface

Front panel: 1 × USB 2.0

Rear panel: 2 × USB 3.0

Alarm In/Out

N/A (optional to support)

General

Power Supply

12 VDC, 5 A

Consumption

≤ 60 W

Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

384 × 313 × 52 mm (15.1 × 12.3 × 2.0 Inch)

Weight

≤ 2.1 kg (4.6 lb)

Warranty

As Per Manufacturer Terms and Condition

Dimension (CM) L x B x H

38.4 x 31.3 x 5.2

Unit Of Measurement

1 Piece

Weight

2.1 kg

Generic Name

32 Channel DVR

Manufacturer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Packer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Country Of Origin

India
