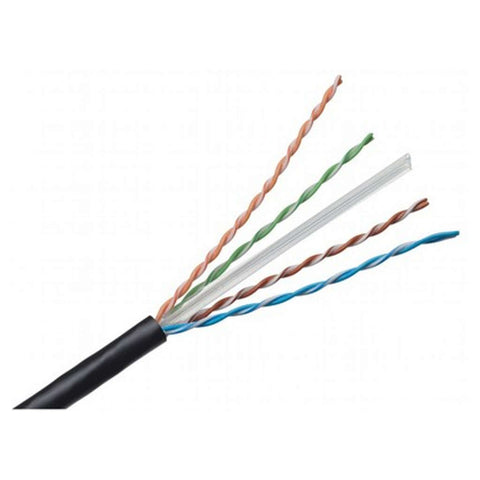

CP Plus Cat6 24 AWG UTP LAN Cable 100 Mtrs CP-EUT-6TGL23-100

CP Plus Cat6 24 AWG UTP LAN Cable 100 Mtrs CP-EUT-6TGL23-100

Visit the CP Plus Store

₹ 3,460.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Key Features

  • Solid Bare Electrolytic Grade Copper

  • Insulation Polyethylene (HDPE)

  • 4 Pair Separator Design

  • 24 AWG cable

  • 100 Mtr. Cable Length

  • Functions

  • Weather Care

  • The outer jacket in this cable is made of the most robust PVC to provide a supplemented life potential to the cable and also to safeguard it against the calamities of weather

  • Solid Annealed Bare Copper Conductor

  • The use of a bare copper conductor in energy transmission installations to maximizes thermal and electrical conductivity,and to transmit energy with optimal efficiency

  • Increased Protection

  • The superior quality of the insulator used in this cable provides greater prevention against the electromagnetic force emitting from the current

  • Renewed Capacity

  • The current carrying capacity of a cable is directly proportionate to its diameter

  • Keeping that in mind, this cable has been designed to carry a bigger amount of Voltage

Product Specification

Brand

CP Plus

Product Type

CCTV Cable

Product Model

CP-EUT-6TGL23-100

Conductor

Solid Bare Electrolytic Grade Copper

Insulation

Polyethylene (HDPE)

Nominal Conductor Diameter

24 AWG

Pairing

2 insulated conductors twisted together

Separator

Each pair separated with a cross separator

Separator Material

Polyethylene (PVC)

Outer Sheath

FR PVC

Colour of Sheath

Grey

Approximate OD

5.5mm ± 0.1mm

Sheath Thickness

.48mm ± .05mm

Rip Cord

Yes

Sequential Marking

Every Meter

Characteristic Impedance

100 ±15Ω

Resistance Unbalance

5% Max

Nominal Velocity of Propagation

69%

Conductor Resistance

9.38/100m

Capacitance Unbalance

330pF/100m

Bending Radius

< 4 x Cable Diameter at -20° ±1°C

Delay Skew

<45nS

Mutual Capacitance

<5.6nf/100m

Packing

305 Mtrs

Temperature Rating

-15 to 70°C

Storage Temperature

0 to 50°C

Impedance

100±15% Ω

Pulling Force

11.5 Kg

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimensions(L x W x H)

18.6 x 13.05 x 3.9

Unit Of Measurement

1 Piece

Weight

11.5 kg

Generic Name

Cat 6 Cable

Manufacturer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Packer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Country Of Origin

India
