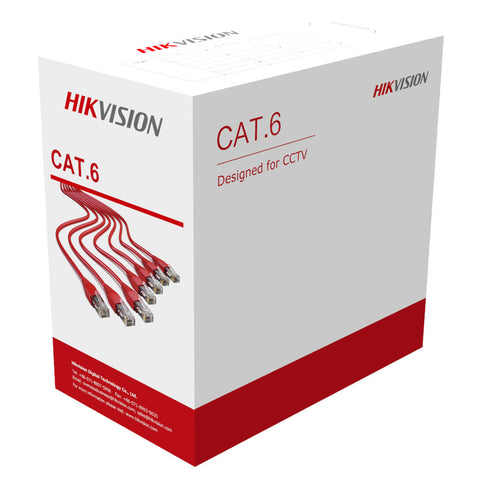

Hikvision Cat 6 PVC 23 U/UTP AWG Cable DS-1LN6U-G

Hikvision Cat 6 PVC 23 U/UTP AWG Cable DS-1LN6U-G


₹ 9,900.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.

  • Compliant with RoHS 2.0

  • Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project

  • Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature

  • Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE)

  • Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance

Product Specification

Brand

Hikvision

Product Type

Cable

Product Model

DS-1LN6U-G

Conductor

Material

Solid-Bare Copper (99.95%)

Diameter

0.55 ± 0.005 mm, 23 AWG

Insulation

Material

HDPE

Diameter

0.98 ± 0.05 mm

Thickness

0.50 ± 0.10 mm

Diameter

6.00 ± 0.30 mm

Sheath

Diameter

6.00 ± 0.30 mm

Material

PVC

Rip-Cord

Yes

Separator

Yes

Sheath Physical Properties

Before Aging

Tensile strength ≥ 13.5 Mpa Elongation ≥ 150%

Aging Period

100°C × 24h × 10d

After Aging

Tensile strength ≥ 12.5 Mpa Elongation ≥ 125%

Cold Bend

-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks

1.0-250.0 MHz Impedance

100 ± 15 Ω @ ≤ 100 MHz
100 ± 25 Ω @100-250 MHz

1.0-250.0 MHz Delay Skew

45 ns/100 m

DC Resistance

9.38 Ω/100 m

DC Conductor Resistance Unbalance

5.0%

Cable Length

(305 ± 1.5) m

Ambient Temperature

-20°C to 75°C (-4°F to 167°F)

Operating Voltage

60 V

Package Dimension (D x W x H)

400 × 400 × 240 mm (15.75" × 15.75" × 9.45")

Weight

12.3 ± 0.5 kg

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H

51 x 43 x 22

Unit Of Measurement

1 Piece

Weight

1 kg

Generic Type

Cat 6 Cable

Manufacturer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Packer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Country Of Origin

India
