SKU # 1000076740

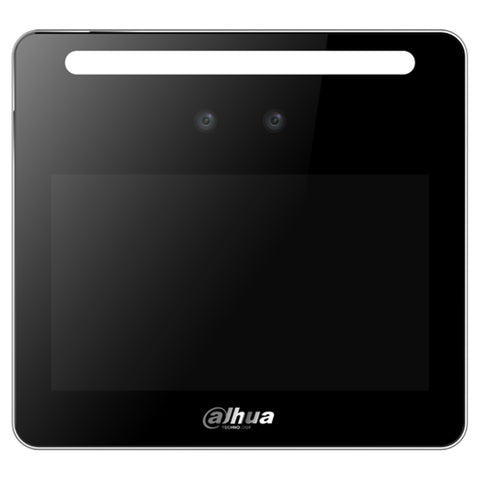

Dahua Face Recognition Access Controller DHI-ASI3213G-MW

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
4.3 inch LCD touch screen; resolution 480×272
-
With 2 MP wide-angle dual lens, white fill light, IR light
-
Support face, card and password unlock; unlock by period
-
User data can be stored at the access controller; can hold 1500 face images and work without network
-
Face-camera distance: 0.3m-1.5m
-
Face verification accuracy 99.5%; face comparison speed 0.3s per person; low false recognition rate Support liveness detection
Product Specification
|
Brand |
Dahua |
|
Product Type |
Access Control |
|
Product Model |
DHI-ASI3213G-MW |
|
System |
|
|
Main Processor |
Embedded Processor |
|
Network Protocol |
IPv4, RTSP, RTP, TCP, UDP, P2P |
|
Osdp Protocol |
Support |
|
Interoperability |
CGI |
|
SDK |
Support |
|
Basic |
|
|
Display |
4.3 inch TFT screen |
|
Screen Type |
Capacitive touch screen |
|
Screen Resolution |
480 × 272 |
|
Camera |
2MP CMOS |
|
Light Compensation |
Auto whitelight fill light Auto IR fill light |
|
Voice Prompt |
Support |
|
Housing Material |
PC+ABS |
|
Function |
|
|
Unlock Mode |
Card/Password/Face unlock Card, password, and face combination unlock |
|
Card Reader Type |
IC card |
|
Period List |
128 |
|
Holiday Period |
128 |
|
First-Card Unlock |
Support |
|
Remote Verification |
Support |
|
Peripheral Card Reader |
1 RS-485 |
|
Multi-Card Unlock |
Support |
|
Real-Time Surveillance |
Support |
|
Web Configuration |
Support |
|
Face-Camera Distance |
0.3 m–1.5 m |
|
Face Verification Accuracy |
99.5% |
|
Face Recognition Speed |
0.3s |
|
Capacity |
|
|
User Amount |
1500 |
|
Face Amount |
1500 |
|
Card Amount |
1500 |
|
Password Amount |
1500 |
|
Storage Record Amount |
150, 000 |
|
Port |
|
|
Rs-485 |
1 |
|
USB |
1 USB2.0 port |
|
Network |
1 10/100Mbps Ethernet port |
|
Alarm Input |
1 |
|
Alarm Linkage |
Support |
|
Unlock Button |
1 |
|
Door Status Detection |
1 |
|
Door Lock Control |
1 |
|
Alarm |
|
|
Anti-Passback |
Support |
|
Tamper |
Support |
|
Duress |
Support |
|
Door Sensor Timeout |
Support |
|
Illegal Intrusion |
Support |
|
Illegal Card Exceeding Threshold Alarm |
Support |
|
General |
|
|
Power Supply |
DC 12V 1.5A |
|
Power Consumption |
≤18W |
|
Dimensions |
116 mm × 107 mm × 22 mm |
|
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
|
Operating Humidity |
5%RH–95%RH (non-condensing) |
|
Working Environment |
Indoor |
|
Installation |
Desktop and Wall mount |
|
Certifications |
CE/FCC |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Face Recognition Access Controllers |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
