SKU # 1000076741

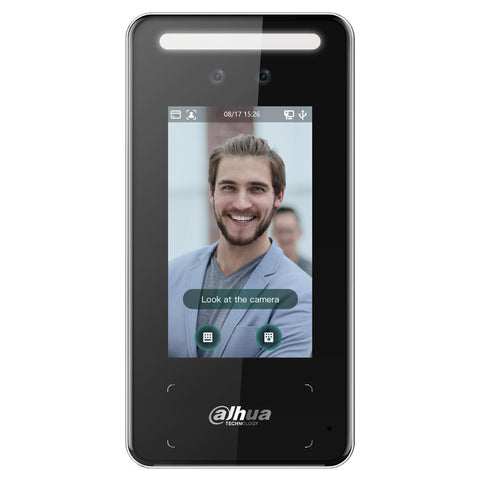

Dahua Face Recognition Access Controller DHI-ASI6213J-MW

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
4.3-inch LCD touch screen; resolution 480 × 272
-
2MP wide-angle dual lens camera; support DWDR, white light fill light and IR fill light
-
Support face, card, password unlock and unlock through their combinations; support unlock by period
-
User data can be stored at the access controller; can hold 6000 face images and work without network
-
Face-camera distance: 0.3 m-1.5 m
-
Face verification accuracy 99.5%; face comparison speed 0.3s per
-
person; low false recognition rate; support liveness detection
Product Specification
Brand |
Dahua |
Product Type |
Access Control |
Product Model |
DHI-ASI6213J-MW |
System | |
Main Processor |
Embedded Processor |
Internet Protocol |
IPv4; RTSP; RTP; TCP; UDP; P2P |
Osdp Protocol |
Support |
Interoperability |
CGI |
SDK |
Support |
Basic | |
Display |
4.3 inch TFT screen |
Screen Type |
Capacitive touch screen |
Screen Resolution |
480 × 272 |
Camera |
2MP CMOS high definition camera |
WDR |
DWDR |
Light Compensation |
Auto white light Auto IR light |
Voice Prompt |
Support |
Casing |
PC Metal rear case |
Function | |
Unlock Mode |
Card/Password/Face unlock and unlock through their combinations |
Card Reading Type |
IC card |
Period List |
128 |
Holiday Period |
128 |
First-Card Unlock |
Support |
Remote Verification |
Support |
Peripheral Card Reader |
1 RS-485 1 Wiegand |
Multiple User Unlock |
Support |
Real-Time Surveillance |
Support |
Web Configuration |
Support |
Performance | |
Face Recognition Height |
0.9 m–2.4 m |
Face Recognition Distance |
0.3 m–1.5 m |
Face Verification Accuracy |
99.50% |
Face Recognition Time |
0.3 s |
Capacity | |
User Capacity |
6,000 |
Face Image Capacity |
6,000 |
Card Capacity |
6,000 |
Password Capacity |
6,000 |
Record Capacity |
150,000 |
Port | |
Rs-485 |
1 |
Wiegand |
1 |
USB |
1 × USB2.0 port |
Network |
1 × RJ-45 10/100 Mbps self-adaption |
Alarm Input |
1 |
Alarm Linkage |
Support |
Exit Button |
1 |
Door Status Detection |
1 |
Lock Control |
1 |
Alarm | |
Anti-Passback |
Support |
Tamper |
Support |
Duress |
Support |
Door Sensor Timeout |
Support |
Intrusion |
Support |
Illegal Card Exceeding Threshold |
Support |
General | |
Power Supply Mode |
12V DC, 2A |
Protection Grade < font> |
IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick startguide.) |
Power Consumption |
≤ 24W |
Product Dimensions |
174.0 mm × 87.5 mm × 22.5 mm (6.85" × 3.44" × 0.88" ) (H × W × D) |
Working Temperature |
–30°C to 60°C (–22°F to 140°F) |
Working Humidity |
5%RH–95%RH (non-condensing) |
Working Environment |
Indoor Outdoor |
Gross Weight |
0.78 kg (1.72 lb) |
Accessory |
Bracket (provided) |
Installation Method |
Surface mount |
CErtification |
CE FCC |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Face Recognition Access Controllers |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
