SKU # 1000076742

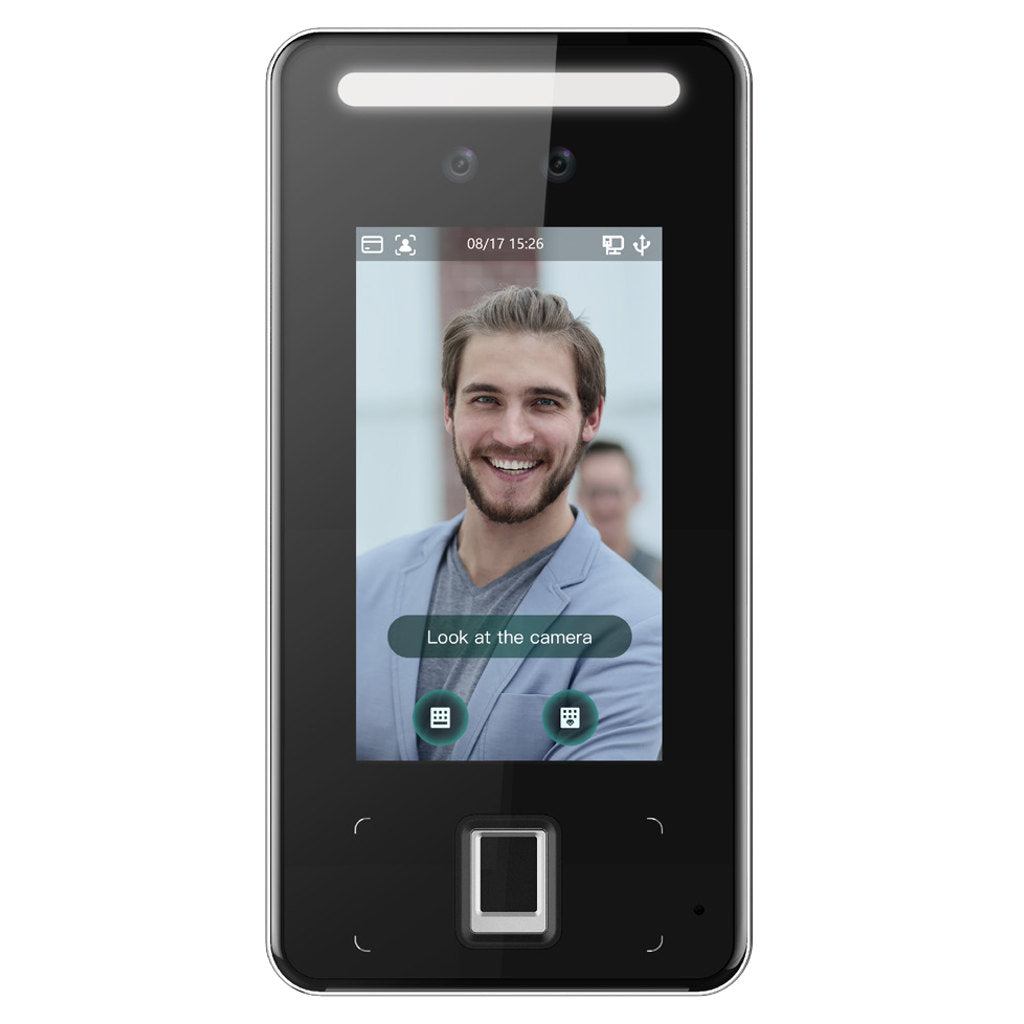

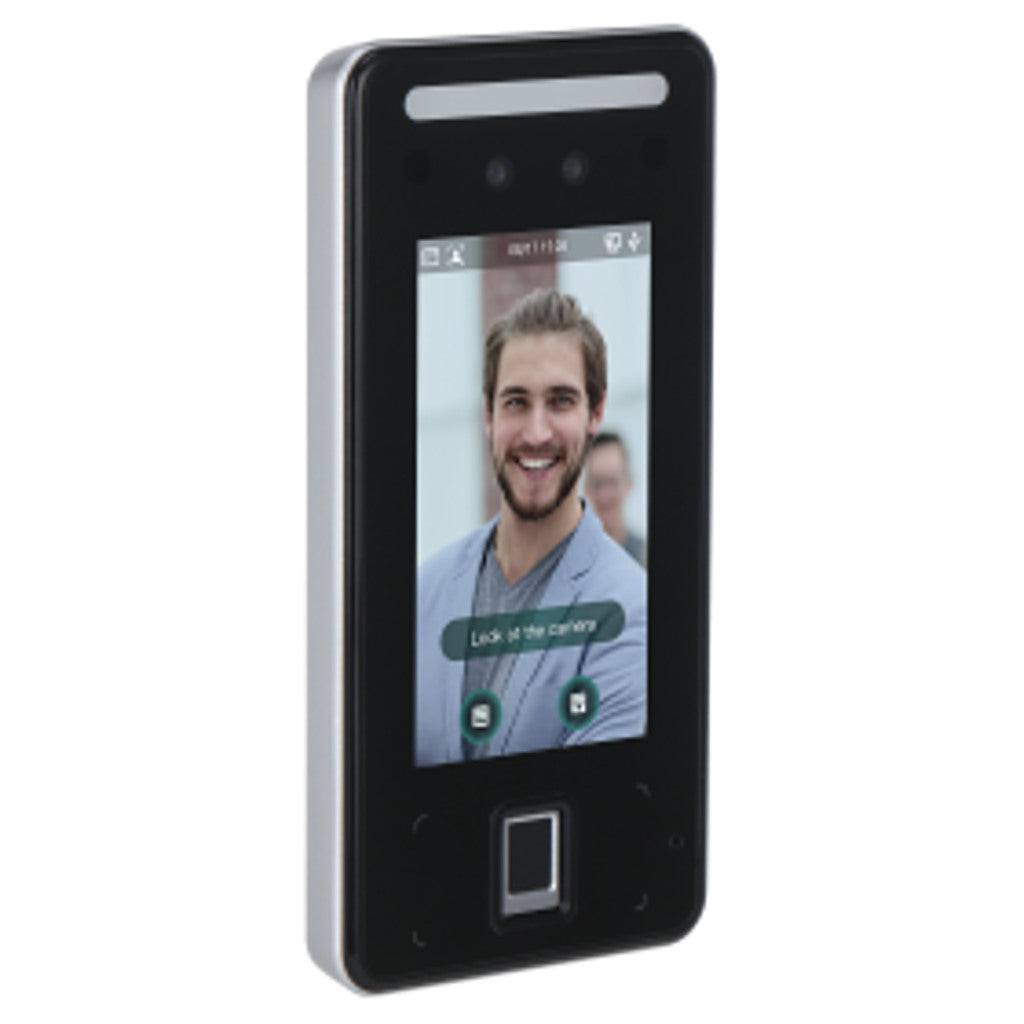

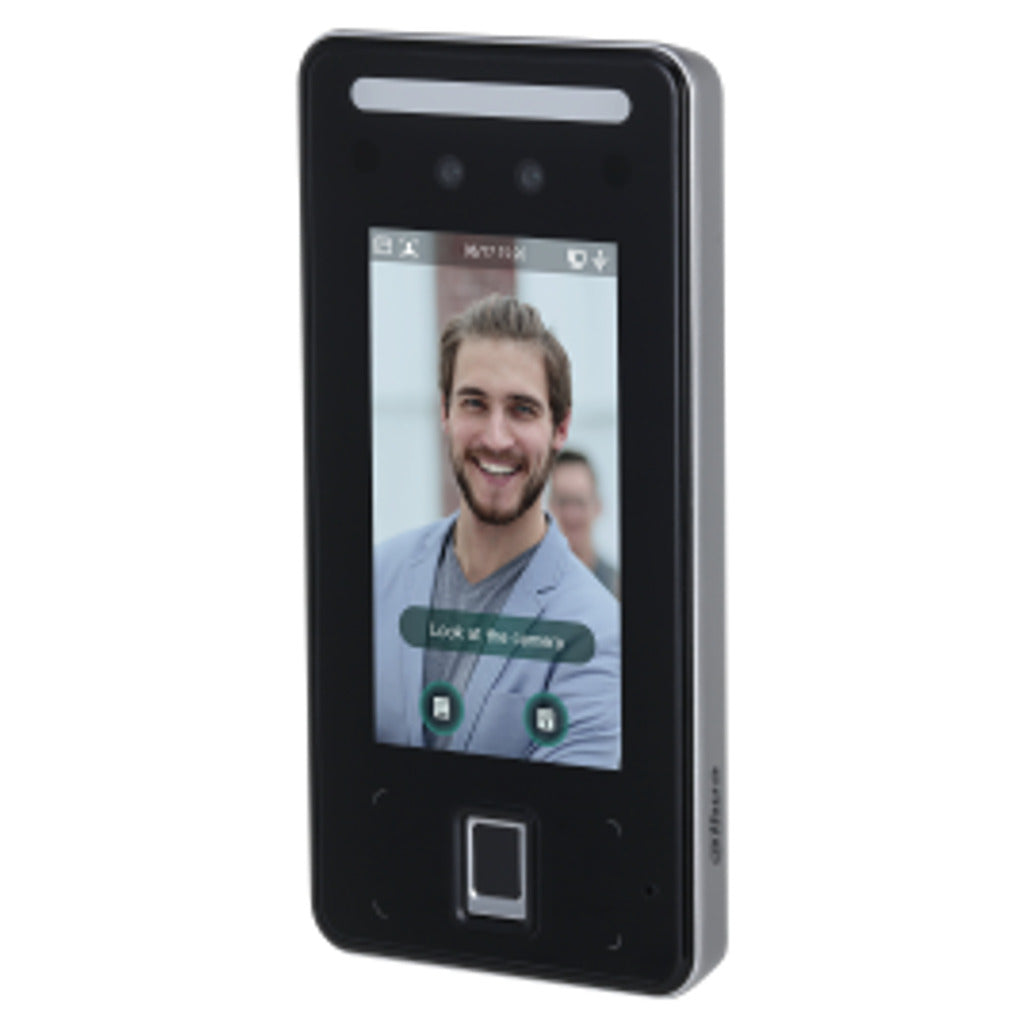

Dahua Face Recognition Access Controller DHI-ASI6214J-MFW

Dahua Face Recognition Access Controller DHI-ASI6214J-MFW

Visit the Dahua Store

₹ 14,910.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 7-10 Business days

Offers and Coupons

Ganesh Chaturthi Smart Deals

Coupon Image

Use the coupon codes purchase of ₹3,000/- & above

Above ₹3,000 Use
GC100
Above ₹10,000 Use
GC200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 4.3-inch LCD touch screen; resolution 480 × 272

  • 2MP wide-angle dual lens camera; support DWDR, white light fill light and IR fill light

  • Support face, card, password ,fingerprint unlock and unlock through their combinations; support unlock by period

  • User data can be stored at the access controller; can hold 6000 face images and work without network

  • Face-camera distance: 0.3 m-1.5 m

  • Face verification accuracy 99.5%; face comparison speed 0.3s per person; low false recognition rate; support liveness detection

Product Specification

Brand

Dahua

Product Type

Access Control

Product Model

DHI-ASI6214J-MFW

System

Main Processor

Embedded Processor

Internet Protocol

IPv4; RTSP; RTP; TCP; UDP; P2P

Osdp Protocol

Support

Interoperability

CGI

SDK

Support

Basic

Display

4.3 inch TFT screen

Screen Type

Capacitive touch screen

Screen Resolution

480 × 272

Camera

2 MP CMOS high definition camera

WDR

DWDR

Light Compensation

Auto white light Auto IR light

Voice Prompt

Support

Casing

PC Metal rear case

Function

Unlock Mode

Card/Password/Fingerprint/Face unlock and unlock through their combinations

Card Reading Type

IC card

Period List

128

Holiday Period

128

First-Card Unlock

Support

Remote Verification

Support

Peripheral Card Reader

1 RS-485 1 Wiegand

Multiple User Unlock

Support

Real-Time Surveillance

Support

Web Configuration

Support

Performance

Face Recognition Height

0.9 m–2.4 m

Face Recognition Distance

0.3 m–1.5 m

Face Verification Accuracy

99.50%

Fingerprint Sensor Type

Capacitive

Fingerprint Verification Mode

1:N

Fingerprint Comparison Time

1.0 s

Fingerprint Recognition Time

0.5 s

Capacity

User Capacity

6,000

Face Image Capacity

6,000

Fingerprint Capacity

6,000

Card Capacity

6,000

Password Capacity

6,000

Record Capacity

150,000

Port

Rs-485

1

Wiegand

1

USB

1 × USB2.0 port

Network

1 × RJ-45, 10/100 Mbps self-adaption

Alarm Input

1

Alarm Linkage

Support

Exit Button

1

Door Status Detection

1

Lock Control

1

Alarm

Anti-Passback

Support

Tamper

Support

Duress

Support

Door Sensor Timeout

Support

Intrusion

Support

Illegal Card Exceeding Threshold

Support

Duress Fingerprint

Support

General

Power Supply Mode

12V DC; 2A

Protection Grade

IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick startguide.)

Power Consumption

24W

Product Dimensions

174.0 mm × 87.5 mm × 22.5 mm (6.85" × 3.44" × 0.88" ) (H × W × D)

Working Temperature

30°C to 60°C (–22°F to 140°F)

Working Humidity

5%RH–95%RH (non-condensing)

Working Environment

Indoor Outdoor

Gross Weight

0.78 kg (1.72 lb)

Accessory

Bracket (provided)

Installation Method

Surface mount

CErtification

CE FCC

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Face Recognition Access Controllers

Manufacturer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China.

Packer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China.

Importer Details

Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100

Country of Origin

China
