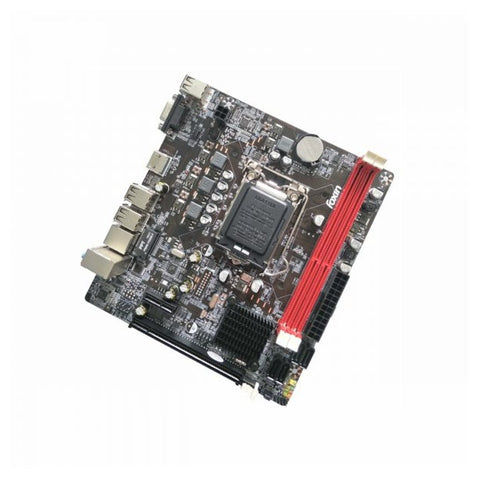

Foxin Motherboard FMB H61

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Enhanced Performance with H61 Chipset
-
H61 chipset seamlessly controls data flow to and from hard disks and other devices connected to the IDE channels and provides a performance solution for embedded computing applications needing HD video playback and 3D graphics
-
16GB Dual Channel DDR3 SDRAM
-
Dual Channel DDR3 on the motherboard providing RAM with two dedicated high-throughput data channels
-
The maximum bandwidth of the memory doubles, because both modules are accessed simultaneously and offer a speed of up to 6400 MB/s
-
LGA1155 Socket
-
The 1155 socket based on sandy bridge connects the motherboard efficiently to the available processing power
-
Premium Power Choke
-
Premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved voltage to the motherboard
-
HD Audio Boost
-
Equipped with Realtek ALC662 6-channel HD Audio Codec onboard high-quality driver for the most immersive gaming experience
Product Specification
|
Brand |
Foxin |
|
Product Type |
Motherboard |
|
Model |
FMB H61 |
|
Chipset |
H61 |
|
Processor Socket |
LGA1155 |
|
Audio Codec |
Realtek ALC662 Supports 5.1 Channels Audio Out |
|
Ethernet Controller |
Realtek 8106E/ 8111E 100/ 1000 Mbps LAN onboard |
|
Memory Configuration |
2 Dual-channel DDR3 1066/1333/1600 MHz Memory Max Capacity-16 GB (Each Channel 8GB Max) |
|
Expansion Slots |
1 x PCI Express x 16 Slot 1 x PCI Express x 1 Slot |
|
Compatible Processors |
Intel Core i7/i5/i3 Pentium/ Celeron Processors in LGA 1155 |
|
I/O Interface |
1 x VGA Port 1 x HDMI Port 6 x USB2.0, 1 x LAN Port 1 x 3 Audio Ports (Line-in/Line-out/Mic-in) |
|
On-Board Connectors |
1 x F-Panel Connector 1 x Speaker Header Connector 1 x F-Audio Connector 1 x USB2.0 Connector (Supports additional 2 USB Ports) 4 x SATA 3Gb/s (SATA II) Ports 1 x 4-Pin CPU Fan Connector 1 x 24-Pin ATX Power Connector 1x 4-Pin ATX 12V Power Connector 1 x CLR CMOS Header |
|
Warranty |
1 Year |
