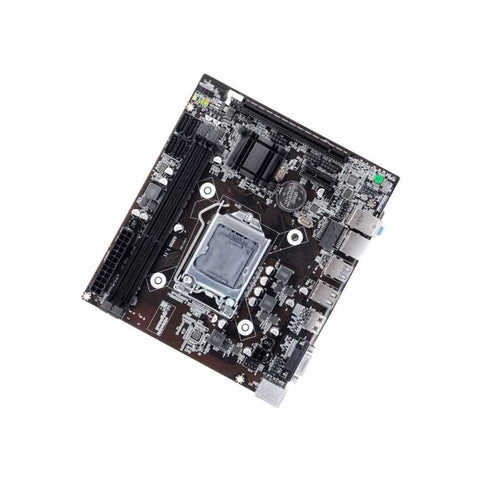

Foxin Motherboard FMB H81

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Enhanced Performance with H81 Chipset
-
H81 chipset seamlessly controls data flow to and from hard disks and other devices connected to the IDE channels and provides a performance solution for embedded computing applications needing HD video playback and 3D graphics
-
16GB Dual Channel DDR3 SDRAM
-
Dual Channel DDR3 on the motherboard providing RAM with two dedicated high-throughput data channels
-
The maximum bandwidth of the memory doubles, because both modules are accessed simultaneously and offer a speed of up to 6400 MB/s
-
LGA1150 Socket
-
The 1150 socket based on sandy bridge connects the motherboard efficiently to the available processing power
-
Premium Power Choke
-
Premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved voltage to the motherboard
-
HD Audio Boost
-
Equipped with Realtek ALC662 6-channel HD Audio Codec onboard high-quality driver for the most immersive gaming experience
Product Specification
|
Brand |
Foxin |
|
Product Type |
Motherboard |
|
Model |
FMB H81 |
|
Chipset |
Intel H81 Express |
|
Processor Socket |
LGA1150 |
|
Form Factor |
Micro-ATX |
|
Audio Codec |
Realtek ALC662 6-Channel HD Audio Codec onboard |
|
Ethernet Controller |
Realtek 8106E 10/100 Mbps LAN onboard |
|
Memory Configuration |
Dual-channel DDR3 1066/1333/1600 MHz (2*240-Pin DDR3 SDRAM Slots) |
|
Expansion Slots |
1 x PCI Express x16 Slot 1 x PCI Express x1 Slot |
|
Compatible Processors |
4th Gen(HASWELL) Intel 22nm CPU's |
|
I/O Interface |
1 x P/S2 Keyboard port 1 x PS/2 Mouse Port 2 x USB2.0 2 x USB 3.0 1 x VGA Port 1 x HDMI Port 1 x RJ45 Port 1 x 3-in-1 Audio Port (Line-in/Line-out/Mic-in) |
|
On Board Connectors |
1 x 24-Pin ATX Power Connector 1x 4-Pin ATX 12V Power Connector 2 x USB Connector can Support 4*USB 2.0 1 x F-Audio Connector 1 x F-Panel Connector 1 x F-Speaker Connector 1 x Fan Connector 1 x LPC-Debug Connector |
|
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Motherboards |
Manufacturer Details |
Balaji Solutions Private Limited Anmol South City Infra Park, Plot No. B4 And B5, Mouza Jagdishpur, Jl No. 2, Dist. Howrah, P.S. Liluah, Howrah - 711115 West Bengal, India Phone : 033 6111 1800 Email: care@foxin.in |
Packer Details |
Balaji Solutions Private Limited Anmol South City Infra Park, Plot No. B4 And B5, Mouza Jagdishpur, Jl No. 2, Dist. Howrah, P.S. Liluah, Howrah - 711115 West Bengal, India Phone : 033 6111 1800 Email: care@foxin.in |
Country of Origin |
India |
