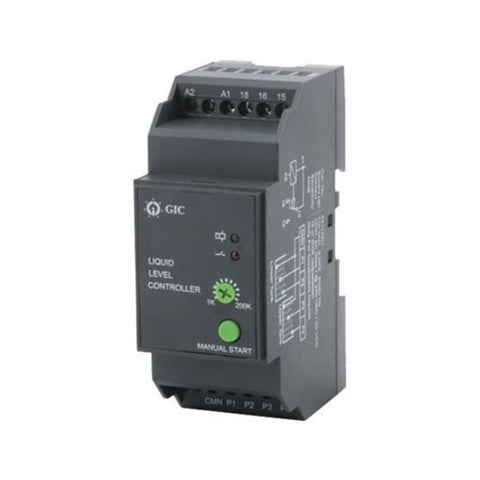

GIC 240VAC Liquid level Controller 4421AD1

GIC 240VAC Liquid level Controller 4421AD1

Visit the GIC Store
Mid-Year Value Sale

₹ 1,720.00

Quantity

Pack Qty : 1.0



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Fully Automatic operation enabling both draining and filling simultaneously with a single device

  • Adjustable sensitivity level from 1k to 200k Ohm

  • Includes provision for Manual start

  • Protects submersible pumps against dry running and prevents overfilling

  • Enables maximum utilization of incoming liquid (eg. water) supply

  • Specially designed corrosion and shock resistant sensors to ensure trouble-free operation

Product Specification

Brand

GIC

Product Type

Liquid level Controller

Model

4421AD1

Monitoring Function

Liquid Level Control

Control Action Modes

Only Draining, Only Filling, Draining & Filling Simultaneous (One Tank or Two tanks)

Sensitivity

1K to 200 K Ohm (Potentiometer adjustable)

Settable ON & OFF Delay Time

0.5 sec to 10 sec

Manual Start Switch

If Lower tank water level is greater than Low level & upper tank water level is below High level th


pressing a switch Relay can be switched ON manually.

Output Control Mode

Relay ON/OFF

Contact Ratings

1 C/O,8A@250VAC,Resistive,Terminal 15-Pole, Terminal 16-NC,Terminal 18-NO

Electrical Life

5 1 x 10 Operations

Mechanical Life

7 1 x 10 Operations

LED Indication

GREEN LED: Power ON

RED LED : Relay Output ON

Operating Temperature

-10°C to +60°C

Storage Temperature

-10°C to +70°C

Relative Humidity

5 to 95 % RH (non condensing)

Mounting

Base/DIN Rail

Dimension (W x H x D)

36 X 90 X 65 mm

Weight

235 g


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Liquid Level Controller

Manufacturer Details

Larsen & Toubro Limited L&T House, Ballard Estate, P. O. Box: 278, Mumbai 400 001 India

Packer Details

Larsen & Toubro Limited L&T House, Ballard Estate, P. O. Box: 278, Mumbai 400 001 India

Country of Origin

India
