Available!

SKU # 1000047630

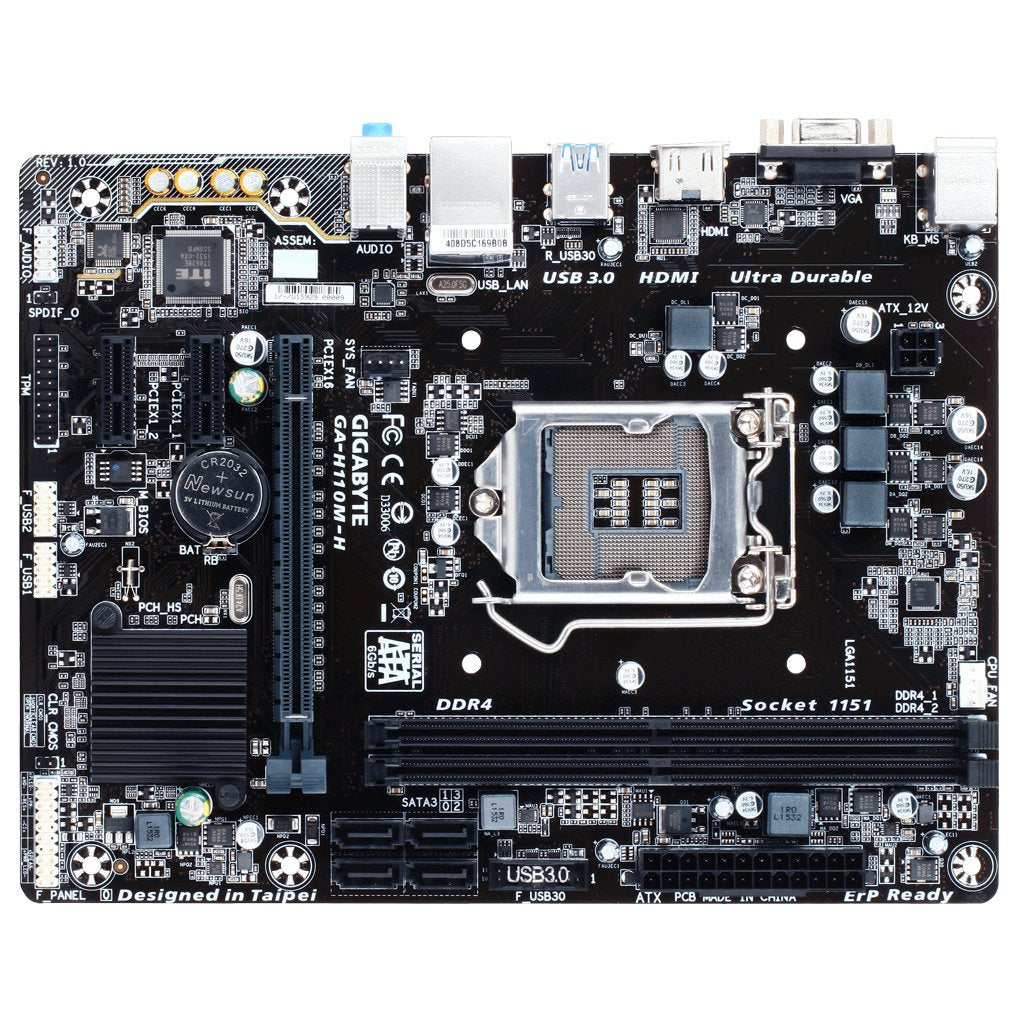

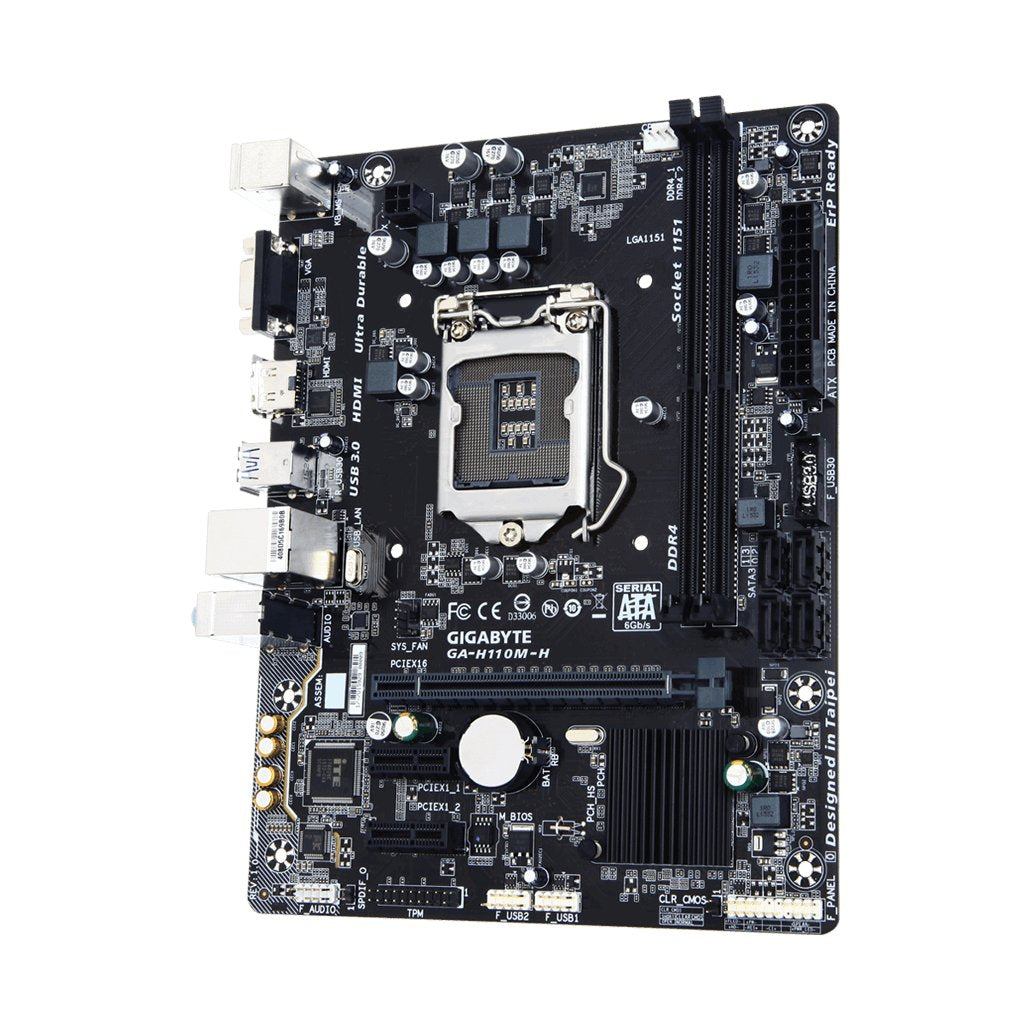

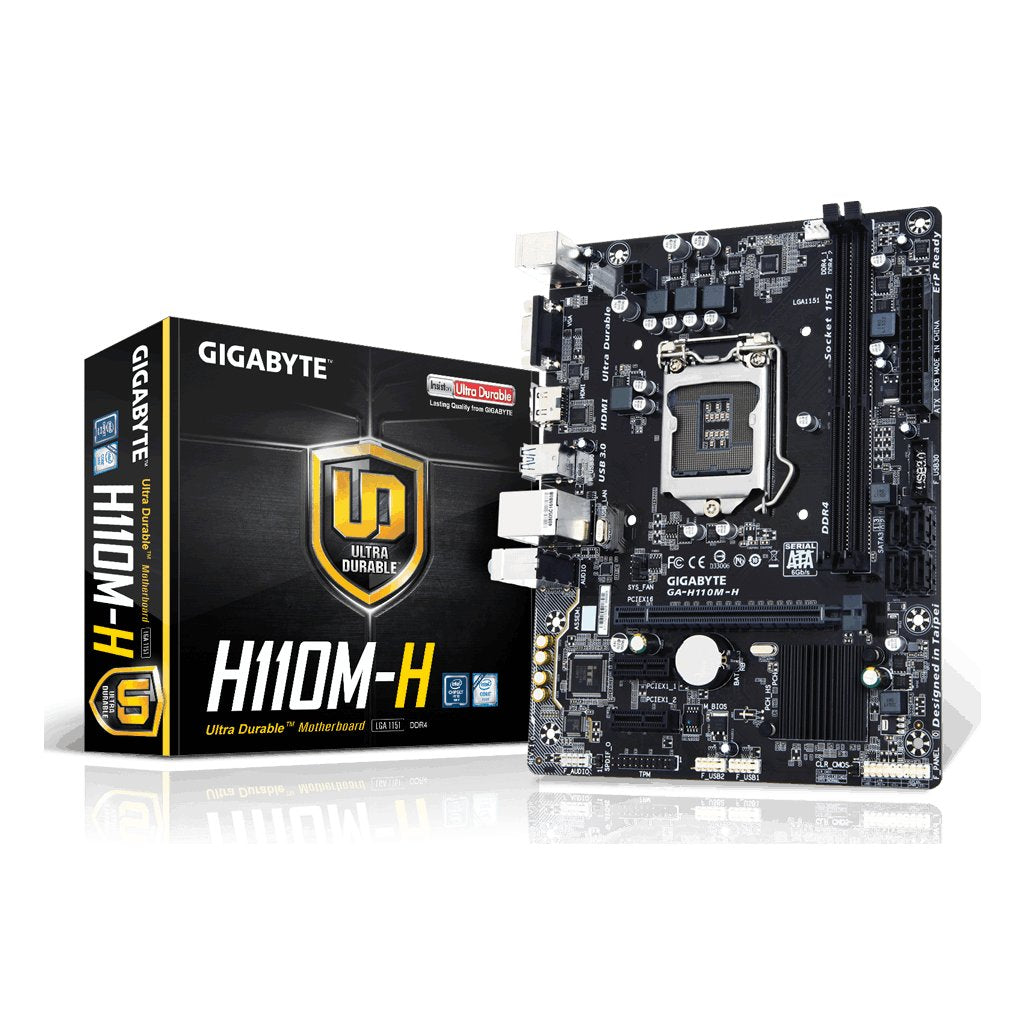

Gigabyte MotherBoard GA-H110M-H

Gigabyte MotherBoard GA-H110M-H

Visit the Gigabyte Store

₹ 4,480.00

Quantity

Pack Qty : 1.0



Delivery Availability

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Supports 7th / 6th Generation Intel Core Processors

  • Dual Channel DDR4, 2 DIMMs

  • Audio Noise Guard with High Quality Audio Capacitors

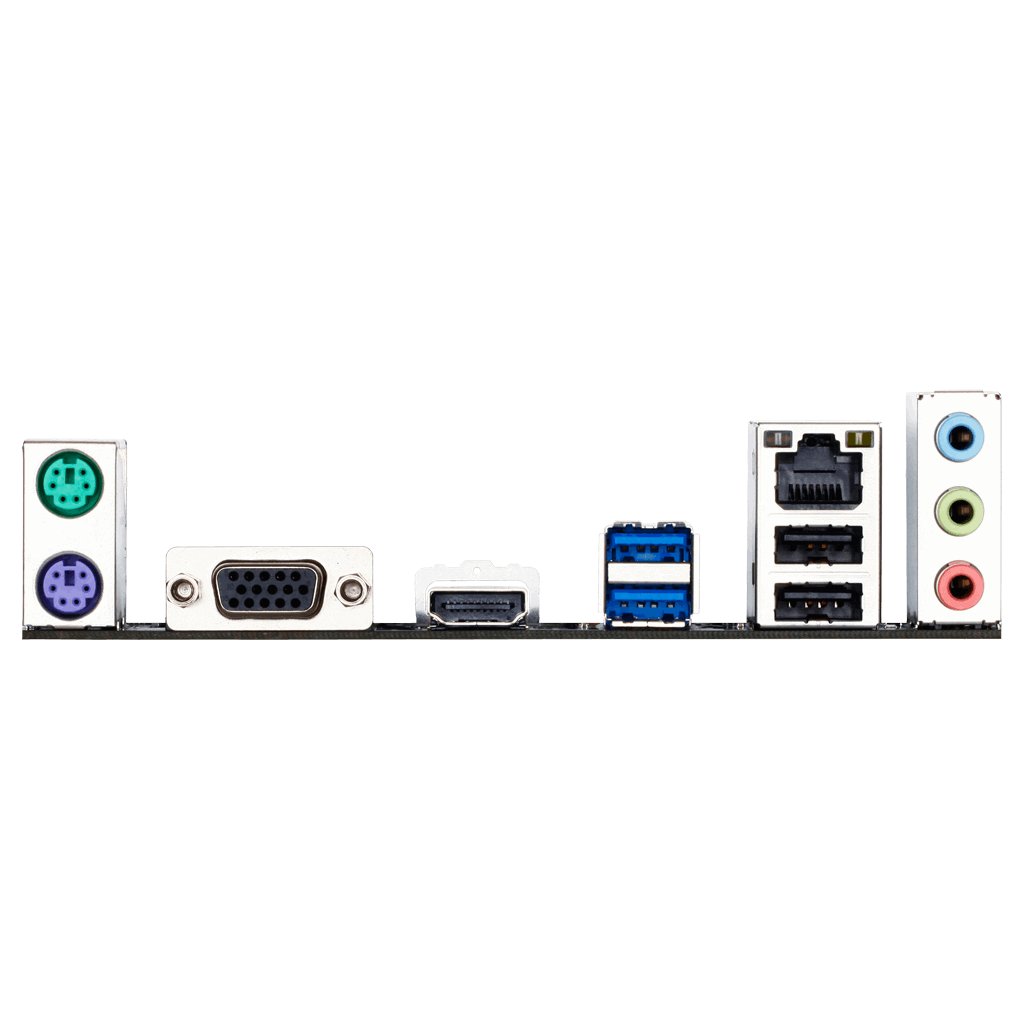

  • HDMI 1.4, D-sub ports for multiple display

  • Realtek GbE LAN with cFosSpeed Internet Accelerator Software

  • All new GIGABYTE APP Center, simple and easy use

  • Support Intel Small Business Basics

  • CPU

  • Support for 7th/6th Generation Intel Core™ i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package

  • * For 7th Generation Intel Core processors support need to update the latest BIOS.

  • L3 cache varies with CPU

  • Memory

  • 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

  • * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed

  • Dual channel memory architecture

  • Support for DDR4 2400/2133 MHz memory modules

  • Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  • Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

  • Internal I/O Connectors

  • 1 x 24-pin ATX main power connector

  • 1 x 4-pin ATX 12V power connector

  • 4 x SATA 6Gb/s connectors

  • 1 x CPU fan header

  • 1 x system fan header

  • 1 x front panel header

  • 1 x front panel audio header

  • 1 x S/PDIF Out header

  • 1 x USB 3.0/2.0 header

  • 2 x USB 2.0/1.1 headers

  • 1 x Trusted Platform Module (TPM) header

  • 1 x Clear CMOS jumper

Product Specification

Brand

Gigabyte

Product Code

GA-H110M-H

Product Type

Motherboard

Chipset

Intel H110 Express Chipset

Memory

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 2400/2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Audio

Realtek ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Realtek GbE LAN chip (10/100/1000 Mbit)

Storage Interface

4 x SATA 6Gb/s connectors

I/O Controller

ITE I/O Controller Chip

Operating System

Windows 10 64-bit (for 7th Generation Intel Processors)

Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors)

Warranty

As Per Manufacturer Terms and Conditions


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Motherboards

Manufacturer Details

A-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan

Packer Details

Gigabyte Technology India Private Limited B-411, 4th Floor, Bsel Tech Park Plot No. 39/5 & 39/5A, Opposite Vashi Railway Station, Vashi Navi Mumbai 400705

Importer Details

Gigabyte Technology India Private Limited B-411, 4th Floor, Bsel Tech Park Plot No. 39/5 & 39/5A, Opposite Vashi Railway Station, Vashi Navi Mumbai 400705

Country of Origin

Taiwan
