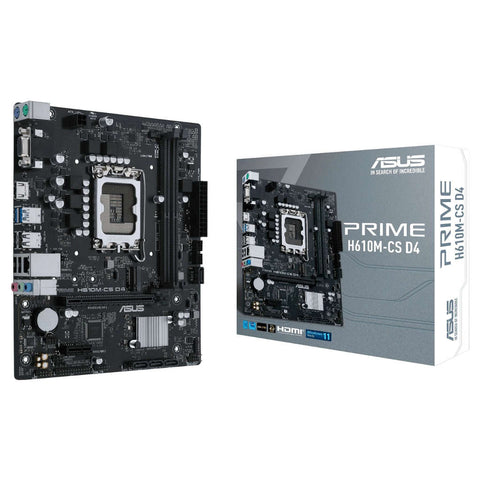

Asus Prime H610M-CS D4 Motherboard

Brand

Asus

Product Type

Motherboard

Product Model

Prime H610M-CS D4

CPU

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports up to Intel 65W CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Intel Turbo Boost Max Technology 3.0 support depends on the CPU types

Chipset

Intel H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to

Graphics

1 x D-Sub
1 x HDMI port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates

Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x 16 slot
Intel H610 Chipset
1 x PCIe 3.0 x 1 slot

Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x 4 mode)
4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output

Back Panel I/O Ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header support additional 2 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Luminous anti-moisture coating
USBGuard

Software Features

ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR
Documentation
1 x User guide

Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

mATX Form Factor
8.9 inch x 7.6 inch (22.6 cm x 19.3 cm)

Warranty

As per Manufacture Terms & Conditions

Dimension (CM) L x W x H

21.1 x 22.6 x 19.3

Unit Of Measurement

1 Piece

Weight

1.5 kg

Generic Name

Motherboards

Manufacturer Details

Asus, TECH FRONT ( CHONGQING) Computer Co. Ltd, NO 18 , Zongbao Road, Shapingba Dist,Chongquing, China

Packer Details

Asus, TECH FRONT ( CHONGQING) Computer Co. Ltd, NO 18 , Zongbao Road, Shapingba Dist,Chongquing, China

Imported Details

Asus INDIA PRIVATE LIMITED, 402, Supreme chambers, 17/18, Shah Industrial Estate, Veer Desai Road, Andheri (west), Mumbai 400053, India

Country Of Origin

China
