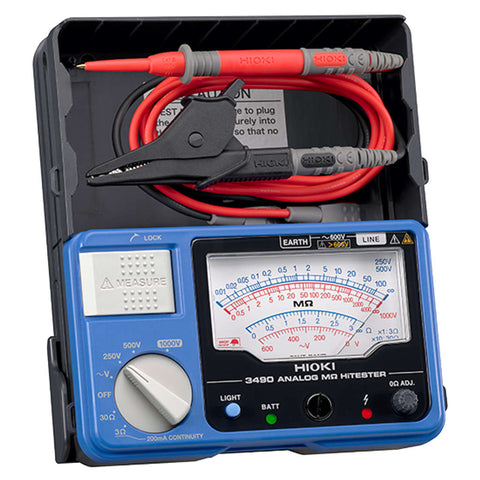

Hioki Analog Insulation Tester 3490
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments
-
The 3490 is a 3-range, 250/500/1000V analog insulation resistance meter with efficient functions and features to help shorten work time associated with field insulation testing
-
3-range testing voltage of 250/500 V (insulation resistance testing up to 100 MΩ), and 1000 V (insulation testing up to 4000 MΩ)
-
Continuity check at 3 Ω range via 200 mA testing
-
Bright LED luminous scale
-
Check for live circuits and battery status
-
Robust, Damage-Resistant Design
-
These instruments feature a robust design that can withstand being dropped onto concrete from a height of 1m
-
Difficult to damage, this insulation tester is ideal for use in the field
-
White LED Lighting That’s Easy To Read In Dim Locations In The Field
-
The scale is lit by a white LED, ensuring that insulation resistance values are easy to read, even when using the instrument in a dim location
-
Continuous Monitoring Of Battery Life
-
You can keep track of remaining battery life since it’s shown on the LED, eliminating the need to worry about sudden loss of battery power in the field
-
Measurement Switch Designed For Outstanding Ease Of Use
-
The instrument’s measurement switch can be operated with just the thumb
-
Press for a single measurement or lift up for continuous measurement of insulation resistance
-
Remote Control To Start And Stop Insulation Resistance Measurement From The Leads
-
By using switch-equipped measurement leads, you can start and stop insulation resistance measurement remotely
-
There’s also a handy light for improved convenience when working in dim locations
-
Function Rotary Switch Designed For Maximum Safety
-
This insulation tester has voltages grouped by application with an “OFF” position between them to help keep users from inadvertently applying the wrong voltage
ProductSpecification
| Brand | Hioki | ||
| Product Type | Insulation Tester | ||
| Product Model | 3490 | ||
| Rated Output Voltage | 250 V DC | 500 V DC | 1000 V DC |
| Effective Maximum Indicated Value | 100 MΩ | 100 MΩ | 4000 MΩ |
| Accuracy 1st Effective Measuring Range | ±2 % of scale length | ±2 % of scale length | ±2 % of scale length |
| Lower Limit Resistance | 0.25 MΩ | | 1 MΩ |
| Overload Protection | 660 V AC (10 sec.) | ||
| Low Resistance Range | 3 Ω (at 200 mA testing current), ±0.09 Ω accuracy, | ||
| AC Voltage Range | 0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, | ||
| Other Functions | Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge | ||
| Power Supply | LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (at 500 V range, no load) | ||
| Included Accessories | Test lead L9787 ×1, Instruction manual ×1, Shoulder strap ×1, LR6 (AA) alkaline batteries ×4 | ||
| Dimensions (W x H x D) | 159 x 177 x 53 mm 6.26 x 6.97 x 2.09 Inch | ||
| Weight | 610 g / 21.5 oz | ||
| Warranty | As Per Manufacturer Terms and Condition | ||
OtherDetails
| Dimension (CM) L x B x H | 21.6 x 16.5 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.650 kg |
| Generic Name | Analog Insulation Tester |
| Packer Details | Hioki Unit No. 123 & 124, 1st Floor, Suncity Business Tower, Golf Course Road, Gurugram - 122003, Haryana, India Phone : 08035948127 |
| Importer Details | Hioki Unit No. 123 & 124, 1st Floor, Suncity Business Tower, Golf Course Road, Gurugram - 122003, Haryana, India Phone : 08035948127 |
| Country Of Origin | India |
