SKU # 1000136618

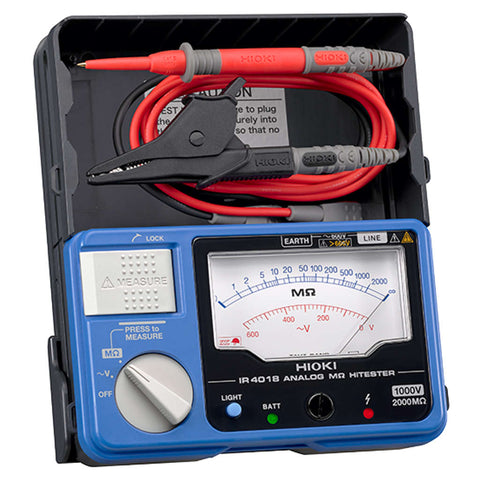

Hioki Analog Insulation Tester IR4018
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments
-
The IR4018-20 is a single-range, 1000V/2000MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing
-
Single range testing voltage of 1000 V
-
Test insulation resistance up to 2000 MΩ
-
Built tough to withstand a 1-meter drop onto a concrete floor
-
Bright LED luminous scale
-
Check for live circuits and battery status
-
Integrated hard case for quick and easy storage without disconnecting the leads
-
Robust, Damage-Resistant Design
-
These instruments feature a robust design that can withstand being dropped onto concrete from a height of 1m
-
Difficult to damage, this insulation tester is ideal for use in the field
-
White LED Lighting That’s Easy To Read In Dim Locations In The Field
-
The scale is lit by a white LED, ensuring that insulation resistance values are easy to read, even when using the instrument in a dim location
-
Continuous Monitoring Of Battery Life
-
You can keep track of remaining battery life since it’s shown on the LED, eliminating the need to worry about sudden loss of battery power in the field
-
Measurement Switch Designed For Outstanding Ease Of Use
-
The instrument’s measurement switch can be operated with just the thumb
-
Press for a single measurement or lift up for continuous measurement of insulation resistance
-
Remote Control To Start And Stop Insulation Resistance Measurement From The Leads
-
By using switch-equipped measurement leads, you can start and stop insulation resistance measurement remotely
-
There’s also a handy light for improved convenience when working in dim locations
ProductSpecification
| Brand | Hioki |
| Product Type | Insulation Tester |
| Product Model | IR4018 |
| Rated Output Voltage | 1000 V DC |
| Effective Maximum Indicated Value | 2000 MΩ |
| Accuracy 1st Effective Measuring Range | ±2 % of scale length, 2 M to 1000 MΩ |
| Lower Limit Resistance | 1 MΩ (measurement resistance value to maintain testing voltage) |
| Overload Protection | 1200 V AC (10 sec.) |
| AC Voltage Range | 0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, |
| Other Functions | Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge |
| Power Supply | LR6 (AA) alkaline batteries ×4, Continuous use: 15 hours (no load) |
| Included Accessories | Test Lead L9787 ×1, LR6 (AA) alkaline batteries ×4, Instruction manual ×1, Shoulder strap ×1 |
| Dimensions (W x H x D) | 159 x 177 x 53 mm 6.26 x 6.97 x 2.09 Inch |
| Weight | 610 g / 21.5 oz |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) L x B x H | 30 x 30 x 18 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.650 kg |
| Generic Name | Analog Insulation Tester |
| Packer Details | Hioki Unit No. 123 & 124, 1st Floor, Suncity Business Tower, Golf Course Road, Gurugram - 122003, Haryana, India Phone : 08035948127 |
| Importer Details | Hioki Unit No. 123 & 124, 1st Floor, Suncity Business Tower, Golf Course Road, Gurugram - 122003, Haryana, India Phone : 08035948127 |
| Country Of Origin | India |
