SKU # 1000136621

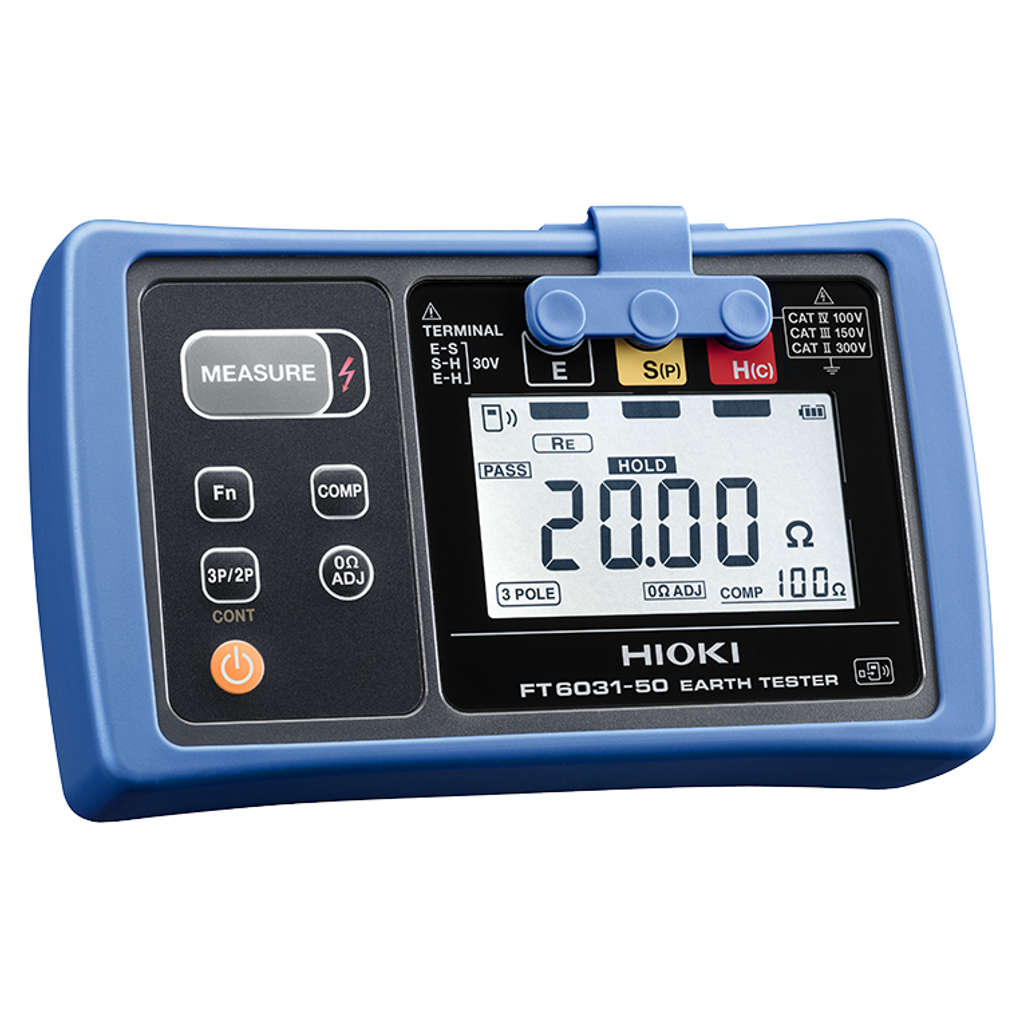

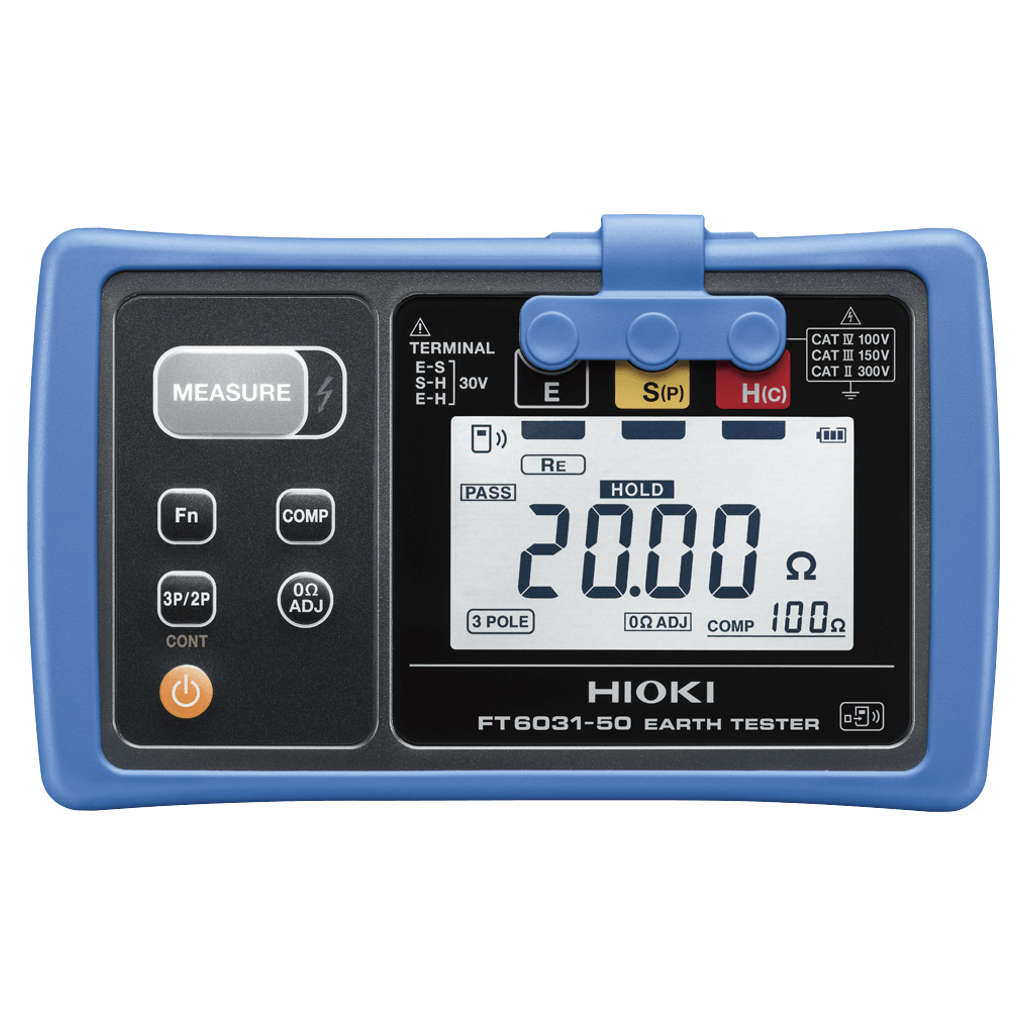

Hioki Earth Tester FT6031-50
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as prevent damage to equipment
-
The FT6031-50 is a IP67 dustproof and waterproof two-pole or three-pole ground resistance tester with large, easy-to-read display, highly sensitive earthing rods, and innovative cable winder that significantly reduces the amount of time needed to complete earth resistance tests
-
Wireless Support - Wireless Communication Capability For Even Greater Convenience Than FT6031 (Legacy Model)
-
Compatible with Wireless Adapter Z3210 (optional)
-
It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings
-
Instantly Create Reports By A Free App (GENNECT Cross)
-
GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports
-
The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos
-
Easily Transfer Measurement Data To An Excel File
-
Excel Direct Input function allows you to input measurement values directly and automatically into an Excel file once the instrument's auto-hold function is activated
-
(Wireless Adapter Z3210 is necessary)
-
Excellent Noise Resistance
-
Allowable earth potential: 25.0 V rms
-
Expanded allowable earth voltage range from 10 V rms to 25 V rms
-
Even in an environment where the earth voltage is 25 V rms, stable ground resistance can be measured
-
Dustproof And Waterproof Enclosure For Robust Performance In The Field
-
IP67 dustproof and waterproof
-
Since the FT6031-50’s enclosure is designed to keep out dust, it can be used with peace of mind in settings where it would be exposed to mud and dust
-
And if the instrument gets dirty, it can be rinsed clean with water
-
Using A Grounding Resistance Meter: Two-Pole And Three-Pole Methods
-
You can select from two grounding resistance measurement methods (two-pole or three-pole)
-
The instrument switches the internal connection automatically when the selection key is pressed,
so there is no need to connect a short bar or other fixture -
Three-Pole Method:
Measure grounding resistance after inserting supplemental grounding rods into the ground -
Two-Pole Method:
-
Class D ground installations can be measured by using the Class B ground of a pole-mounted transformer
-
Dramatically Faster Measurement Setup (Preparation)
-
Thin Supplemental Grounding Rods
Easier to insert rods into and remove them from the ground -
The rods are made of rigid, corrosion-resistance stainless steel
-
Only A Single Insertion
Allowable resistance of the supplemental grounding electrodes has been increased by a factor of 10 -
This enhancement eliminates the inconvenience of setting and resetting the rods over and over again when the allowable resistance is exceeded, for example in dry soil conditions
-
Digital Grounding Resistance Meter Featuring Easy Operation
-
The FT6031-50 is extremely easy to operate: just press the MEASURE key
-
The instrument will automatically complete the following sequence of operations:
ground potential check → supplemental grounding electrode check → grounding resistance measurement -
Auto-range operation eliminates the need to switch ranges since the instrument automatically selects the optimal range
-
Tangle- And Twist-Free Measurement Cord Winders
-
Easily rewind long measurement cords
-
Hioki’s winders can rewind the cord about twice as fast as the reels, dramatically reducing the amount of time needed to clean up after measurement
-
Auxiliary grounding rods can also be stored
ProductSpecification
| Brand | Hioki | ||
| Product Type | Earth Tester | ||
| Product Model | FT6031-50 | ||
| Measurement System | Two-electrode method/three-electrode method (switchable) | ||
| Measurement Range | 20 Ω (0 Ω〜20.00 Ω) | 200 Ω (0 Ω〜200.0 Ω) | 2000 Ω (0 Ω〜2000 Ω) |
| Accuracy | ±1.5% rdg ±8 dgt | ±1.5% rdg ±4 dgt | ±1.5% rdg ±4 dgt |
| Earth Voltage | 0〜30.0 V rms | ||
| Allowable Earth Potential | 25.0 V rms (DC or sine wave) | ||
| Dustproof And Waterproof | IP65/IP67 (EN60529) | ||
| Power Supply | LR6 Alkaline battery ×4, Possible number of measurements: 500 times (measurement conditions: three-electrode method, measuring 10 Ω at 10-second intervals without Z3210 installed) | ||
| Functions | Live wire warning, zero-adjustment, continuous measurement mode, wireless communication (only when Z3210 is connected), and comparator | ||

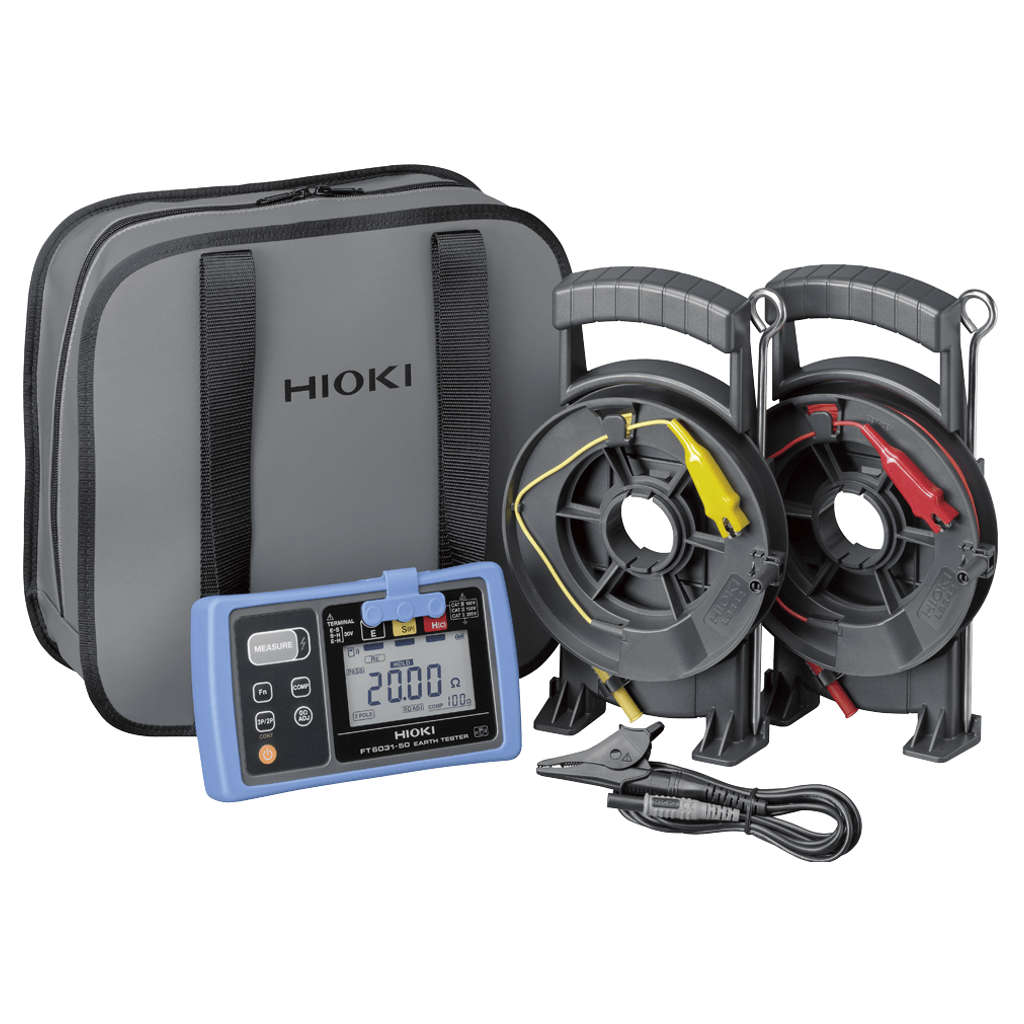

| Included Accessories | Auxiliary Earthing Rod L9840 (2 piece set) ×1, Measurement Cable L9841 (black 4 m) ×1, Measurement Cable L9842-11 (yellow 10 m, equipped with winder) ×1, Measurement Cable L9842-22 (red 20 m, equipped with winder) ×1, Carrying Case C0106 ×1, Protector ×1, LR6 Alkaline battery ×4, Instruction manual ×1 | ||
| Dimensions (W x H x D) | 185 x 111 x 44 mm 7.28 x 4.37 x 1.73 Inch | ||
| Weight | 570 g / 20.1 oz | ||
| Warranty | As Per Manufacturer Terms and Condition | ||
OtherDetails
| Dimension (CM) L x B x H | 18.5 x 11.1 x 4.5 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.600 kg |
| Generic Name | Earth Testers |
| Packer Details | Hioki Unit No. 123 & 124, 1st Floor, Suncity Business Tower, Golf Course Road, Gurugram - 122003, Haryana, India Phone : 08035948127 |
| Importer Details | Hioki Unit No. 123 & 124, 1st Floor, Suncity Business Tower, Golf Course Road, Gurugram - 122003, Haryana, India Phone : 08035948127 |
| Country Of Origin | India |
