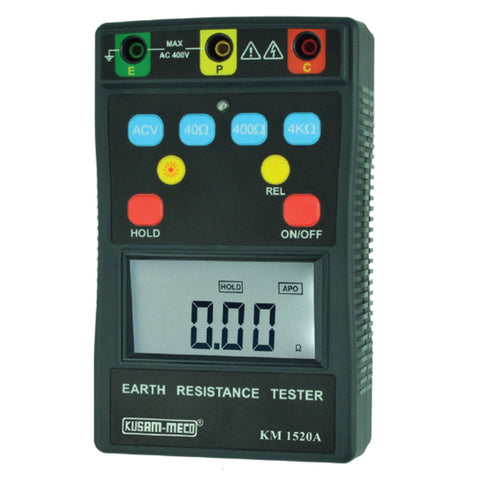

Kusam-meco Digital Earth Resistance Tester 3 Terminal KM 1520A

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Digital Earth Resistance Tester is a very versatile & handy instrument for checking Earth Resistance
-
It consists of the indicator & set of 3 spikes (stake) and connecting wires
-
Earth Resistance is measured by putting the spikes in the earth at distance of 5-10m (as shown below) & switching ON the instrument indicates the Earth Resistance directly in ohms
-
Low 2mA measuring current permits earth resistance to test without tripping earth leakage current circuit breakers in the circuit
-
Capable of measuring earth voltage(Vac)
-
Auto power off function
-
The timer operates automatically about three to five minutes after the”PUSH BUTTON SWITCH” and “Timer ON BUTTON” are pressed together This will keep the test “ON” for about three to five Minute
-
Then auto power off
-
Battery operated
-
Data Hold function
-
Small and light weight
-
EN61010-1 CAT IV 400V
-
Display Back-light
-
External probe
-
CE-Mark approval
Product Specification
Brand |
Kusam-meco |
Product Model |
KM 1520A |
Product Type |
Earth Resistance Tester |
Power Supply |
1.5 V X 6.Type AA batteries |
Measurement Ranges |
|
Earth Resistance |
0-40Ω / 0-400Ω / 0-4000Ω |
Earth Voltage |
0-400V AC (40-500Hz) |
Accuracy |
|
Earth Resistance |
±(2%rdg + 3dgts) |
Earth Voltage |
±(2%rdg + 3dgts) |
Earth Resistance Resolution |
0-40Ω (0.01Ω),0-400Ω (0.1Ω),0-4000Ω (1Ω) |
Display |
3¾ Digit 4000 counts LCD Back-Light Display |
Measurement System |
Earth Resistance By Constant Current Inverter 820Hz Approx. 2mA |
Low Battery Indication |
“B” Symbol Appears On The Display |
Data Hold Indication |
“DH” Symbol Appears On The Display |
Over Range Indication |
"1" (MSD) |
Open Circuit Indication |
LED Will Be Unlit |
Operating Temperature & Humidity |
0 ~ 40°C; 80% RH Max |
Measure Earth Voltage (VAC) |
0-400V |
Dimension |
163(L) X 102(W) X 50(D)mm |
Weight |
480g Approx.(battery Included) |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Earth Testers |
Manufacturer Details |
Kusam Electrical Industries Limited C-325, 3rd Floor, Antop Hill Warehousing Co. Ltd., Vidyalankar College Road, Antop Hill, Wadala East, Mumbai-400037. Maharashtra, India Phone : 022 - 27754546 Email Id : sales@kusam-meco.co.in |
Packer Details |
Kusam Electrical Industries Limited C-325, 3rd Floor, Antop Hill Warehousing Co. Ltd., Vidyalankar College Road, Antop Hill, Wadala East, Mumbai-400037. Maharashtra, India Phone : 022 - 27754546 Email Id : sales@kusam-meco.co.in |
Country of Origin |
India |
