SKU # 1000070128

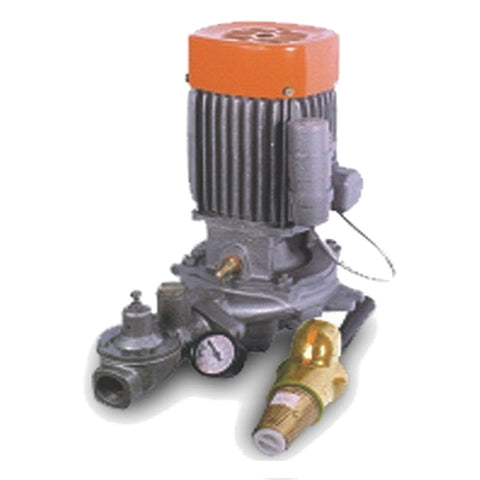

Kirloskar Single Phase Jet Pump 2.0HP KJ 10V / 4T6

Kirloskar Single Phase Jet Pump 1.0HP KJ 10V / 4T6

Visit the Kirloskar Store

₹ 14,850.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • These pumps have suction lift upto 52 meters

  • There is no moving parts inside the well and hence ease in servicing

  • These can withstand voltage fluctuations from 180-240 volts

  • The motor parts are dynamically balanced in order to reduce vibrations

  • Impeller is of cast iron

  • These are widely used in gardening, irrigation, lawn sprinklers and industries for clear water handling

  • Features:

  • Can withstand wide voltage fluctuations : From 180 - 240 Volts (for single phase)

  • Suction lift upto 52 meters

  • No moving parts inside the well, hence easy in servicing

  • Available with twin type as well packer type jet units in vertical as well as horizontal version

  • Designed to prevent overloading and motor burning

  • Models are with IP-44 protection and Class 'B' insulation

  • Three phase models are also available with IP - 55 protection on request

  • Dynamically balanced rotating parts ensure minimum vibrations

  • Replaceable wearing parts and hence longer life

  • CED coated wetted components for long life & rust free operation

  • More hygienic & potable for drinking water

  • Fitted with shield ball-bearing- lubricated for life

  • Application:

  • Gardening & irrigation

  • Lawn Sprinklers

  • Industries, for clean water handling

  • Water supply for domestic use in high-rise Apartments, Buildings and Hotels

Product Specification

Brand

Kirloskar

Product Type

Jet Pump

Product Model

KJ 10V

Jet Unit Code

4T6

Power

HP : 1.0

kW : 0.75

Pipe Size (cm)

DEL. : 32

PRES : 25

DIS : 25

Full Load Current(Amps)

6.5

No Of Phase

Single Phase

Impeller

Cast Iron

Delivery Casing

Cast Iron

Motor Body

Cast Iron

Shaft

Carbon Steel

Jet Unit

Cast Iron/Stainless Steel


Depth To Low Water Level In Meter

Capacity In Liter Per Hour

9

1800

12

1790

15

1525

18

1300

21

1090

24

900

27

725

30

570

33

432

36

300

39

180

42

120

Warranty

As Per Manufacturer Terms & Conditions


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Jet Pumps

Manufacturer Details

Kirloskar Brothers Limited (KBL) Yamuna,Survey No. 98/(3-7), Baner Pune 411 045 India Phone : 1800-123-4443 Email ID: marketing@kbl.co.in

Packer Details

Kirloskar Brothers Limited (KBL) Yamuna,Survey No. 98/(3-7), Baner Pune 411 045 India Phone : 1800-123-4443 Email ID: marketing@kbl.co.in

Country of Origin

India
