SKU # 1000140138

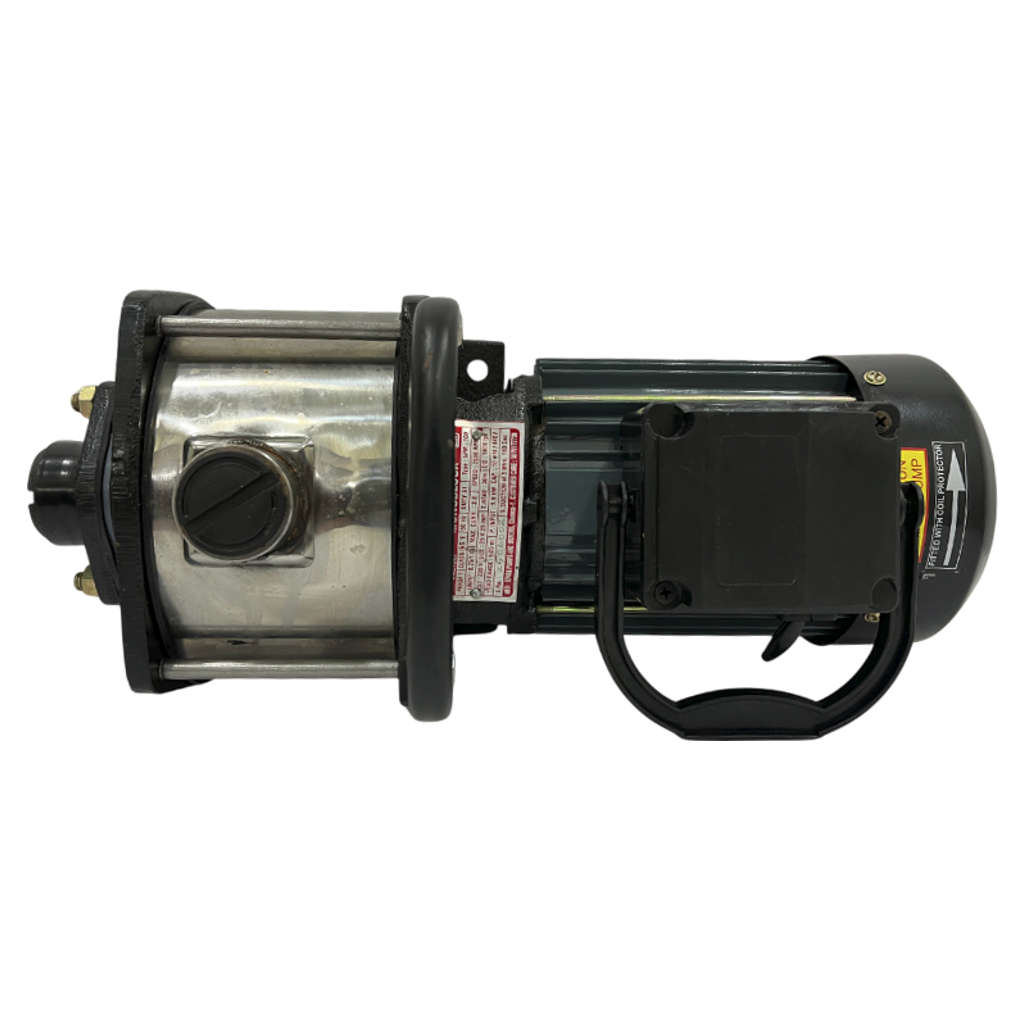

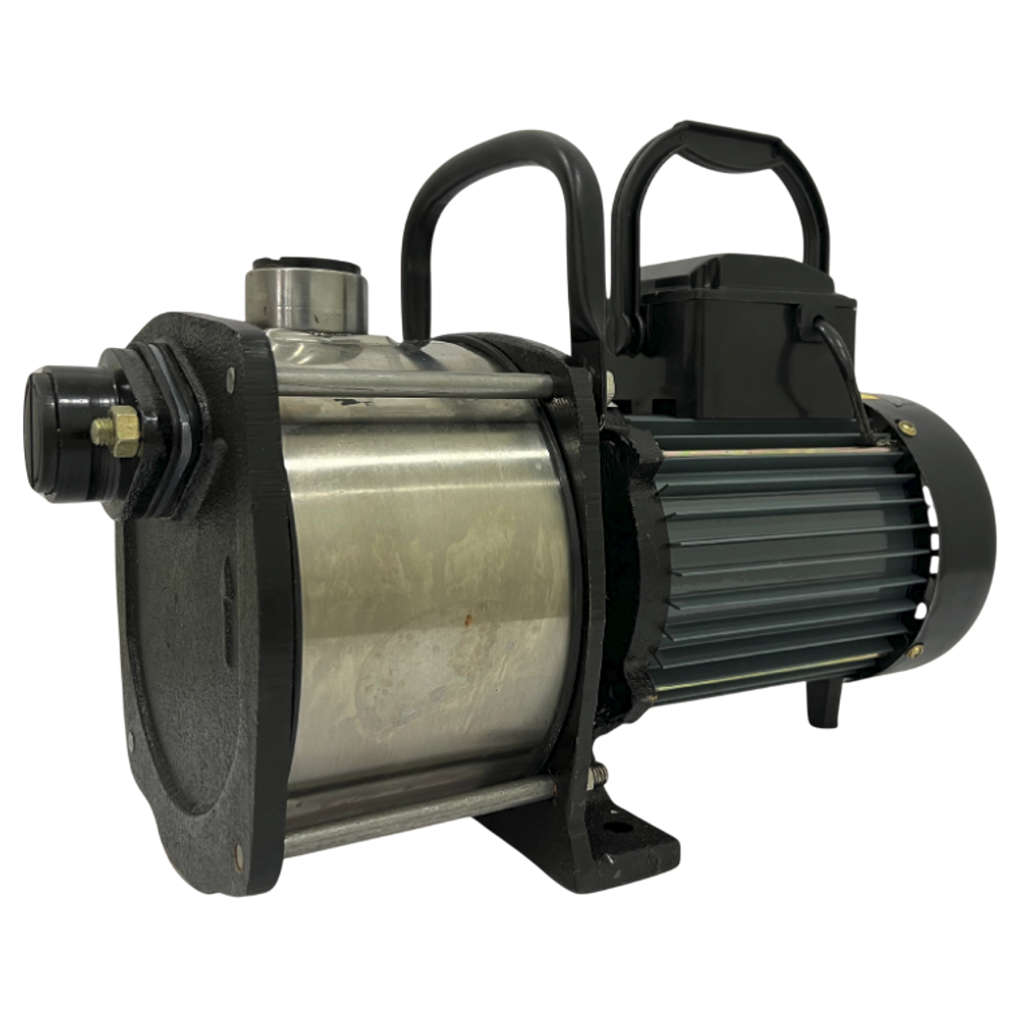

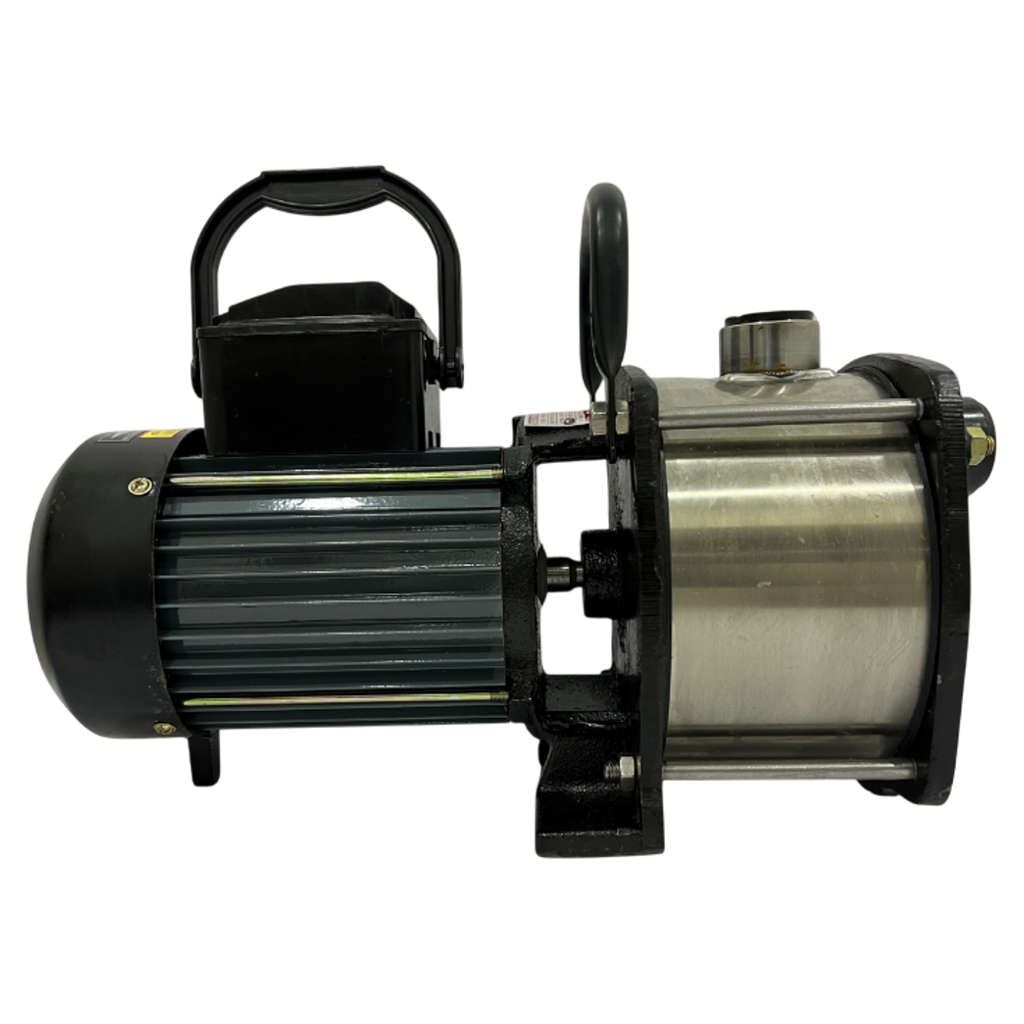

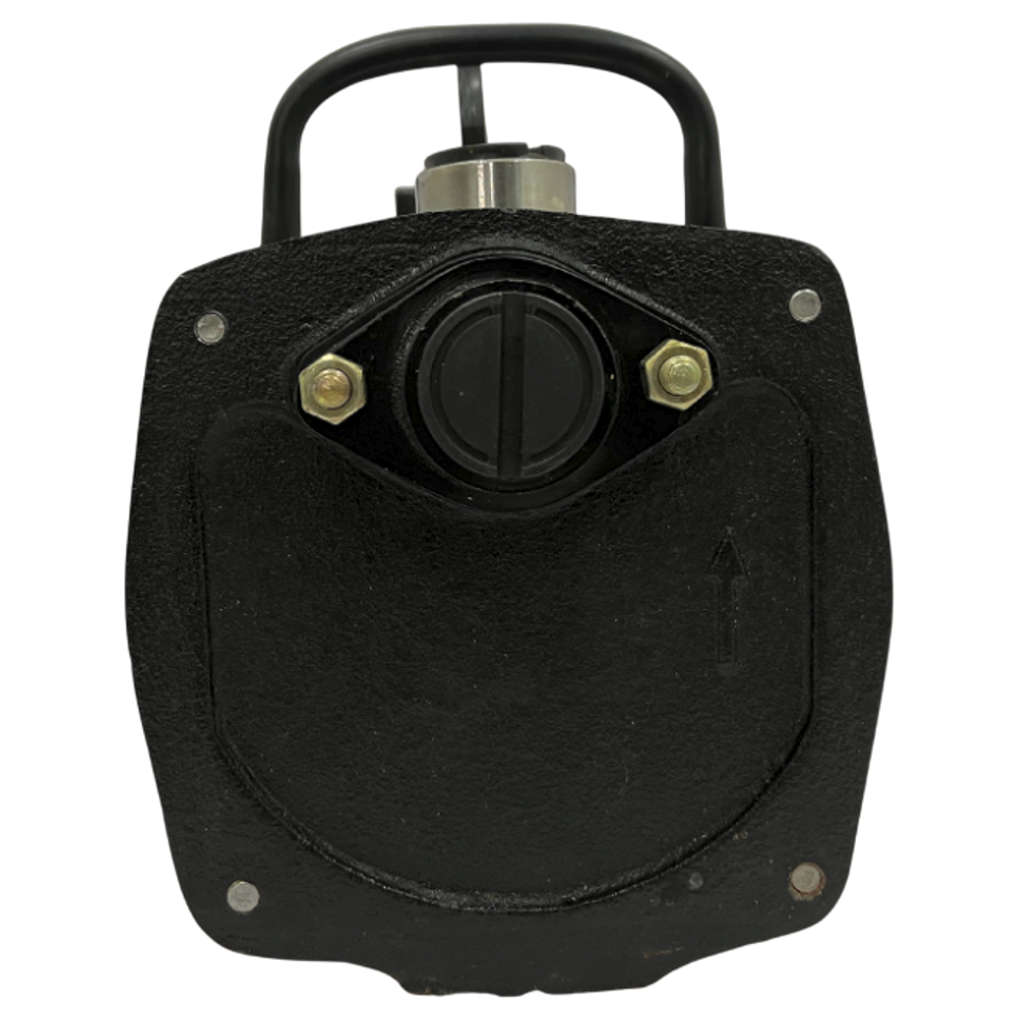

Senba Shallow Well Jet Pump Single Phase 1 HP SWJ-100

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
A shallow well pump is a water pump designed for wells that are 25 feet deep or less
-
It draws water through suction, working similarly to a straw, and is typically more affordable and easier to maintain because it is located above ground
-
These pumps are ideal for residential or light agricultural use where the water table is close to the surface
-
Applications
-
Residential, construction site,Pressure boosting, car washing,Gardens, small lawn sprinklers
Product Specification
| Brand | Senba |
| Product Type | Jet Pump |
| Product Model | SWJ-100 |
| Technical Specifications | |
| Power | 1 HP |
| Speed | 2900 RPM |
| Voltage Range | 180v-240v (1ph)—50 HZ |
| Duty | S1 ( Continuous) |
| Protection | IP44 |
| Insulation | B Class |
| Pipe Size | 25*25 mm |
| Head Range | 6-36 mtr |
| Flow Range | 10 to 40 LPM |
| Head (m) | Discharge (LPM) |
| 6 | 45 |
| 12 | 43 |
| 15 | 40 |
| 18 | 38 |
| 21 | 33 |
| 24 | 28 |
| 27 | 23 |
| 30 | 18 |
| 36 | 15 |
| Operating Conditions | |
| Suction Lift | Up To 9 Metre |
| Maximum Liquid Temperature | 50 deg cel |
| Maximum Ambient Temperature | 40 deg cel |
| Material | |
| Pump Casing & Flanges | Cast iron/ss & CI |
| Motor Body | Alu extruded+ powder coated |
| Impeller | Noryl/cast iron |
| Shaft | ss 410 |
| Winding | Copper |
| Bearing | Double Shielded Ball Bearing |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 35 x 25 x 36 |
| Unit of Measurement | 1 Piece |
| Weight | 8.8 kg |
| Generic Type | Jet Pumps |
| Manufacturer Details | Senba Pumps & Motors 15/29, Thambuchetty Street Support: 9090909090 Email: senbapumpsandmotors@gmail.com |
| Packer Details | Senba Pumps & Motors 15/29, Thambuchetty Street Support: 9090909090 Email: senbapumpsandmotors@gmail.com |
| Country of Origin | India |
