SKU # 1000084237

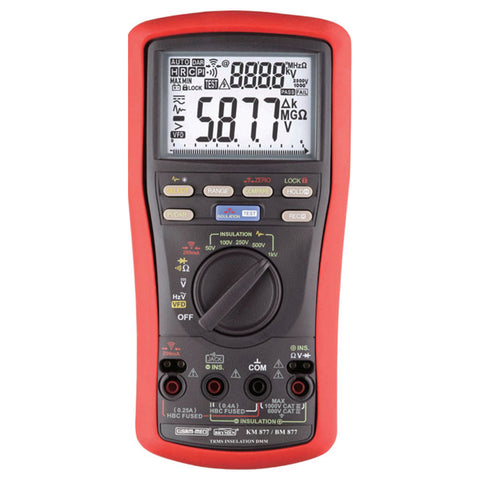

Kusam-meco True RMS Digital Insulation Multimeter KM 877

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
VFD V & Hz readings
-
Paper White Backlight LCD Display
-
Record MAX / MIN readings
-
Display Hold Function
-
Dual Digital Display
-
PI & DAR Function
-
Autoranging
-
Pass /Fail Insulation Resistance Compare function; 12 selectable Preset Values
-
LOCK-Test mode for Insulation Resistance & Earth Continuity Test
-
BeepJack audible & visible input warning
-
Remote Probe for insulation Resistance & Earth Continuity Test
-
Functions
-
DC/AC Voltage , VFD AC Voltage, Insulation Resisitance, Resistance, Earth Continuity Test, Hz Line Level Frequency
Product Specification
|
Brand |
Kusam-meco |
|
Product Model |
KM 877 |
|
Product Type |
Insulation Multimeter |
|
Power Supply |
Four Alkaline AA batteries |
|
Power Consumption |
4.5mA Typical Except : ACV +Hz & VFD ACV +Hz :7.0mA |
|
Operating Temperature |
-10°C ~ 40°C |
|
Storage Temperature |
-20°C ~ 60°C, < 80% R.H. (with battery removed) |
|
Altitude |
Operating Below 2000m |
|
Sensing |
AC, True RMS |
|
Display |
3-5/6 digits 6000 Counts Backlight LCD Display |
|
Update Rate |
5 Per Second Nominal |
|
61 Segments Analog Bar Graph |
60 Per Second Max |
|
Earth Continuity Test |
110mA @20 Ω range, 220mA @2.0 Ω Range |
|
Tester Can Perform At Least 3000 Earth Continuity Test Measurements With New Alkaline Batteries At Room Temperature These Are Standard Test Of 1 Ω With A Duty Cycle Of 5 Seconds On & 25 Seconds Off |
|
|
Insulation Resistance @ 1mA Test Current |
50V Output Voltage : 25mA 100V
Output Voltage : 45mA 500V
Output Voltage : 170mA |
|
Tester
can perform at least 950 Insulation Tests with new alkaline
batteries at room temperature |
|
|
Temperature Coefficient |
Nominal 0.15 x (Specified Accuracy)/ °C @(-10°C~18°C or 28°C~40°C), or Otherwise Specified |
|
Low Battery |
Approx. 4.6V |
|
APO Timing |
Idle for 20 Minutes |
|
APO Consumption |
50 µA Typical |
|
Polarity |
Automatic |
|
Relative Humidity |
Maximum Relative Humidity 90% For Temperature Up to 28°C Decreasing Linearly To 50% Relative Humidity At 40°C |
|
Pollution degree |
2 |
|
IP Rating |
IP40 |
|
Dimension |
208(L) X 103(W) X 64.5(H) mm with holster |
|
Weight |
635 gm with holster |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Digital Insulation Multimeter |
Manufacturer Details |
Kusam Electrical Industries Limited C-325, 3rd Floor, Antop Hill Warehousing Co. Ltd., Vidyalankar College Road, Antop Hill, Wadala East, Mumbai-400037. Maharashtra, India Phone : 022 - 27754546 Email Id : sales@kusam-meco.co.in |
Packer Details |
Kusam Electrical Industries Limited C-325, 3rd Floor, Antop Hill Warehousing Co. Ltd., Vidyalankar College Road, Antop Hill, Wadala East, Mumbai-400037. Maharashtra, India Phone : 022 - 27754546 Email Id : sales@kusam-meco.co.in |
Country of Origin |
India |
