SKU # 1000084236

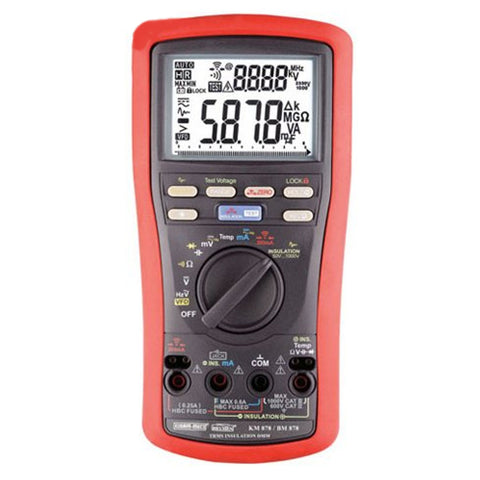

Kusam-meco True RMS Digital Insulation Multimeter KM 878

Kusam-meco True RMS Digital Insulation Multimeter KM 878

Visit the Kusam-meco Store
Mid-Year Value Sale

₹ 38,570.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 10-14 Business days

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • VFD V & Hz readings

  • Paper White Backlight LCD Display

  • Record MAX / MIN readings

  • Display Hold Function

  • Dual Digital Display

  • Autoranging

  • LOCK-Test mode for Insulation Resistance & Earth Continuity Test

  • BeepJack TM audible & visible input warning

  • Remote Probe for insulation Resistance & Earth Continuity Test

  • Functions

  • DC/AC Voltage , VFD AC Voltage, AC / DC mV, AC / DC mA, Insulation Resisitance, Resistance, Capacitance, Earth Continuity Test, Hz Line Level Frequency, Temperature

Product Specification

Brand

Kusam-meco

Product Model

KM 878

Product Type

Insulation Multimeter

Power Supply

Four Alkaline AA batteries

Power Consumption

4.5mA Typical Except :ACV +Hz & VFD ACV +Hz: 7.0mA

Operating Temperature

-10°C ~ 40°C

Storage Temperature

-20°C ~ 60°C, < 80% R.H(With Battery Removed)

Altitude

Operating Below 2000m

Sensing

AC, True RMS

Display

3-5/6 Digits 6000 Counts Backlight LCD Display

Update Rate

5 Per Second Nominal

61 Segments Analog Bar Graph

60 Per Second Max

Earth Continuity Test

110mA @20 Ω range, 220mA @2.0 Ω Range

Tester Can Perform At Least 3000 Earth Continuity Test Measurements With New Alkaline Batteries At Room Temperature

These Are Standard Test Of 1 Ω With A Duty Cycle Of 5 Seconds On & 25 Seconds Off

Insulation Resistance @ 1mA Test Current

50V Output Voltage : 25mA

100V Output Voltage : 45mA
250V Output Voltage : 85mA

500V Output Voltage : 170mA
1000V Output Voltage : 440mA

Tester can perform at least 950 Insulation Tests with new alkaline batteries at room temperature
These are standard tests of 1000V into 1M ω with a duty cycle of 5 seconds on and 25 seconds off

Temperature Coefficient

Nominal 0.15 x (Specified Accuracy)/ °C @(-10°C~18°C or 28°C~40°C), or Otherwise Specified

Low Battery

Approx. 4.6V

APO Timing

Idle for 20 Minutes

APO Consumption

50 µA Typical

Polarity

Automatic

Relative Humidity

Maximum Relative Humidity 90% For Temperature Up to 28°C Decreasing Linearly To 50% Relative Humidity At 40°C

Pollution degree

2

IP Rating

IP40

Dimension

208(L) X 103(W) X 64.5(H) mm with holster

Weight

635 gm with holster

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Digital Insulation Multimeter

Manufacturer Details

Kusam Electrical Industries Limited C-325, 3rd Floor, Antop Hill Warehousing Co. Ltd., Vidyalankar College Road, Antop Hill, Wadala East, Mumbai-400037. Maharashtra, India Phone : 022 - 27754546 Email Id : sales@kusam-meco.co.in

Packer Details

Kusam Electrical Industries Limited C-325, 3rd Floor, Antop Hill Warehousing Co. Ltd., Vidyalankar College Road, Antop Hill, Wadala East, Mumbai-400037. Maharashtra, India Phone : 022 - 27754546 Email Id : sales@kusam-meco.co.in

Country of Origin

India
