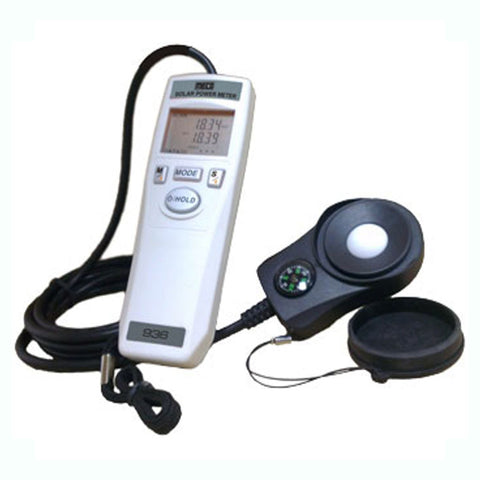

Meco Solar Power Meter (Irradiance Meter) With Orientation And Tilt Angle 936

Meco Solar Power Meter (Irradiance Meter) With Orientation And Tilt Angle 936

Visit the Meco Store
Bestomart's Choice

₹ 17,170.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • This instrument is designed to measure Solar Power in the range from 400 to 1100 nanometers

  • The good Spectral Range, Orientation and Angular detection of meter allow users to conduct the most precise quantitative measurements of Solar Power Radiation

  • Solar Power Measurement with Orientation and Tilt Angle

  • Easy measurement for rate of daylight penetration

  • Auto change for measuring range

  • Auto power off with disable function

  • Instantaneous display Ave/Min/Max values

  • 20 points memory

  • Socket of tripod mounting

  • Magnetic mount

  • Backlit LCD and 4 digits triple display

  • Applications

  • Solar Power Plant

  • Solar radiation measurements

  • Solar power research for location of the solar panels or solar water heater

  • Physics and optical laboratories

  • Meteorology

  • Agriculture

  • Windows performance - calculate the rate of daylight penetration

Product Specification

Brand

Meco

Product Model

936

Product Type

Solar Power Meter

Sensor

High Sensitivity Silicon Photodiode

Spectral Response

400~1100 nm

Range

2 2 0~2000 W/m (0~ 634 BTU / ft .h)

Accuracy (At 23°C, 60% Rh)

±10W/m2 (±3 BTU/ ft2 .h) or ±5% (whichever is greater)


Resolution

0.00~99.99 W/m2 : 0.01 W/m2,

100.0~999.9 W/m2 : 0.1 W/m2 ,1000~2000 W/m2 : 1 W/m2

0.00~99.99 BTU/ft2.h : 0.01 BTU/ ft2.h,

100.0~634.0 BTU/ft2.h : 0.1 BTU/ ft2.h

Angular Accuracy

Cosine Corrected < 7% (angle < 60°)

Tilt Angle Range

0~90°

Tilt Angle Accuracy (at 23°C, 60% Rh)

±1.2°(< 60°), Additional Temperature Induced Error±0.1°/°C from23°C

Sample Time

Approx. 0.4 Second

Operation Temp. & Relative Humidity

0°C~50°C (32°F~122°F) Less than 80% RH

Store Temp. & Relative Humidity

-10°C~60°C (14°F~140°F) Less than 85% RH

Auto Power Off

Enable or Disable (Auto Power off after approx. 10 minutes)

Battery Life

Approx. 30 Hours for Continuous Use

Max / Min / Avg

Yes

Data Hold

Yes

Low Battery Indication

Yes

Backlight Function

Yes

Zero Adjustment

Yes

Over Range Indication

Yes (“--HI--“)

Memory

Yes ( 20 Points Memory )

Compass

Yes

Solar Transmission Measurement

Yes

Tripod Socket

Yes

Accessories

9V Battery, Instruction Manual, Carrying Case

Dimensions

Main Instrument : 140 x 49 x 29 mm (approx.) Sensor Probe : 83 x 54 x 26 mm (approx.)

Weight

220gms Including Battery (approx.)

Warranty

1 Year


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Solar Power Meter

Manufacturer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Packer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Country of Origin

India
