SKU # 1000136535

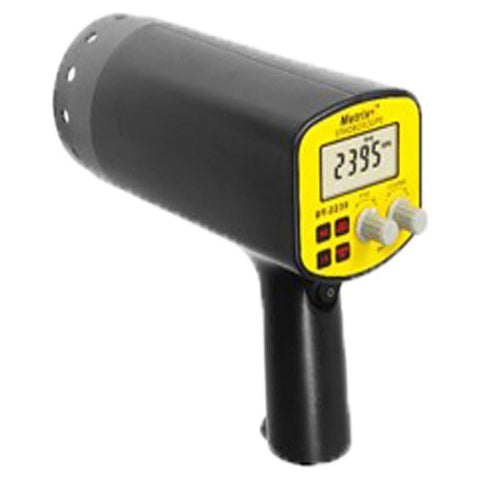

Metrix Plus Digital Stroboscope DT 2239

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
ProductDescription
-
Key Features
-
Digital Stroboscope with fine tuning and measuring range upto 12,000 FPM
-
Features
-
Automatic stop flashing to increase flashtube lifetime
-
Internal/external triggering and x2 / /2 button for fast adjustment
-
Uses photoelectric signal for external triggering, achieves automatic tracking function of the pattern
-
Applications
-
This is used to provide image of single, two or multiple stillness for the vibrating object, rapidly rolling or a periodic motion object and can also observe movement tracks
-
Machine parts and vibrating string are common examples
-
Measuring Principle
-
This instrument consists of a flashtube which produces brief repetitive flashes of light
-
Usually the rate of the stroboscope is adjustable to different frequencies
-
When a rotating or vibrating object is observed with the stroboscope at its vibration frequency (or a sub-multiple of it), it appears stationary
-
Thus, stroboscopes are also used to measure frequency
ProductSpecification
| Brand | Metrix |
| Product Type | Stroboscope |
| Product Model | DT 2239 |
| Display | 10mm 5-digits LCD |
| Measurement Range | 50 ~ 12,000FPM |
| Accuracy | ±(0.05%n + 1d) |
| Resolution | 0.1FPM(50 ~ 999.9FPM), 1FPM(over 1000FPM) |
| Sampling Time | 3 sec |
| External Trigger Level | 3 ~ 24V with x2, /2 for fast check |
| H/L Range | Flashing light is much brighter at low range than at high range |
| Flash Tube Life | 100 million times |
| Regular Operating Conditions | No corrosive gas and electromagnetic fields |
| Operating Conditions | Temperature : 0 ~ 40°C, Humidity : <85% RH |
| Power Supply | AC 220V |
| Power Consumption | About 50W |
| Standard Accessories | Main unit, manual, adapter, hard carry case |
| Size | 215 x 85 x 180 mm |
| Weight | 1 kg |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 215 x 85 x 18 |
| Unit Of Measurement | 1 Piece |
| Weight | 1 kg |
| Generic Type | Digital Stroboscope |
| Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Country Of Origin | India |
