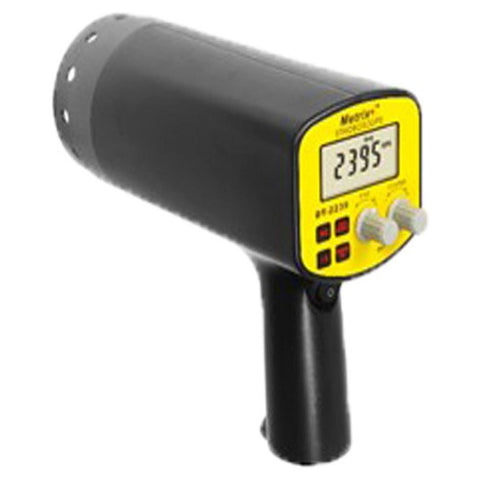

Metrix Plus Digital Stroboscope DT 2259A

Metrix Plus Digital Stroboscope DT 2259A

Visit the Metrix Plus Store

₹ 15,830.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Digital Stroboscope with fine tuning and measuring range upto 40,000 FPM

  • Features

  • Automatic stop flashing to increase flashtube lifetime

  • Internal/external triggering and x2 / /2 button for fast adjustment

  • Uses photoelectric signal for external triggering, achieves automatic tracking function of the pattern

  • Applications

  • This is used to provide image of single, two or multiple stillness for the vibrating object, rapidly rolling or a periodic motion object and can also observe movement tracks

  • Machine parts and vibrating string are common examples

  • Measuring Principle

  • This instrument consists of a flashtube which produces brief repetitive flashes of light

  • Usually the rate of the stroboscope is adjustable to different frequencies

  • When a rotating or vibrating object is observed with the stroboscope at its vibration frequency (or a sub-multiple of it), it appears stationary

  • Thus, stroboscopes are also used to measure frequency

ProductSpecification

Brand

Metrix Plus

Product Type

Stroboscope

Product Model

DT 2259A

Display

10mm 5-digits LCD

Measurement Range

50 ~ 40,000FPM

Accuracy

±(0.05%n + 1d)

Resolution

0.1FPM(50 ~ 999.9FPM), 1FPM(over 1000FPM)

Sampling Time

3 sec

External Trigger Level

3 ~ 24V with x2, /2 for fast check

H/L Range

Flashing light is much brighter at low range than at high range

Flash Tube Life

100 million times

Regular Operating Conditions

No corrosive gas and electromagnetic fields

Operating Conditions

Temperature : 0 ~ 40°C, Humidity : <85% RH

Power Supply

AC 220V

Power Consumption

About 50W

Standard Accessories

Main unit, manual, adapter, hard carry case

Size

215 x 85 x 180 mm

Weight

1 kg

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

215 x 85 x 18

Unit Of Measurement

1 Piece

Weight

1 kg

Generic Type

Digital Stroboscope

Manufacturer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Packer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Country Of Origin

India
