SKU # 1000136504

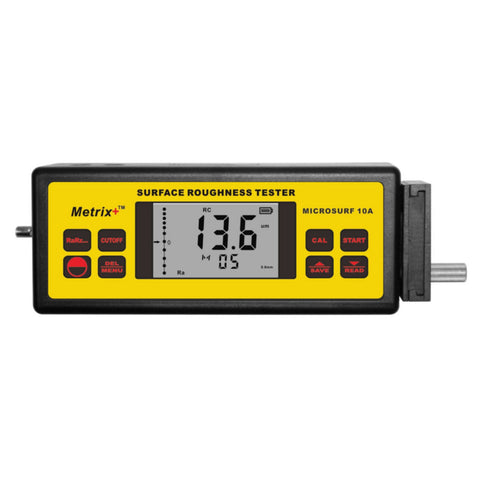

Metrix Plus Microsurf 10A Surface Roughness Tester
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Integrated probe compact Surface Roughness Tester with measuring range Ra upto 16um
-
Features
-
Multi-parameter measurement of Ra, Rq, Rz and Rt
-
Backlit LCD display with indication for proper probe alignment
-
Data storage and recall
-
Metric/Imperial conversion
-
Compact and low volume structure for convenient storage
-
Applications
-
Roughness is an important parameter when trying to find out whether a surface is suitable for a certain purpose
-
Rough surfaces often wear out more quickly than smoother surfaces
-
Rougher surfaces are normally more vulnerable to corrosion and cracks, but they can also aid in adhesion
-
A roughness tester is used to quickly and accurately determine the surface texture or surface roughness of a material
-
Few industries include automobile manufacturing and spare parts processing, machinery parts processing, metal processing equipment and accessories, surface engineering treatment, mold casting and precision manufacturing
-
Measuring Principle
-
This instrument has a sensor tip, using inductance type principle for measuring roughness
-
It is traversed over the sample, using a motor assembly, and its roughness will cause the sensor to be displaced
-
This displacement causes inductance of the sensor inductor to change and produces an analog signal proportional to the surface roughness
ProductSpecification
| Brand | Metrix Plus | |
| Product Type | Roughness Tester | |
| Product Model | Microsurf 10A | |
| Standards | ISO 4287 International standard, DIN 4768 German standard, JISB 601 Japanese standard, ANSI B46.1 American standard | |
| Measuring Range | Ra, Rq : 0.005 ~ 16.00 um / 0.020 ~ 629.9 uinch Rz, Rt : 0.020 ~ 160.0 um / 0.078 ~ 6299 uinch | |
| Accuracy | < + 10% | |
| Resolution | 0.001um when reading <10um 0.01um when reading >= 10um and <100um 0.1um when reading >= 100um | |
| Fluctuation Of Display Value | <=6% | |
| Profile Digital Filter | Filter contour : RC, PC-RC, Gauss Non-filter contour : D-P | |
| Sensor | Test Principle | Induction type |
| Radius of probe pin | 10um default 2um | |
| Material of probe pin | Diamond | |
| Measurement force of probe | 16mN(1.6gf) for 10um and 0.75mN(0.075gf) for 2um | |
| Probe angle | 90o | |
| Vertical radius of guiding head | 48mm | |
| Maximum driving stroke | 17.5mm / 0.7inch | |
| Cut off length | 0.25mm / 0.8mm / 2.5mm | |
| Driving Speed | When measuring | Vt = 0.135mm/s if sampling length = 0.25mm |
|
| Vt = 0.5mm/s if sampling length = 0.8mm | |
|
| Vt = 1mm/s if sampling length = 2.5mm | |
| During return | Vt = 1mm/s | |
| Probe Measuring Range | +80um | |
| Evaluation Length | 1 ~ 5L selectable | |
| Power | Li-ion rechargeable battery | |
| Working Conditions | Temperature : 0 ~ 50oC ; Humidity : <85% | |
| Standard Accessories | Main unit, probe, standard sample plate, charger with adapter, adjustable leg, sheath of sensor, operational manual | |
| Optional Accessories | PC interface, adaptor sleeve(extension rod), deep groove sensor | |
| Warranty | As Per Manufacturer Terms and Condition | |
OtherDetails
| Dimension (CM) - L x B x H | 158 x 64 x 52 |
| Unit Of Measurement | 1 Piece |
| Weight | 2 kg |
| Generic Type | Roughness Tester |
| Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Country Of Origin | India |
