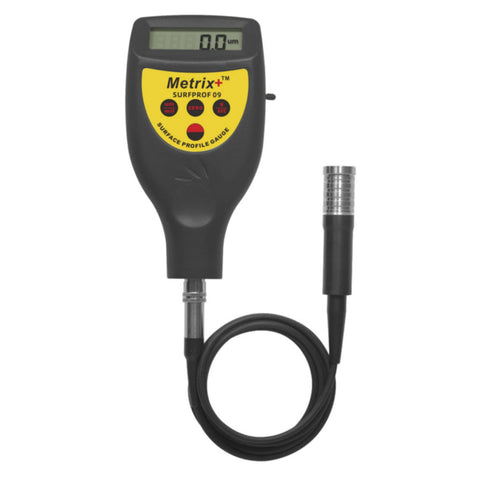

Metrix Plus Surfprof 09 Surface Roughness Tester

Metrix Plus Surfprof 09 Surface Roughness Tester

Visit the Metrix Plus Store

₹ 42,470.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Flexible probe surface profile gauge to measure peak-to-valley height of blast cleaned surfaces

  • Features

  • Flexible probe with tough tungsten carbide probe tip

  • Meets the international standards for profile testing

  • Average value measurement

  • Optional PC interface for real time data logging

  • Applications

  • Measuring and recording surface profile is important and determining factor in the application of coatings for its optimal performance

  • This is useful in all industries, like automotive, metal forming, forging, castings, etc

  • who work with coatings and blast cleaned surfaces, to make sure that surface profile is within admissible range

  • Measuring Principle

  • This instrument uses a tough tungsten carbide tip, which gets pressed on the material surface, to give the peak-to-valley distance, the surface profile height of the surface

  • Its like a depth micrometer with a probe tip for finer and accurate measurement

ProductSpecification

Brand

Metix+

Product Type

Roughness Tester

Product Model

Surfprof 09

Standards

ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000

Measuring Range

0 ~ 800um

Accuracy

+5% or +5um (whichever is greater)

Resolution

0.1um (<100um), 1um (100 ~ 800um)

Sensor

Tungsten carbide tip, inductance type principle of measurement

Tip Life

The tungsten carbide can last up to 20,000 readings and can be easily replaced by user in field. Cost per test is significantly lower than other test methods

Power

4 x 1.5V AAA batteries

Working Conditions

Temperature : 0 ~ 50oC ; Humidity : <80% RH

Standard Accessories

Main unit, cable probe, sample plate, operational manual, gift box packing

Optional Accessories

PC interface

Dimensions

126 x 65 x 28 mm

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

126 x 65 x 28

Unit Of Measurement

1 Piece

Weight

2 kg

Generic Type

Roughness Tester

Manufacturer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Packer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Country Of Origin

India
