SKU # 1000128039

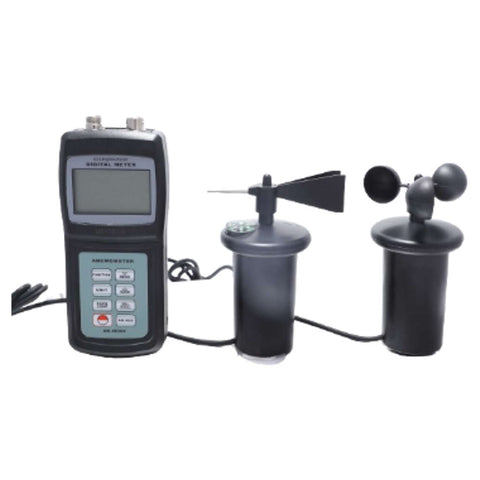

Mextech Digital Anemometer AM4836
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Application
-
Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department
-
Features
-
Display: 13mm 4 Digits LCD Display
-
PC Interface: RS232C Software & Cable
-
Low Battery Indicator
-
Automatic Power off 0-9 minutes set by users
Product Specification
| Brand | Mextech | ||
| Product Type | Digital Anemometer | ||
| Product Model | AM4836 | ||
| Display | 0.5″ (13 mm) 4-digit LCD | ||
| Measurement Units | |||
| Air Velocity | m/s, km/h, ft/min, knots | ||
| Air Flow | CMM (m³/min); CFM (ft³/min) | ||
| Beaufort Scale | Force; Wave Height: m | ||
| Direction | °from the North direction | ||
| Temperature | °C & °F | ||
| Air Velocity | Range | Resolution | Accuracy |
| m/s (meters per sec) | 0.4-45.0 | 0.1 m/s | ± (2%+0.1m/s) |
| km/h (kilo-meters/hour) | 1.4-162.0 | 0.1 km/hr | ±(2% +0.1km/hr) |
| ft/min (feet per minute) | 80-8860 | 0.1 ft/min | ±(2% + 1ft/min) |
| knots (nautical MPH) | 0.8-88.0 | 0.1 knots | ±(2% +0.1 knots) |
| Air Flow | Range | Resolution | Accuracy |
| CMM (cubic meters/min) | 0-9999 | 0.001 to1 | ± (2% +1m³/min) |
| CFM (cubic ft/min) | 0-9999 | 0.001 to1 | ± (2% +1ft³/min) |
| Beaufort Scale | 0-12 | 0.1 | ±0.5 |
| Direction | 0-360° | 22.5° | ±22.5° |
| Wave Height | 0-14 | 0.1 | ±0.1 |
| Air Temperature | 32 - 140°F 0-60 °C | 0.1 °F 0.1 °C | 0.9 °F 0.5 °C |
| Data Hold | Maximum Value | ||
| Data Memorized | 24 groups | ||
| Sampling Rate | reading per second approx | ||
| Sensors | Air velocity/flow sensor: 3-cup probe | ||
| Direction Probe | Low friction probe | ||
| Temperature Sensor | Precision thermostat | ||
| Data Output | RS 232 C serial interface | ||
| Power Supply | 4×1.5AAA size | ||
| Operating Temperature & Humidity | 32°F to 122°F (0°C to 50°C) | ||
| Operating Humidity | 80% RH | ||
| Velocity Sensor | 65 x 65 x 115 mm | ||
| Direction Sensor | 86 x 69 x 115 mm | ||
| Including Components | Optional Accessories Cable Software for RS232C | ||
| Dimension Main Instrument | 156 x 67 x 28 mm (6.1×2.6×1.1 Inch) | ||
| Weight | 260g (0.57lb) Including Batteries & Probe | ||
| Warranty | As Per Manufacturer Terms and Condition | ||
Other Details
| Dimension (CM) - L x B x H | 15.6 x 6.7 x 2.8 |
| Unit of Measurement | 1 Piece |
| Weight | 0.13 kg |
| Generic Type | Digital Anemometers |
| Manufacturer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Packer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Country of Origin | India |
