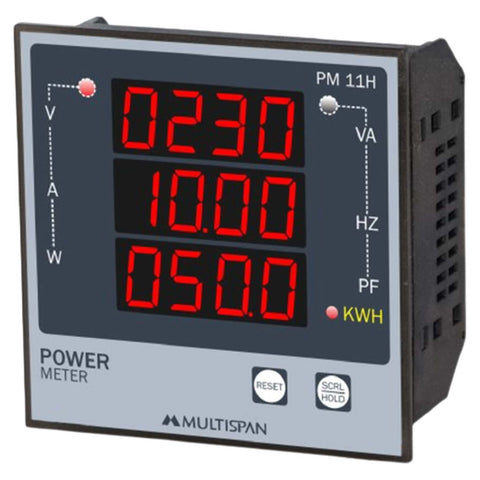

Multispan Multi Function Meter Single Phase PM-11 H

Multispan Multi Function Meter Single Phase PM-11 H

Visit the Multispan Store
Mid-Year Value Sale

₹ 3,190.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 3 Line display , 7 Segment LED Display

  • 7 + parameter with LED indication

  • CT Selectable up to 2000/5 or 1amps

  • RS-485 MODBUS Communication

Product Specification

Brand

Multispan

Product Type

Multi Function Meter

Product Model

PM-11 H

Input Signal

1Ø 2Wire

Voltage (L-N)

20-300V AC

Current ( ~A )

5/5A to 400/5A CT Ratio Selectable

KW Total

0.000-9999W

KWH Total

0.000-999999 kWh

Power Factor Average (PF)

0.100-1.000

KVA Total

0.000-9999 kVA

Frequency (Hz)

45-60 Hz

Communication

RS-485 MODBUS (Optional)

Accuracy

For Voltage & Current Class 0.5 / For Power & Energy Class 1.0

Power Supply

230V AC ±10%, 50Hz

No Of Phase

Single Phase

Dimension (HxWxD)

96 x 96 x 52 mm

Panel Cutout

92 x 92 mm


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Multi Function Meters

Manufacturer Details

Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445

Packer Details

Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445

Country of Origin

India
