LAST SOLD AT ₹ 4,510.00
SKU # 1000077994

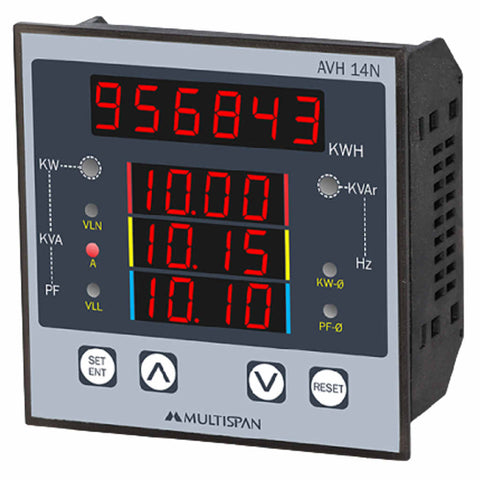

Multispan Multi Function Meter Three Phase AVH-14 N

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Specification
|
Brand |
Multispan |
|
Product Type |
Multi Function Meter |
|
Product Model |
AVH-14 N |
|
Input Signal |
3Ø 3 Wire / 3Ø 4Wire |
|
Voltage |
300V AC (L-N) / 520V AC (L-L) |
|
Current |
5/5A to 6000/5A CT Ratio Selectable |
|
Voltage (l-l) |
50-520V AC |
|
Voltage (l-n) |
30-300V AC |
|
Current ( ~a ) |
5/5A to 6000/5A CT Ratio Selectable |
|
Kw Total |
0.000-9999 kW |
|
Kw Per Phase |
0.000-9999 kW |
|
Kwh Total |
000.000-999999 kWh |
|
Power Factor Average (pf) |
0.100-1.000 |
|
Power Factor Per Phase (pf) |
0.100-1.000 |
|
Kva Total |
0.000-9999 kVA |
|
Kvah Total |
000.000-999999 KVAh |
|
Frequency (hz) |
45-60 Hz |
|
Kvar Total |
0.000-9999 kVAr |
|
Kvarh Total |
000.000-999999 KVArh |
|
Load Hours |
9999.59 Hrs/Min. |
|
No Load Hours |
9999.59 Hrs/Min. |
|
Rpm |
1500 Rpm |
|
Communication |
RS-485 MODBUS ( Optional) |
|
Accuracy |
For Voltage & Current Class 0.5 / For Power & Energy Class 1.0 |
|
Power Supply |
100-270V AC (SMPS), 50/60 Hz, Approx 4VA |
|
No Of Phase |
Three Phase |
|
Dimension (HxWxD) |
96 x 96 x 52 mm |
|
Panel Cutout |
92 x 92 mm |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Multi Function Meters |
Manufacturer Details |
Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
Packer Details |
Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
Country of Origin |
India |
