SKU # 1000133124

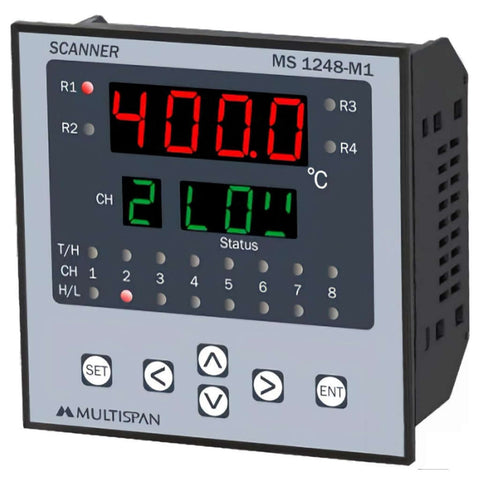

Multispan Temperature Scanner 8 Channel MS-1248-M1

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Specification
| Brand | Multispan |
| Product Type | Temperature Scanner |
| Product Model | MS-1248-M1 |
| Display | Upper:4 Digit 7 Seg 0.56”,red LED display Lower:3 Digit 7 Seg 0.4”,green LED display |
| Input | J/K/Pt-100/3W (Selectable) |
| Output | 4 Relay,(NO-C-NC),1C/O,5A,230V AC & RS-485 |
| Power Supply | 100-270V AC,50/60 Hz,Approx 4VA |
| Temperature Range | J:0 To 600°C/K:0 To 1200°C/PT-100:-99 To 400°C/PT-1:-99.0 To 400.0°C |
| Operating Temperature | 0°C To 55°C |
| Relative Humidity | Up to 95% RH Non Condensing |
| Panel Cutout | 92 x 92 mm |
| Dimension (HxWxD) | 96 x 96 x 50 |
| Note | Actual product image may vary from that shown on the picture |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.6 x 9.6 x 5 |
| Unit of Measurement | 1 Piece |
| Weight | 1.2 kg |
| Generic Type | Temperature Scanner |
| Manufacturer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
| Packer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
| Country of Origin | India |
