SKU # 1000140313

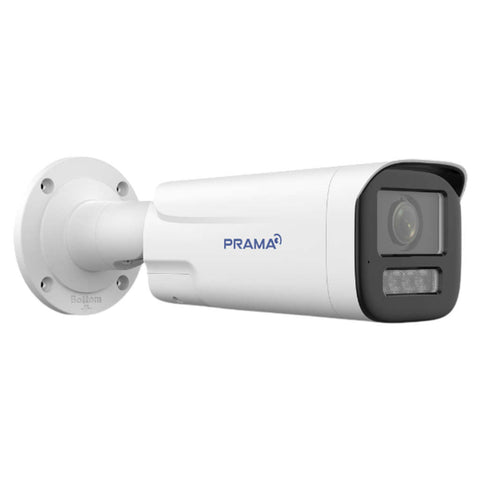

Prama 2 MP Dual Light Varifocal Bullet Network Camera PT-NC126D3-WNRAM(D2)
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
High-Quality Imaging
-
2MP resolution ensures superior image
-
Target Classification
-
Focus on human and vehicle classification based on advanced intelligent algorithms
-
Efficient Compression
-
Efficient H.265 compression technology saves bandwidth and storage
-
Superior Imaging in Backlight
-
Clear imaging against strong back light due to Digital WDR technology
-
Audio Security
-
Built-in microphone for real-time audio security
-
On-Board Storage
-
Supports storage up to 512 GB (SD card slot)
-
Motorized Focus Lens
-
2.8 to 12 mm motorized Varifocal lens for easy installation and monitoring
-
Durable Design
-
Water and dust resistant (IP67)
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
Prama |
|
Product Type |
Bullet Network Camera |
|
Product Model |
PT-NC126D3-WNRAM(D2) |
|
Camera |
|
|
Image Sensor |
1/2.9 inch Progressive Scan CMOS |
|
Maximum Resolution |
1920 × 1080 |
|
Minimum Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Shutter Time |
1/3 s to 1/100,000 s |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|
Lens |
|
|
Lens Type |
Motorized varifocal lens, 2.8 to 12 mm |
|
Focal Length & FOV |
2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7° |
|
Lens Mount |
Ø14 |
|
Iris Type |
Fixed |
|
Aperture |
F1.6 |
|
DORI |
|
|
DORI |
D: 45.7 to 141.4 m, O: 18.1 to 56.1 m, R: 9.1 to 28.3 m, I: 4.6 to 14.1 m |
|
Illuminator |
|
|
Supplement Light Type |
IR, White Light |
|
Supplement Light Range |
Up to 50 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
Video |
|
|
Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
H.264 Type |
Baseline Profile, Main Profile, High Profile |
|
H.265 Type |
Main Profile |
|
Bit Rate Control |
CBR, VBR |
|
Scalable Video Coding(SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Audio |
|
|
Audio Type |
Mono sound |
|
Environment Noise Filtering |
Yes |
|
Audio Sampling Rate |
8 kHz/16 kHz |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|
Audio Sampling Rate |
8 kHz/16 kHz |
|
Environment Noise Filtering |
Yes |
|
Network |
|
|
Protocols |
TCP/IP, UDP, Multicast, NTP, DDNS, SNMP, QoS, DHCP, IPv4, IPv6, DNS, HTTP, HTTPS, RTSP, SRTP/RTSPS, Bonjour, NAT, RTCP, UPnP, ONVIF, SSH, SMTP |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
ONVIF (Profile S, Profile G, Profile T) |
|
User/Host |
Up to 32 users3 user levels: administrator, operator, and user |
|
Security |
Password protection, complicated password, watermark, digest authentication for HTTP, WSSE and digest authentication for ONVIF, TLS1.3 |
|
Web Browser |
Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|
Image |
|
|
Wide Dynamic Range (WDR) |
Digital WDR |
|
SNR |
≥ 52 dB |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD/micro SDHC/micro SDXC card, up to 512 GB |
|
Built-in Microphone |
Yes, 1 built-in microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium |
|
Audio |
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|
Alarm |
1 input, 1 output (max. 12 VDC, 30 mA) |
|
Reset Key |
Yes |
|
Event |
|
|
Basic Event |
Motion detection (support alarm triggering by specified target types(person and vehicle)), video tampering alarm, exception |
|
Linkage |
Upload to FTP/SFTP/memory card, notify surveillance center, send email, trigger recording,trigger capture, audible warning, trigger alarm output |
|
General |
|
|
Power |
12 VDC ± 25%, 0.9 A, max. 10.8 W,Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 12.9 W |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
General Function |
Heartbeat, mirror, password reset via email, password protection, anti-banding |
|
Protection |
IP67 |
|
Flashing Light |
White Light |
|
Material |
Metal & Plastic |
|
Package Dimension |
315 mm × 137 mm × 141 mm (12.40 inch × 5.39 inch × 5.55 inch) |
|
Dimension |
Ø105 mm × 285.8 mm (Ø4.13 inch × 11.25 inch) |
|
With Package Weight |
Approx. 900 g |
|
Weight |
Approx. 570 g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) - L x B x H |
31.5 x 13.7 x 14.1 |
|
Unit of Measurement |
1 Piece |
|
Weight |
0.9 kg |
|
Generic Type |
Network Bullet Camera |
|
Manufacturer Details |
STAR TECH COMPUTER & SECURITY, P NO 21, SUDERSHANPURA INDUSTRIAL AREA NEAR 22 GODOWN, Jaipur, Rajasthan-302006, India, Phone: +91-8448233444 |
|
Packer Details |
STAR TECH COMPUTER & SECURITY, P NO 21, SUDERSHANPURA INDUSTRIAL AREA NEAR 22 GODOWN, Jaipur, Rajasthan-302006, India, Phone: +91-8448233444 |
|
Country of Origin |
India |
