SKU # 1000140307

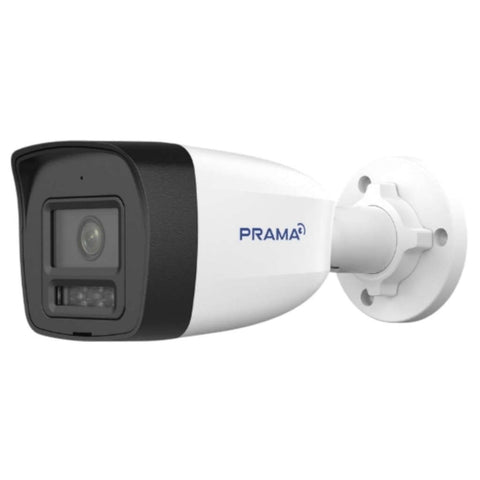

Prama 6 MP Smart Dual Light Fixed Bullet Network Camera With Mic PT-NC160D3-WNM(D2)
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
High-Quality Imaging
-
6MP resolution ensures superior image
-
Target Classification
-
Focus on human and vehicle classification based on advanced intelligent algorithms
-
Smart Dual Light
-
advanced technology with long range
-
Audio Security
-
Built-in microphone for real-time audio security
-
Efficient Compression
-
Efficient H.265 compression technology saves bandwidth and storage
-
Durable Design
-
Water and dust resistant (IP67)
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
| Brand | Prama |
| Product Type | Network Bullet Camera |
| Product Model | PT-NC160D3-WNM(D2) |
| Camera | |
| Image Sensor | 1/2.4 inch Progressive Scan CMOS |
| Maximum Resolution | 3200 × 1800 |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 4 mm |
| Focal Length & FOV | 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | |
| DORI | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw) 16 Kbps (G.722.1)/16 Kbps(G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network | |
| Security | Password protection, complicated password, watermark, digest authentication for HTTP, WSSE and digest authentication for ONVIF, TLS 1.3 |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile T] |
| Protocols | TCP/IP, UDP, Multicast, NTP, DDNS, SNMP, QoS, DHCP, IPv4, IPv6, DNS, HTTP, HTTPS, RTSP, SRTP/RTSPS, Bonjour, NAT, RTCP, UPnP, ONVIF, SSH, SMTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types(human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/SFTP, Send email, notify surveillance center, trigger capture |
| General | |
| Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Protection | IP67 |
| Material | Metal & Plastic |
| Package Dimension | 216 mm × 121 mm × 118 mm (8.5 inch × 4.8 inch × 4.6 inch) |
| Dimension | 185.8 mm × 66 mm × 69.1 mm (7.31 inch × 2.6 inch × 2.72 inch) |
| With Package Weight | Approx. 481 g |
| Weight | Approx. 285 g |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 21.6 x 12.1 x 11.8 |
| Unit of Measurement | 1 Piece |
| Weight | 0.481 kg |
| Generic Type | Network Bullet Camera |
| Manufacturer Details | STAR TECH COMPUTER & SECURITY, P NO 21, SUDERSHANPURA INDUSTRIAL AREA NEAR 22 GODOWN, Jaipur, Rajasthan-302006, India, Phone: +91-8448233444 |
| Packer Details | STAR TECH COMPUTER & SECURITY, P NO 21, SUDERSHANPURA INDUSTRIAL AREA NEAR 22 GODOWN, Jaipur, Rajasthan-302006, India, Phone: +91-8448233444 |
