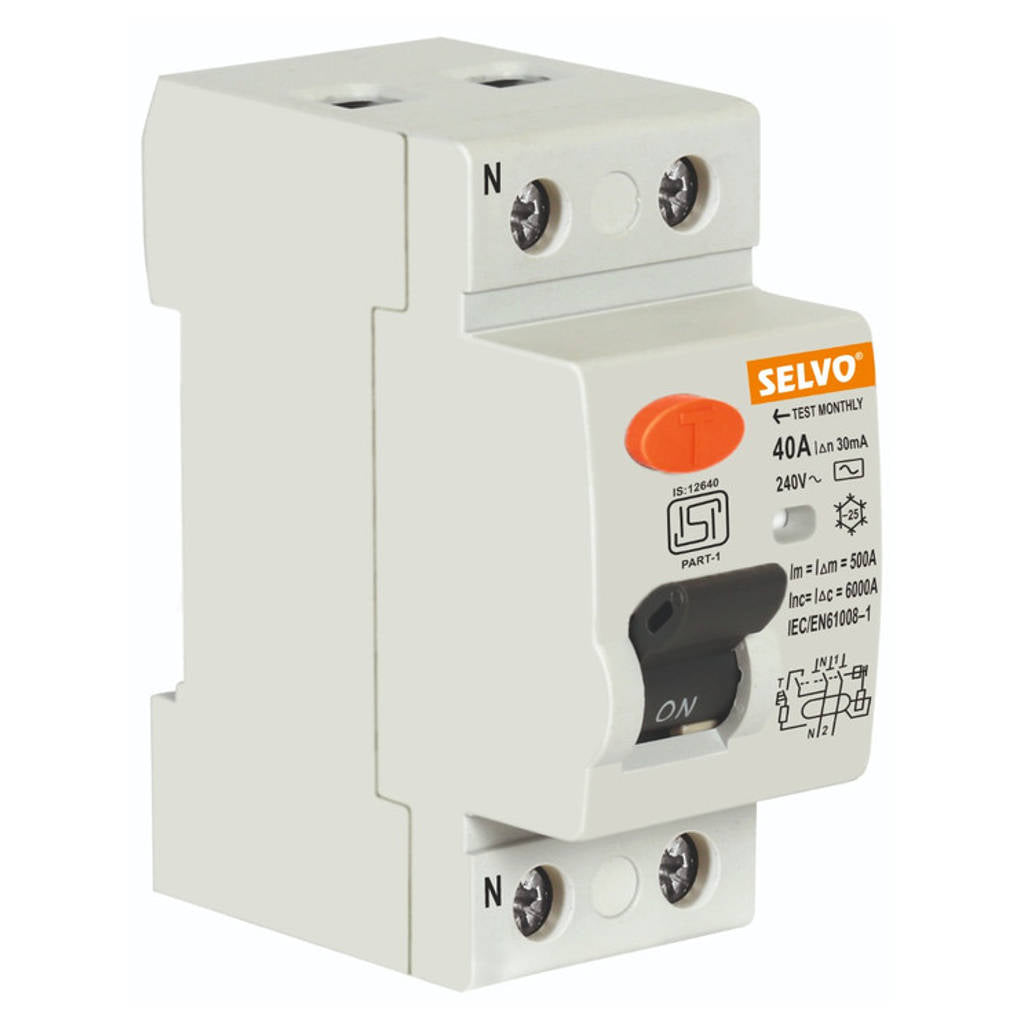

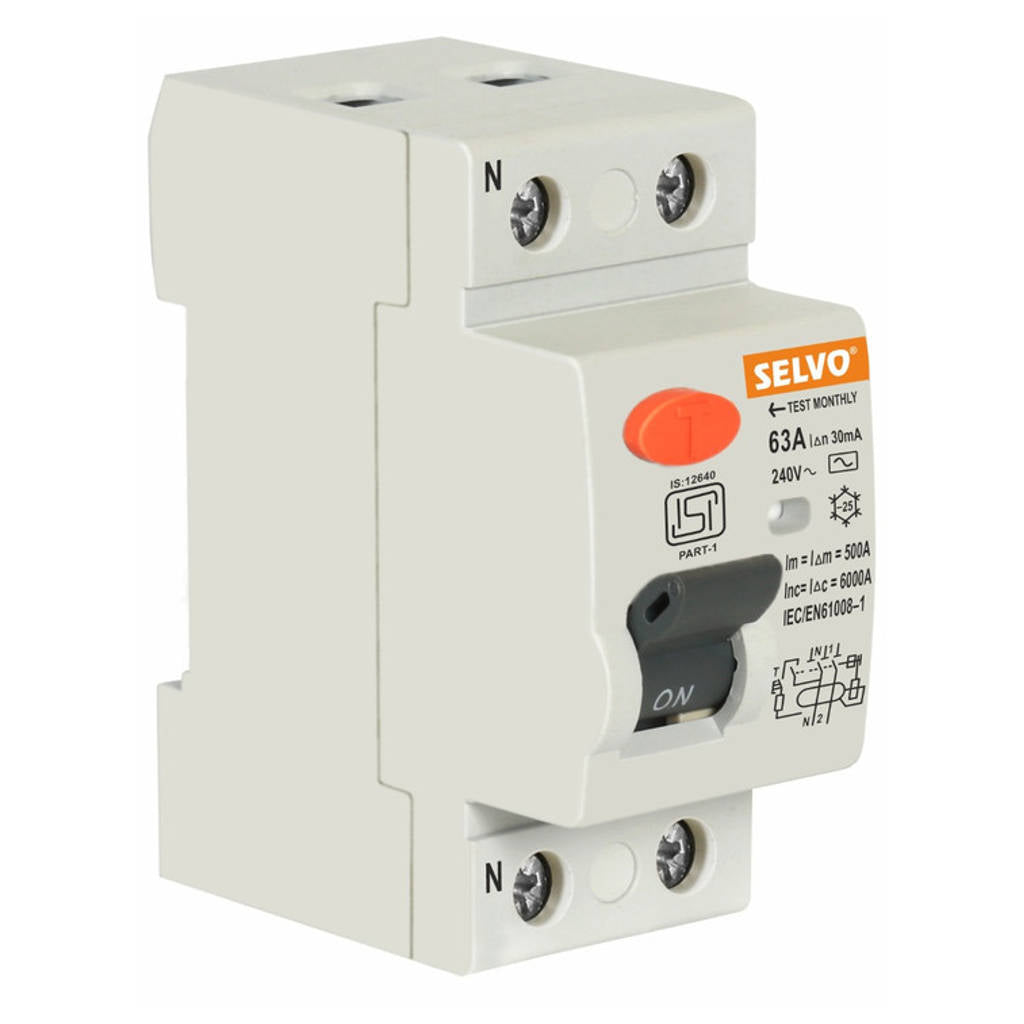

Selvo RCCB Double Pole 30mA 40-63A

Name: Selvo RCCB Double Pole 30mA 40-63A
Brand: Selvo
SKU: 1000102747
Price: 1170.0 INR
Availability: InStock

Visit the Selvo Store

₹ 7,020.00

Quantity



Pack Qty : 6

Delivery Availability

Ganesh Chaturthi Smart Deals

Use the coupon codes purchase of ₹3,000/- & above

Above ₹3,000 Use

GC100

Above ₹10,000 Use

GC200

Product Description

SELVO RCCB are fast acting safety devices to protect human life
They can quickly sense any imbalance in the current flow in the circuit and shut down the entire circuit
RCCB is designed in such a way that it continuously senses and compares differences (residual current value) in current values between the live and neutral wires
Any small change in the current value on account of such an event would trigger the RCCB to trip off the circuit
These devices must be used in series with an MCB or fuse which protects them from the potentially damaging thermal and dynamic stresses of any overcurrents
They also act as the main disconnecting switches upstream of any derived MCB
It can be easily mounted on Din channel (standard size 35 mm) using a bistable din clip Manufactured from High impact fire retardant thermoplastic material for extra strength & insulation High short circuit current withstand capacity & Dual protection
Lowest power concumption thus cost effective & energy saving Shrouded terminals are finger safe Test Button for regular inspection SELVO RCCB's are available in DP & FP versions with rated current as 40A & 63A and rated sensitivity as 30mA & 100mA

Product Specification

Brand	Selvo
Product Type	RCCB
Product Code \| Rated Current	GSELRCB13016 \| 40 A GSELRCB13018 \| 63 A
No Of Pole	Double Pole
Rated Frequency	50Hz
Case & Cover	Moulded, Flame-retardant Nylon material
Operating Device	Current operating device
Protection	Against earth fault/leakage Current
Dielectric Strength	2.5 KV
Rated Impulse Voltage (Uimp)	4 KV
Rated Insulation Voltage	660 Volt AC
Shortcircuit Breaking Capacity	6KA
Electrical/Mechanical Endurance (No. Of Operations)	10000
Tightening Torque	5 Nm
Terminal Capacity (max), Mim	35 sqmm
Degree Of Protection	IP 20
Trip Unit Technology	Electro-Mechanical
Ambient Temperature	-5°C 10 -55 C
Resistance To Humidity	95 %
Shack Resistance	40mm Free Fall
Voltage	240 V AC
Mounting	Clip on DIN Rail (35 mm x 7.5 mm)
Dimension	10x8x8 Cm
Weight	0.4 kg
Warranty	1 Year

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	2 Pole RCCBs
Manufacturer Details	Selvo Electricals India B-46, Sector 67, Noida (U.P) Email:sales@selvoelectricalsindia.com
Packer Details	Selvo Electricals India B-46, Sector 67, Noida (U.P) Email:sales@selvoelectricalsindia.com
Country of Origin	India
